Description

Price

11065

CAP

11065-S065

$6.77

13271

PLATE,BATTERY

13271-S049

Unavailable

13271A

PLATE,MOUNT ENGINE,RH

13271-S050

$40.81

13271B

PLATE,MOUNT ENGINE,LH

13271-S051

$36.99

13271C

PLATE,MOUNT ENGINE,UPP

13271-S052

Unavailable

32160B

FRAME-COMP,FR,M.G.GRAY

32160-S020-548

Unavailable

55020

GUARD,ENGINE

55020-S015

$39.21

92122

ROLLER

92122-S008

$61.40

92153

BOLT

92153-S012

$1.92

92153A

BOLT

92153-S108

$2.40

92153B

BOLT,BRUSH GUARD

92153-S220

$2.40

92153C

BOLT,CHAIN ROLLER

92153-S264

$4.60

92153F

BOLT,ENGINE PROTECTOR

92153-S286

$5.13

92153G

BOLT

92153-S397

$4.20

92153H

BOLT

92153-S402

$2.84

92200

WASHER,OIL PUMP DRIVEN

92200-S111

$2.42

32160C

FRAME-COMP,RR,S.SILVER

32160-S021-514

$388.86

32160D

FRAME-COMP,RR,S.SILVER

32160-S022-514

$388.86

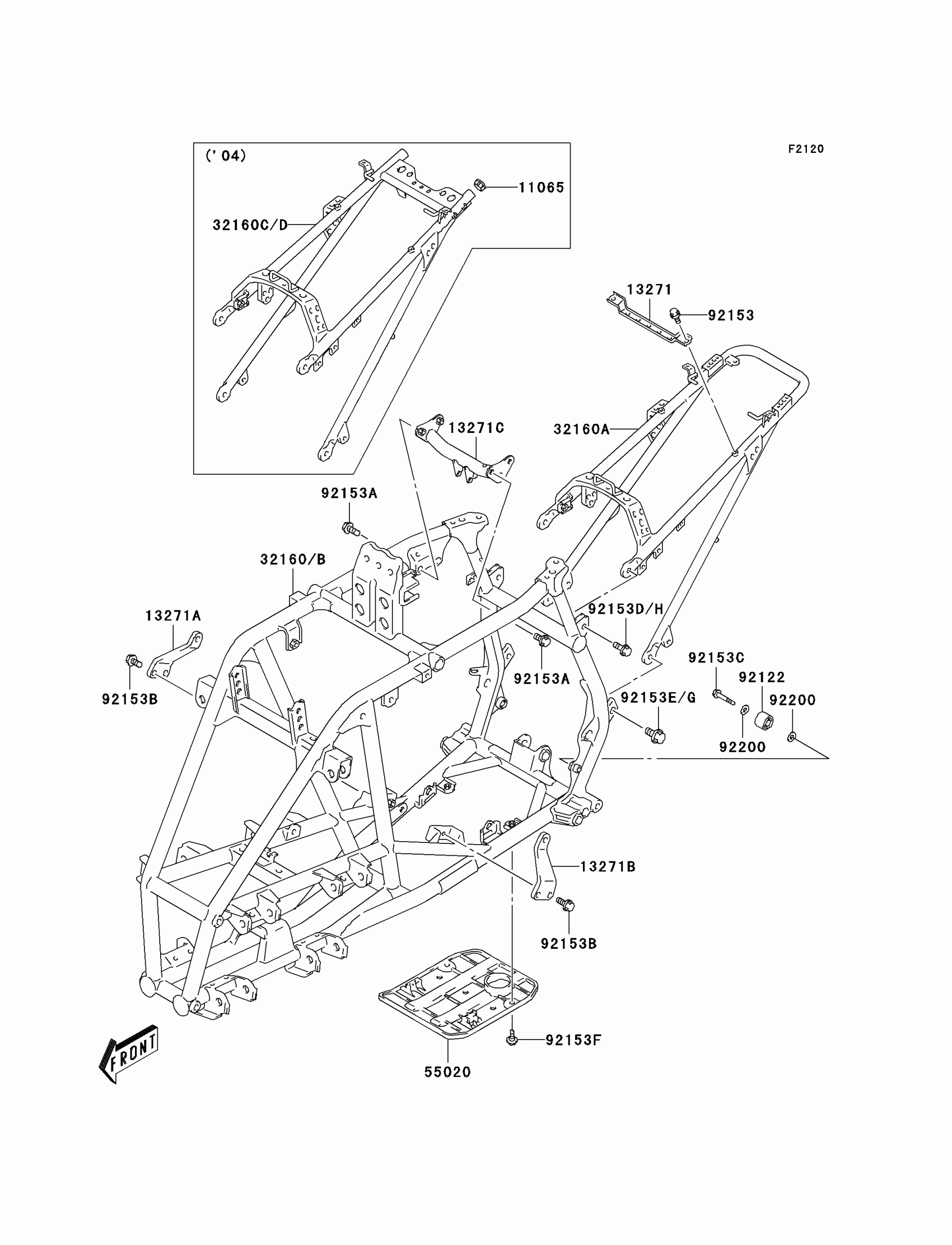

Kawasaki KFX400 Frame(A1/A2) Diagram

CAP

PLATE,BATTERY

PLATE,MOUNT ENGINE,RH

PLATE,MOUNT ENGINE,LH

PLATE,MOUNT ENGINE,UPP

FRAME-COMP,FR,M.G.GRAY

GUARD,ENGINE

ROLLER

BOLT

BOLT

BOLT,BRUSH GUARD

BOLT,CHAIN ROLLER

BOLT,ENGINE PROTECTOR

BOLT

BOLT

WASHER,OIL PUMP DRIVEN

FRAME-COMP,RR,S.SILVER

FRAME-COMP,RR,S.SILVER
