Description

Price

11065

CAP

11065-S065

$6.77

13271

PLATE,MOUNT ENGINE,RH

13271-S050

$40.81

13271A

PLATE,MOUNT ENGINE,LH

13271-S051

$36.99

13271B

PLATE,MOUNT ENGINE,UPP

13271-S083

Unavailable

13271C

PLATE,BATTERY

13271-S084

$16.13

32160

FRAME-COMP,FR,P.SILVER

32160-S027-909

$1,233.30

55020

GUARD,ENGINE

55020-S015

$39.21

92122

ROLLER

92122-S008

$61.40

92153

BOLT,BRUSH GUARD

92153-S220

$2.40

92153A

BOLT,CHAIN ROLLER

92153-S264

$4.60

92153B

BOLT,6X16

92153-S383

$3.28

92153C

BOLT

92153-S397

$4.20

92153D

BOLT

92153-S439

$5.13

92153E

BOLT

92153-S464

$4.29

92200

WASHER,OIL PUMP DRIVEN

92200-S111

$2.42

32160A

FRAME-COMP,RR,S.SILVER

32160-S028-514

$444.00

32160B

FRAME-COMP,RR,S.SILVER

32160-S029-514

Unavailable

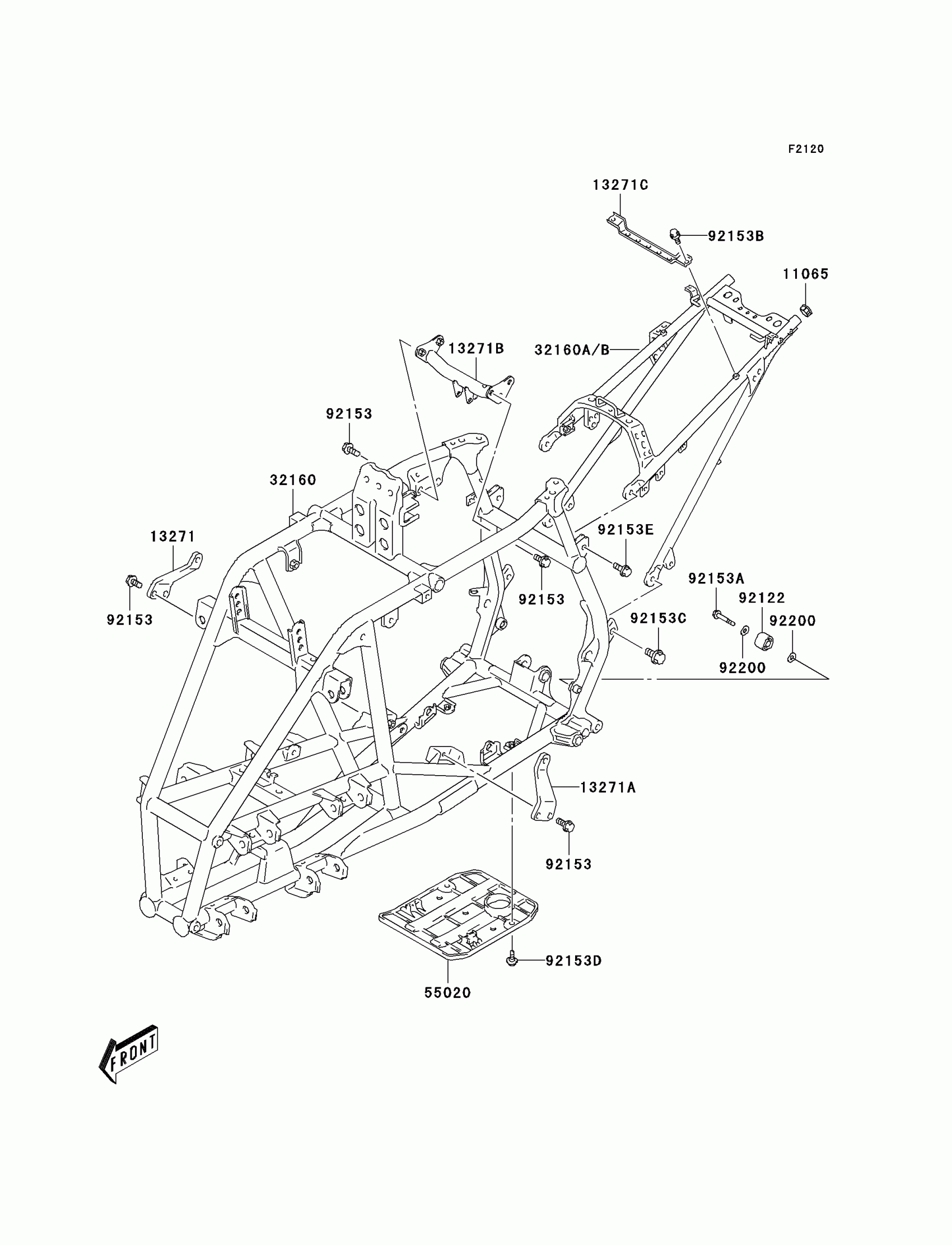

Kawasaki KFX400 Frame Diagram

CAP

PLATE,MOUNT ENGINE,RH

PLATE,MOUNT ENGINE,LH

PLATE,MOUNT ENGINE,UPP

PLATE,BATTERY

FRAME-COMP,FR,P.SILVER

GUARD,ENGINE

ROLLER

BOLT,BRUSH GUARD

BOLT,CHAIN ROLLER

BOLT,6X16

BOLT

BOLT

BOLT

WASHER,OIL PUMP DRIVEN

FRAME-COMP,RR,S.SILVER

FRAME-COMP,RR,S.SILVER
