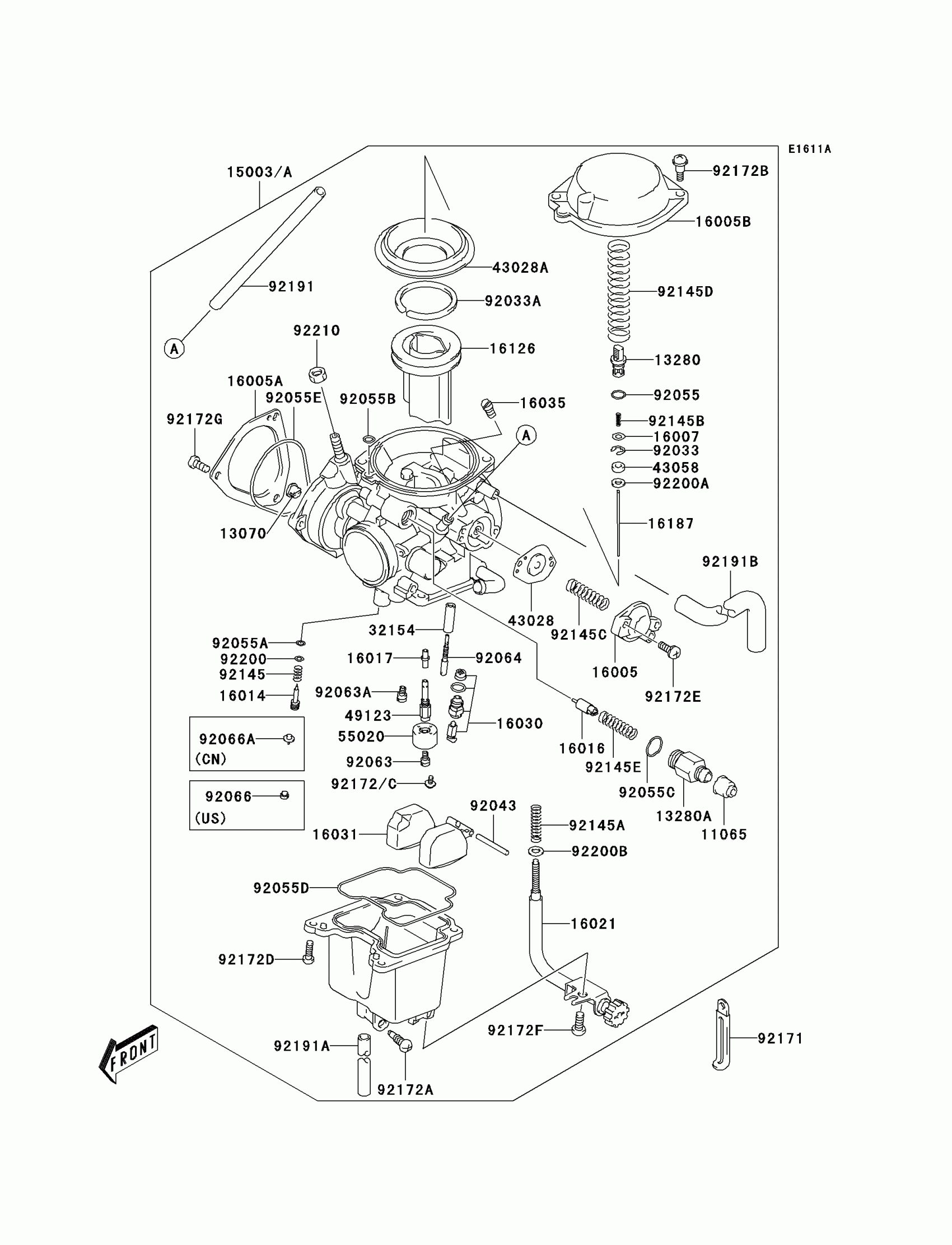

Kawasaki KFX400 Carburetor(A2) Diagram
#
11065
CAP
11065-S020
$3.40
13070
GUIDE
13070-S010
$9.27
13280
HOLDER
13280-S002
$7.23
13280A
HOLDER
13280-S038
$24.57
16005
TOP-CHAMBER
16005-S004
$32.44
16005A
TOP-CHAMBER,THROTTLE
16005-S005
$16.71
16005B
TOP-CHAMBER,DIAPHRAGM
16005-S006
$39.46
16007
SEAT-SPRING
16007-S005
$4.60
16014
SCREW-PILOT AIR
16014-S005
$12.11
16016
PLUNGER
16016-S007
$28.74
16017
JET-NEEDLE,P-0M
16017-S005
$45.29
16021
SCREW-THROTTLE STOP
16021-S005
$74.58
16030
VALVE-FLOAT
16030-S006
$69.72
16031
FLOAT
16031-S006
$34.57
16035
JET-AIR
16035-S006
$22.22
16126
VALVE
16126-S010
$68.73
16187
NEEDLE-JET,5E26-1
16187-S007
$18.86
32154
PIPE
32154-S004
$10.15
43028
DIAPHRAGM
43028-S008
$26.60
43028A
DIAPHRAGM
43028-S009
$35.60
43058
RING
43058-S001
$9.59
49123
HOLDER-MAIN JET
49123-S008
$30.73
55020
GUARD,JET
55020-S039
$32.51
92033
RING-SNAP,MULTIPLE JET
92033-S008
$2.15
92033A
RING-SNAP
92033-S041
$6.55
92043
PIN
92043-S034
$4.69
92055
RING-O,ID:4.8
92055-S003
$2.53
92055A
RING-O
92055-S013
$5.47
92055B
RING-O
92055-S044
$5.66
92055C
RING-O
92055-S048
$2.70
92055D
RING-O
92055-S058
$11.55
92055E
RING-O
92055-S065
$9.27
92063
JET-MAIN,#130
92063-S007
$16.59
92063A
JET-MAIN,#60
92063-S008
$16.59
92064
JET-PILOT,#22.5
92064-S008
$16.59
92145
SPRING,THROTTLE SCREW
92145-S010
$5.47
92145A
SPRING
92145-S095
$5.66
92145B
SPRING
92145-S097
$4.60
92145C
SPRING
92145-S098
$4.81
92145D
SPRING
92145-S099
$13.14
92145E
SPRING
92145-S109
$8.65
92171
CLAMP,L=45
92171-S132
$2.25
92172
SCREW
92172-S002
$1.92
92172A
SCREW,DRAIN
92172-S046
$6.99
92172B
SCREW
92172-S047
$3.53
92172C
SCREW
92172-S048
$4.22
92172D
SCREW
92172-S057
$1.97
92172E
SCREW
92172-S139
$3.45
92172F
SCREW
92172-S164
$1.74
92172G
SCREW
92172-S180
$1.90
92191
TUBE,5X9X175
92191-S054
$6.04
92191A
TUBE
92191-S058
$24.32
92191B
TUBE
92191-S059
$40.68
92200
WASHER
92200-S019
$2.15
92200A
WASHER
92200-S083
$4.10
92200B
WASHER
92200-S151
$3.53
92210
NUT
92210-S121
$3.61
15003
CARBURETOR-ASSY
15003-S015
$568.70
15003A
CARBURETOR-ASSY
15003-S016
$568.70
92066
PLUG
92066-S027
$5.83
92066A
PLUG
92066-S041
$5.01
