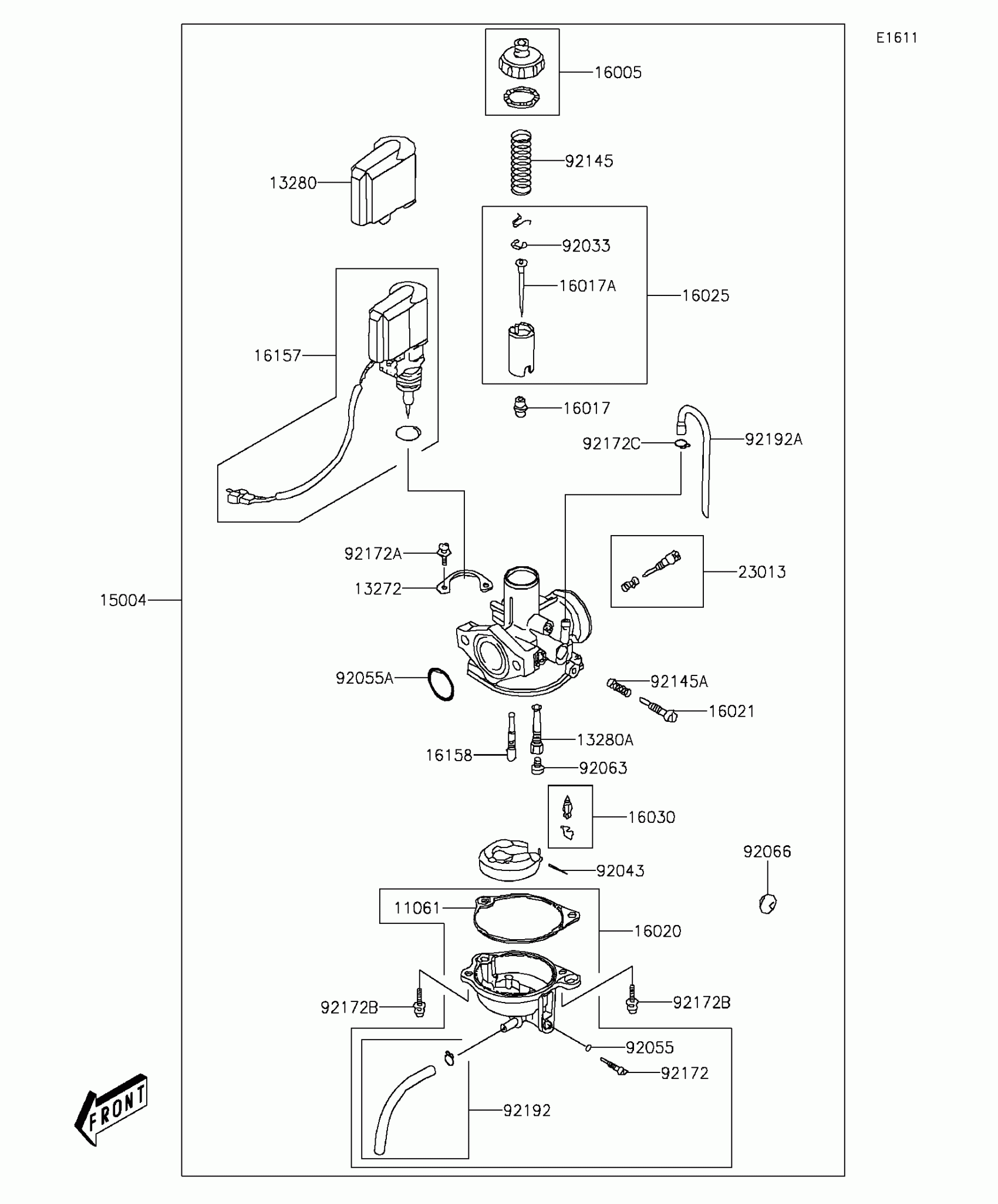

Kawasaki KFX™90 Carburetor(ACF) Diagram
#
Description
Price
11061
GASKET,FLOAT CHAMBER
11061-Y021
$3.94
13272
PLATE
13272-Y011
$2.02
13280
HOLDER,CAP
13280-Y008
$1.90
13280A
HOLDER,NEEDLE JET
13280-Y012
$55.86
15004
CARBURETOR-ASSY
15004-Y003
Unavailable
16005
TOP-CHAMBER
16005-Y001
$29.48
16017
JET-NEEDLE
16017-Y001
$33.66
16017A
JET-NEEDLE
16017-Y002
$35.91
16020
CHAMBER-FLOAT
16020-Y001
$101.58
16021
SCREW-THROTTLE STOP
16021-Y001
$3.54
16025
VALVE-THROTTLE
16025-Y001
$99.72
16030
VALVE-FLOAT,ASSY
16030-Y002
$18.69
16157
JET-STARTER
16157-Y001
$115.97
16158
JET-SLOW
16158-Y001
$14.87
23013
SCREW-ASSY,ADJUST
23013-Y001
$3.55
92033
RING-SNAP
92033-Y003
$1.87
92043
PIN
92043-Y002
$1.76
92055
RING-O
92055-Y001
$1.71
92055A
RING-O
92055-Y016
$1.76
92063
JET-MAIN
92063-Y001
$21.43
92066
PLUG
92066-Y008
$1.48
92145
SPRING
92145-Y002
$2.30
92145A
SPRING
92145-Y004
$0.79
92172
SCREW,DRAIN
92172-Y001
$4.66
92172A
SCREW
92172-Y012
$0.82
92172B
SCREW
92172-Y013
$0.71
92172C
CLAMP
92172-Y023
$1.29
92192
TUBE,ASSY
92192-Y006
$3.12
92192A
TUBE
92192-Y011
$5.18
