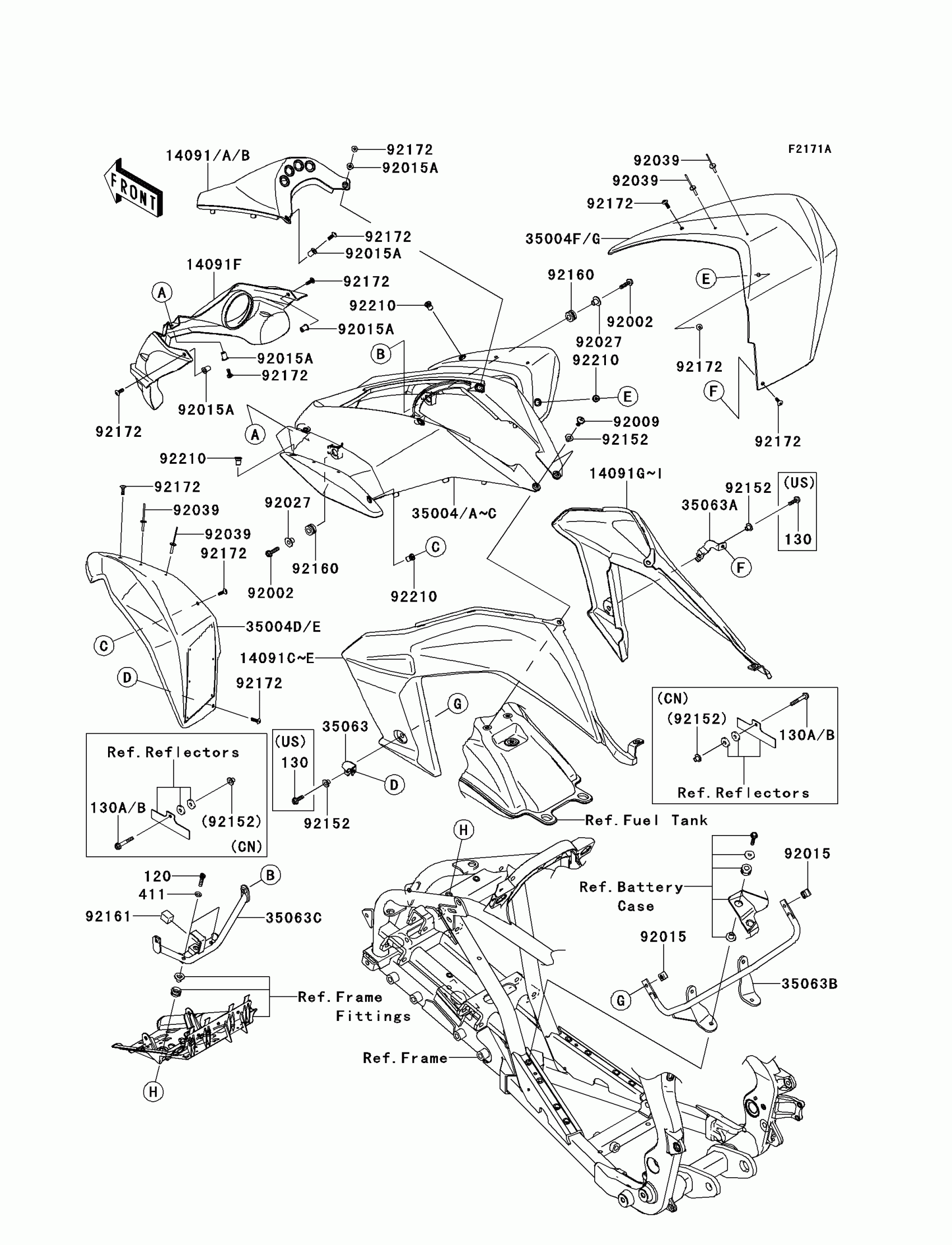

Kawasaki KFX®450R Front Fender(s)(B9F-BAF) Diagram
#
Description
Price
14091
COVER,MAINTENANCE,B.WHITE
14091-0554-266
$51.61
14091A
COVER,MAINTENANCE,S.RED
14091-0554-6B
$52.59
14091E
COVER,SIDE,LH,BLACK
14091-0555-839
$77.88
14091F
COVER,HEAD LAMP COVER,F.BLACK
14091-0557-6Z
$30.87
14091I
COVER,SIDE,RH,BLACK
14091-0793-839
$77.88
35004
FENDER-FRONT,MAIN,B.WHITE
35004-0067-266
$136.03
35004A
FENDER-FRONT,MAIN,L.GREEN
35004-0067-290
$142.41
35004D
FENDER-FRONT,OUTER,LH,L.GREEN
35004-0068-290
$93.45
35004E
FENDER-FRONT,OUTER,LH,BLACK
35004-0068-839
$89.18
35004F
FENDER-FRONT,OUTER,RH,L.GREEN
35004-0069-290
$93.45
35004G
FENDER-FRONT,OUTER,RH,BLACK
35004-0069-839
$89.18
35063
STAY,FRONT FENDER,LH
35063-0398
$10.47
35063A
STAY,FRONT FENDER,RH
35063-0399
$10.47
35063B
STAY,FRONT FENDER,OUTER
35063-0457
$49.94
35063C
STAY,FRONT FENDER,MAIN
35063-0548
$46.76
92002
BOLT,6X25
92002-1339
$4.45
92009
SCREW,6X18
92009-1663
Unavailable
92015
NUT,6MM
92015-1602
$7.34
92015A
NUT,WELL,5MM
92015-1757
$7.29
92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92039
RIVET
92039-0039
$3.90
92152
COLLAR,6.3X8.3X9.2
92152-0237
$5.65
92160
DAMPER,10X20X12
92160-1167
$4.69
92161
DAMPER
92161-0661
$2.21
92172
SCREW,5MM
92172-0292
$3.39
92210
NUT,WELL,5MM
92210-0370
$5.65
120
BOLT-SOCKET,6X25
120CA0625
$2.06
411
WASHER-PLAIN,6MM
411AA0600
$2.92
130
BOLT-FLANGED,6X20
130BA0620
$1.74
130B
BOLT-FLANGED,6X40
130CA0640
$2.80
