Description

Price

14091A

COVER,MAINTENANCE,BLACK

14091-0554-839

$49.25

14091D

COVER,SIDE,LH,BLACK

14091-0555-839

$77.88

14091E

COVER,HEAD LAMP COVER,F.BLACK

14091-0557-6Z

$30.87

14091H

COVER,SIDE,RH,BLACK

14091-0793-839

$77.88

35004B

FENDER-FRONT,MAIN,BLACK

35004-0067-839

$142.53

35004C

FENDER-FRONT,OUTER,LH,BLACK

35004-0068-839

$89.18

35004D

FENDER-FRONT,OUTER,RH,BLACK

35004-0069-839

$89.18

35063

STAY,FRONT FENDER,LH

35063-0398

$10.47

35063A

STAY,FRONT FENDER,RH

35063-0399

$10.47

35063B

STAY,FRONT FENDER,MAIN

35063-0426

$49.88

35063C

STAY,FRONT FENDER,OUTER

35063-0457

$49.94

92002

BOLT,6X25

92002-1339

$4.45

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,6MM

92015-1602

$7.34

92015A

NUT,WELL,5MM

92015-1757

$7.29

92015B

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92039

RIVET

92039-0039

$3.90

92152

COLLAR,6.3X8.3X9.2

92152-0237

$5.65

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER

92161-0661

$2.21

92172

SCREW,5MM

92172-0292

$3.39

92210

NUT,WELL,5MM

92210-0370

$5.65

130

BOLT-FLANGED,6X20

130BA0620

$1.74

130A

BOLT-FLANGED,6X30

130CA0630

$2.49

130A

BOLT-FLANGED,6X30

130CA0630

$2.49

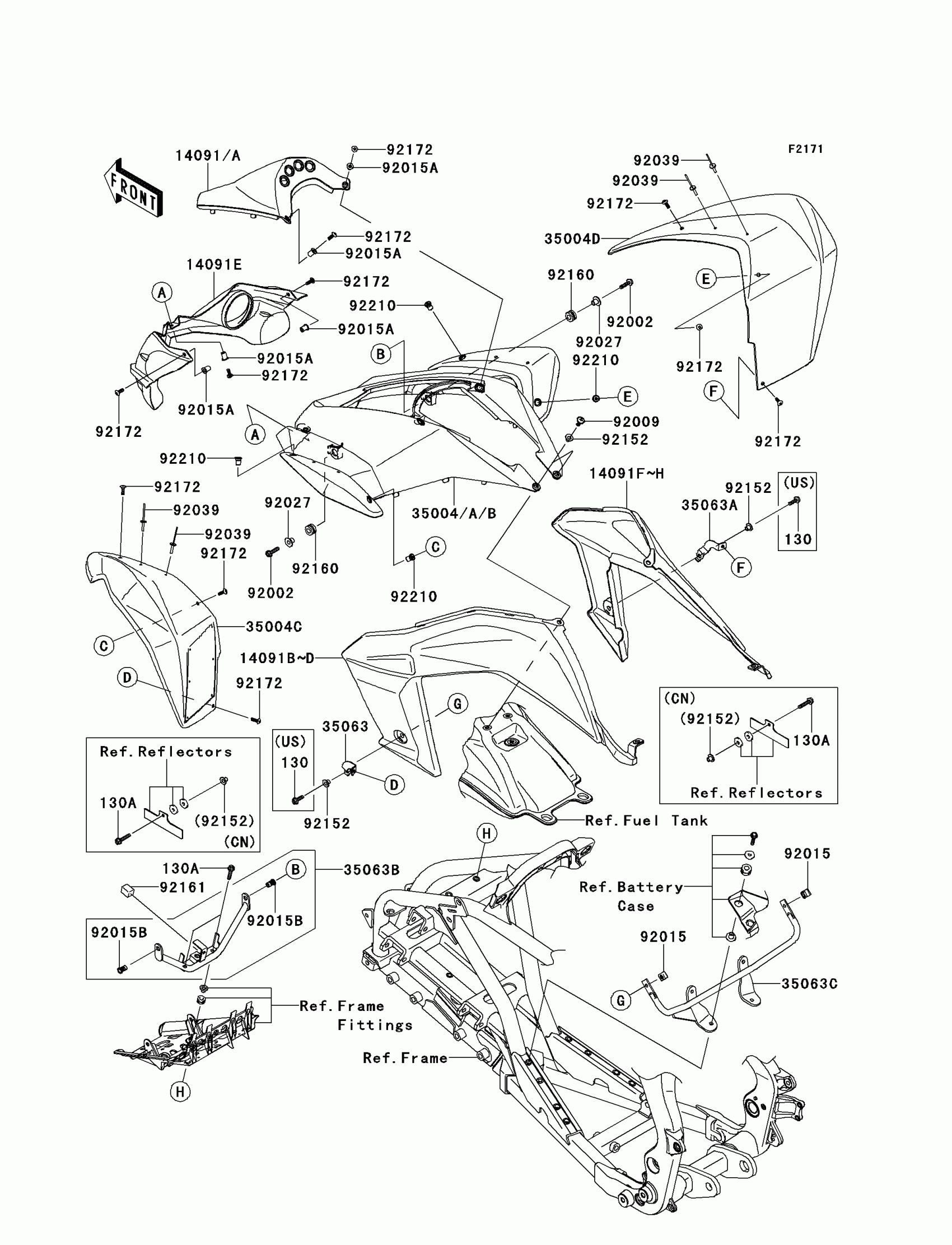

Kawasaki KFX®450R Front Fender(s)(B8F/B8FA) Diagram

COVER,MAINTENANCE,BLACK

COVER,SIDE,LH,BLACK

COVER,HEAD LAMP COVER,F.BLACK

COVER,SIDE,RH,BLACK

FENDER-FRONT,MAIN,BLACK

FENDER-FRONT,OUTER,LH,BLACK

FENDER-FRONT,OUTER,RH,BLACK

STAY,FRONT FENDER,LH

STAY,FRONT FENDER,RH

STAY,FRONT FENDER,MAIN

STAY,FRONT FENDER,OUTER

BOLT,6X25

SCREW,6X18

NUT,6MM

NUT,WELL,5MM

NUT,POP,6MM,L=16.5

COLLAR,FLANGED,L=12.1,BLACK

RIVET

COLLAR,6.3X8.3X9.2

DAMPER,10X20X12

DAMPER

SCREW,5MM

NUT,WELL,5MM

BOLT-FLANGED,6X20

BOLT-FLANGED,6X30

BOLT-FLANGED,6X30
