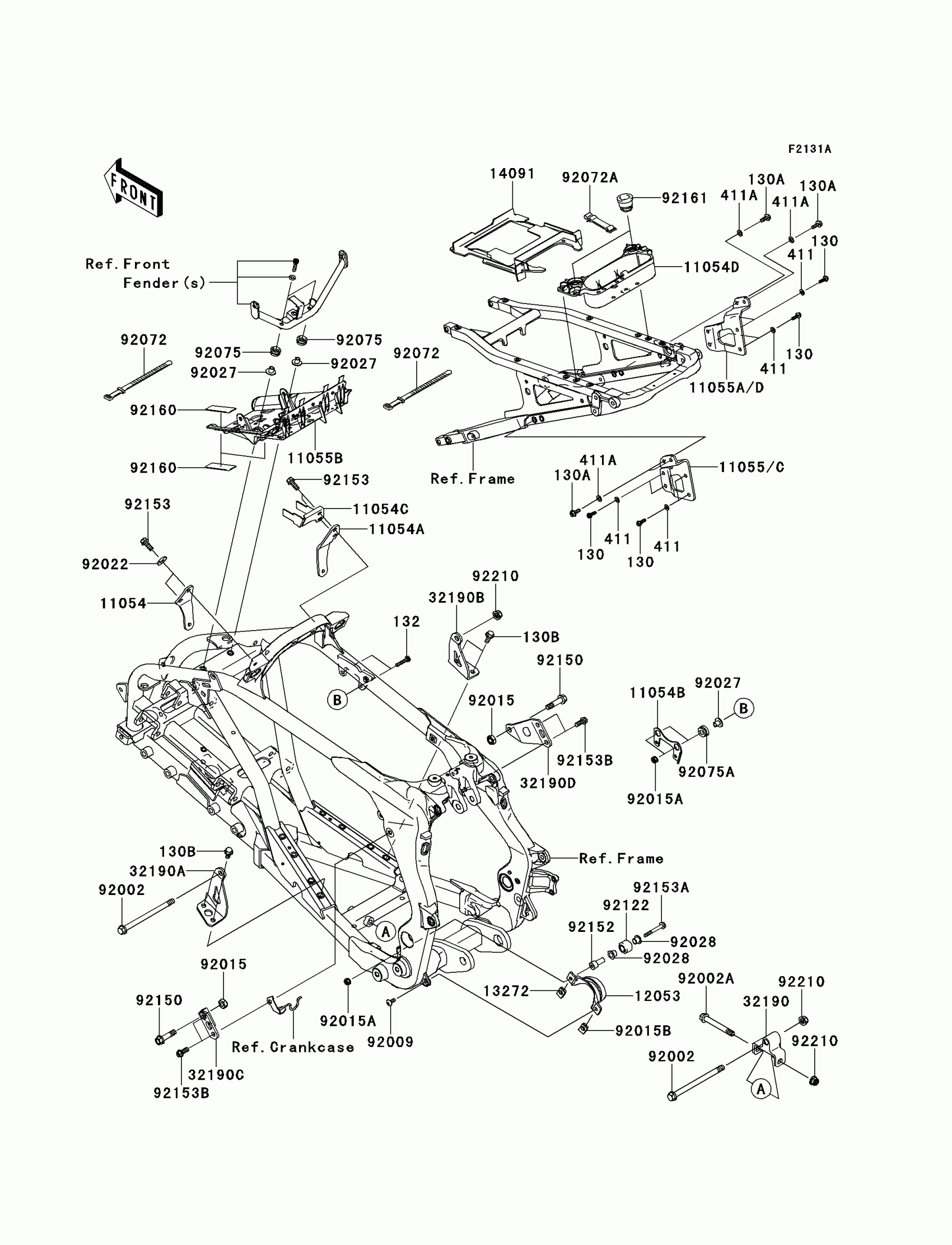

Kawasaki KFX®450R Frame Fittings(B9F/B9FB/BAF) Diagram
#
11054
BRACKET,PAD,UPP,LH
11054-0279
$24.30
11054A
BRACKET,PAD,UPP,RH
11054-0280
$24.30
11054B
BRACKET,IGNITION COIL
11054-1805
$24.30
11054C
BRACKET
11054-1819
$15.94
11054D
BRACKET,TOOL CASE
11054-1881
$22.30
11055
BRACKET,AIR CLEANER BOX,LH
11055-0070
$20.34
11055A
BRACKET,AIR CLEANER BOX,RH
11055-0071
$20.34
11055B
BRACKET,ELECTRIC
11055-1003
$35.51
12053
GUIDE-CHAIN
12053-0077
$33.04
13272
PLATE,CHAIN GUIDE
13272-0080
$4.09
14091
COVER,AIR CLEANER
14091-0744
$15.71
32190
BRACKET-ENGINE
32190-0281
$49.03
32190A
BRACKET-ENGINE,FR,LWR,LH
32190-0296
$33.35
32190B
BRACKET-ENGINE,FR,LWR,RH
32190-0297
$33.35
32190C
BRACKET-ENGINE,HEAD,LH
32190-0298
$33.35
32190D
BRACKET-ENGINE,HEAD,RH
32190-0299
$33.35
92002
BOLT,10X145
92002-1348
$18.57
92002A
BOLT,ARM,10MM
92002-1576
$5.86
92009
SCREW,6X15
92009-3830
$3.32
92015
NUT,LOCK,10MM,BLACK
92015-1189
$7.34
92015A
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015B
NUT,6MM
92015-1602
$7.34
92022
WASHER,8.4X23X2.5
92022-3744
$4.18
92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92028
BUSHING
92028-1507
$5.25
92072
BAND,L=186
92072-056
$5.00
92072A
BAND
92072-1085
$18.15
92075
DAMPER
92075-1634
$4.69
92075A
DAMPER
92075-277
$2.84
92122
ROLLER
92122-0020
$9.09
92150
BOLT,FLANGED,10X40
92150-1711
$12.35
92152
COLLAR
92152-0585
$10.79
92153
BOLT,8X20
92153-0892
$3.12
92153A
BOLT,6X50,WHITE
92153-0925
$5.92
92153B
BOLT,FLANGED,8X20
92153-0995
$4.86
92160
DAMPER
92160-1075
$6.57
92161
DAMPER
92161-0048
$6.37
92210
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
130
BOLT-FLANGED,5X16
130BA0516
$0.86
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,8X18
130CD0818
$3.12
132
BOLT-FLANGED-SMALL,6X30
132BA0630
$2.65
411
WASHER-PLAIN,5MM
411AA0500
$0.56
411A
WASHER-PLAIN,6MM
411AA0600
$2.92
