Description

Price

1

SHAFT,DRIVE,12T

13127-1006

Unavailable

2

2ND GEAR,DRIVE,17T

13129-1075

Unavailable

3

3RD GEAR,DRIVE,18T

13129-1212

Unavailable

3

3RD GEAR,DRIVE,18T

13129-1212

Unavailable

4

4TH GEAR,DRIVE,20T

13129-1143

Unavailable

5

TOP GEAR,DRIVE,25T

13129-1145

Unavailable

6

CIRCRIP TYPE-C,21MM

480J2100

$5.03

7

WASHER 22MM

92022-106

$4.60

8

WASHER,THRUST,16.5X28X1

92022-170

$9.28

9

SHAFT,OUTPUT

13128-1008

Unavailable

10

LOW GEAR,OUTPUT SHAFT

13129-051

Unavailable

11

2ND GEAR OUTPUT 28T

13129-1278

Unavailable

12

3RD GEAR,DRIVEN,22T

13129-1142

Unavailable

13

4TH GEAR,DRIVEN,19T

13129-1144

Unavailable

14

TOP GEAR,DRIVEN,20T

13129-1134

Unavailable

15

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

16

CIRCRIP TYPE-C,21MM

480J2100

$5.03

17

NUT,14M/M

92015-1062

Unavailable

18

UNAVAILABLE IN PRICE BOOK

920022-1087

Unavailable

19

WASHER,SPLINE

92022-1113

Unavailable

20

WASHER,THRUST,16.5X28X1

92022-170

$9.28

21

WASHER-LOCK

92024-031

$6.42

22

COLLAR,20X30X15

92027-1083

$13.84

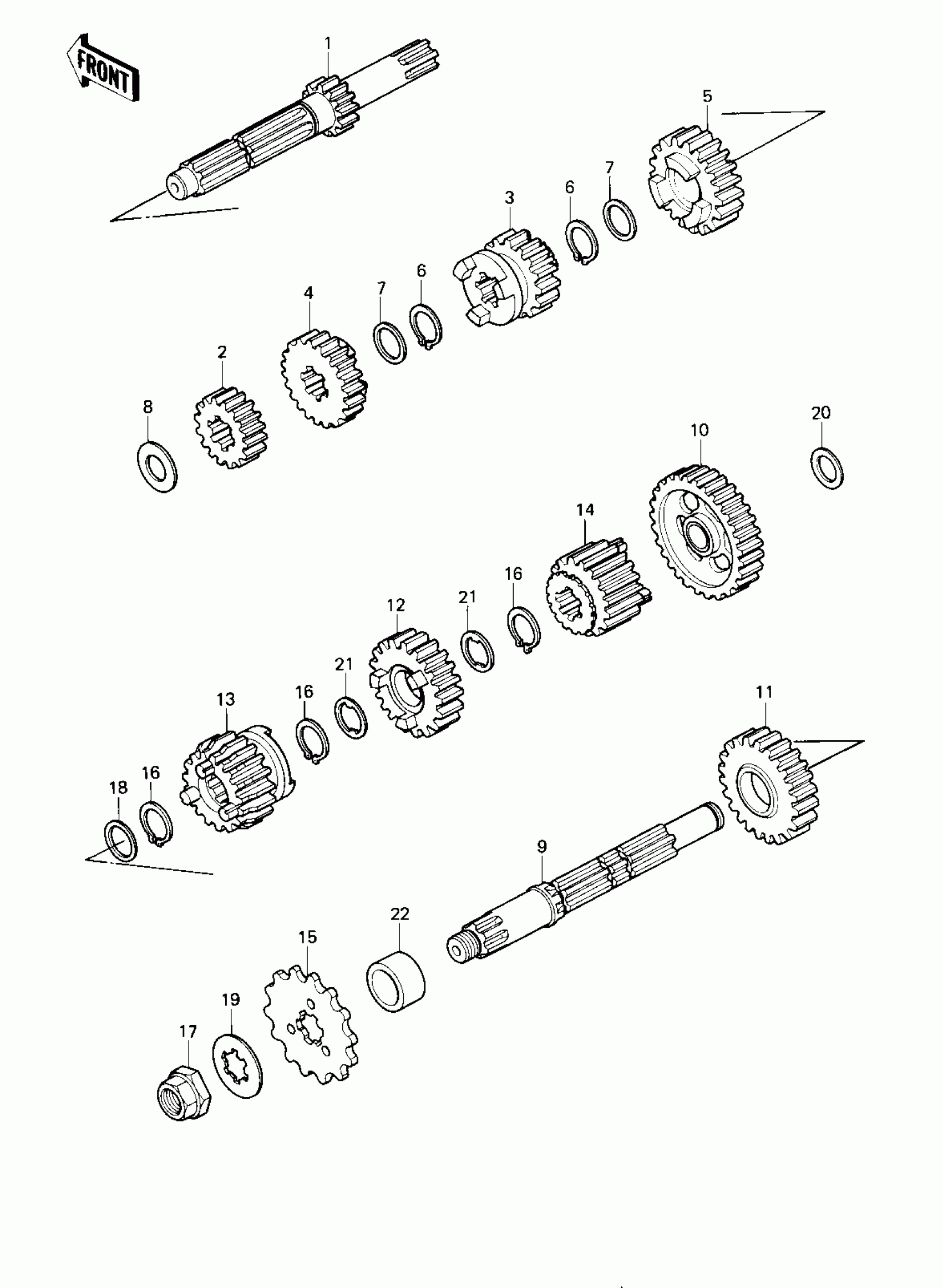

Kawasaki KE175 TRANSMISSION ('80-'81 KE175-D2/D3) Diagram

SHAFT,DRIVE,12T

2ND GEAR,DRIVE,17T

3RD GEAR,DRIVE,18T

3RD GEAR,DRIVE,18T

4TH GEAR,DRIVE,20T

TOP GEAR,DRIVE,25T

CIRCRIP TYPE-C,21MM

WASHER 22MM

WASHER,THRUST,16.5X28X1

SHAFT,OUTPUT

LOW GEAR,OUTPUT SHAFT

2ND GEAR OUTPUT 28T

3RD GEAR,DRIVEN,22T

4TH GEAR,DRIVEN,19T

TOP GEAR,DRIVEN,20T

SPROCKET-OUTPUT,14T

CIRCRIP TYPE-C,21MM

NUT,14M/M

UNAVAILABLE IN PRICE BOOK

WASHER,SPLINE

WASHER,THRUST,16.5X28X1

WASHER-LOCK

COLLAR,20X30X15
