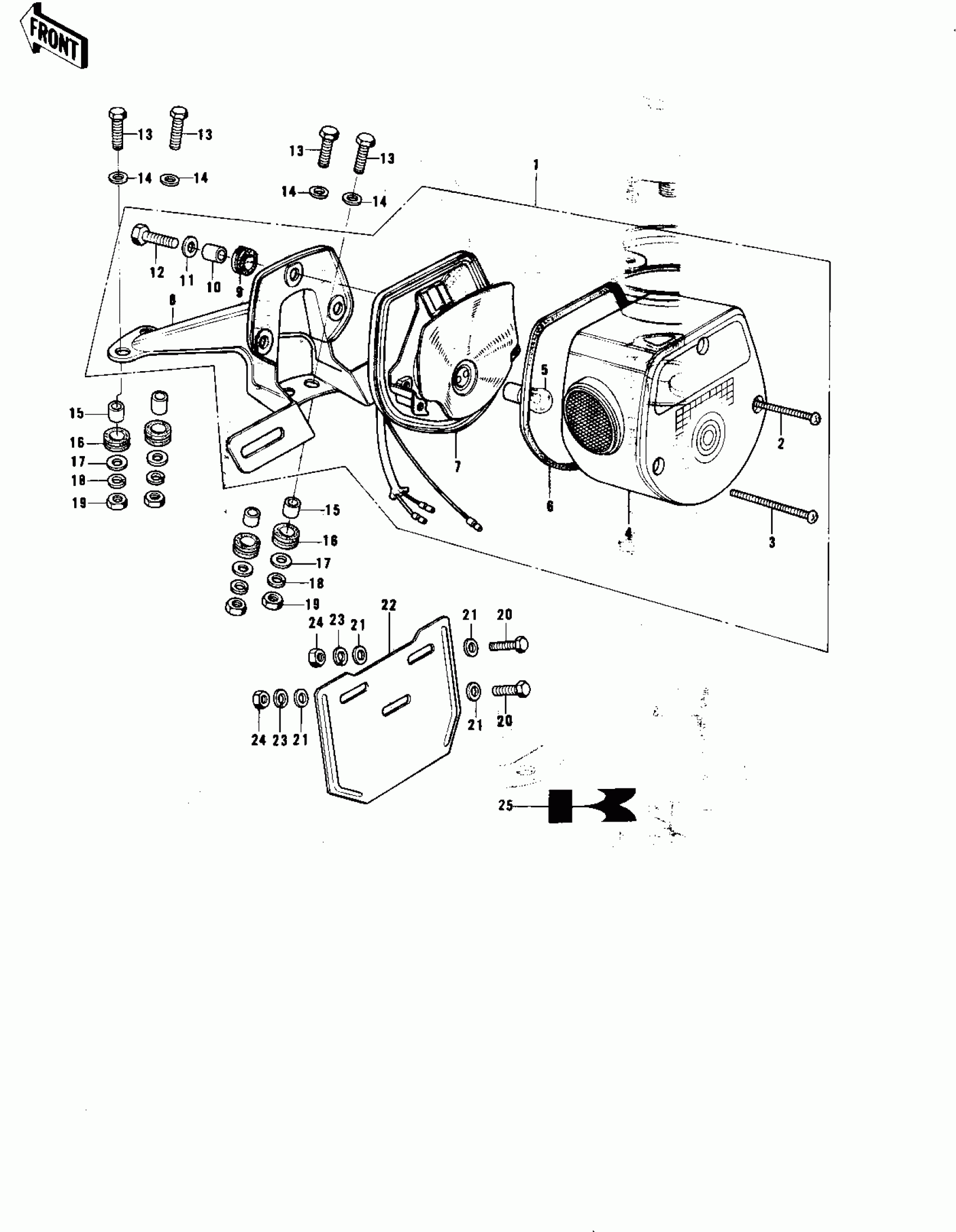

Kawasaki KE175 TAILLIGHT Diagram
#
Description
Price
1
LAMP ASSY,TAIL,BLACK
23024-048-21
Unavailable
2
SCREW
220R0455
Unavailable
3
SCREW PAN HEAD 4X50
220E0450
Unavailable
4
LENS,TAIL LAMP
23026-028
Unavailable
5
BULB,6V 32/3CP
92069-074
Unavailable
6
GASKET,TAIL LAMP LENS
23028-019
Unavailable
7
CASE,TAIL LAMP
23027-037
Unavailable
8
BKT,TAIL LAMP,BLACK
23036-037-21
Unavailable
9
DAMPER RUBBER
92075-076
Unavailable
10
COLLAR,6.8X10X8.5
92027-129
Unavailable
11
WASHER,6.5X20X1.6
92022-125
Unavailable
12
UNAVAILABLE IN PRICE BOOK
110B620
Unavailable
13
BOLT-UPSET
112G0630
Unavailable
14
WASHER,6.5X22X1.6
92022-237
Unavailable
15
COLLAR 6.8X10X10.5
92027-120
Unavailable
16
DAMPER RUBBER,RR FENR
92075-209
Unavailable
17
WASHER,6.5X20X1.6
92022-125
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
BOLT-UPSET,6X20
112G0620
Unavailable
21
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
22
BRACKET,LICENSE PLATE
11034-1117
Unavailable
23
WASHER SPRING 6MM
461F0600
Unavailable
24
NUT 6MM
311B0600
Unavailable
25
EMBLEM,LICNSE PLT BKT
56018-176
Unavailable
