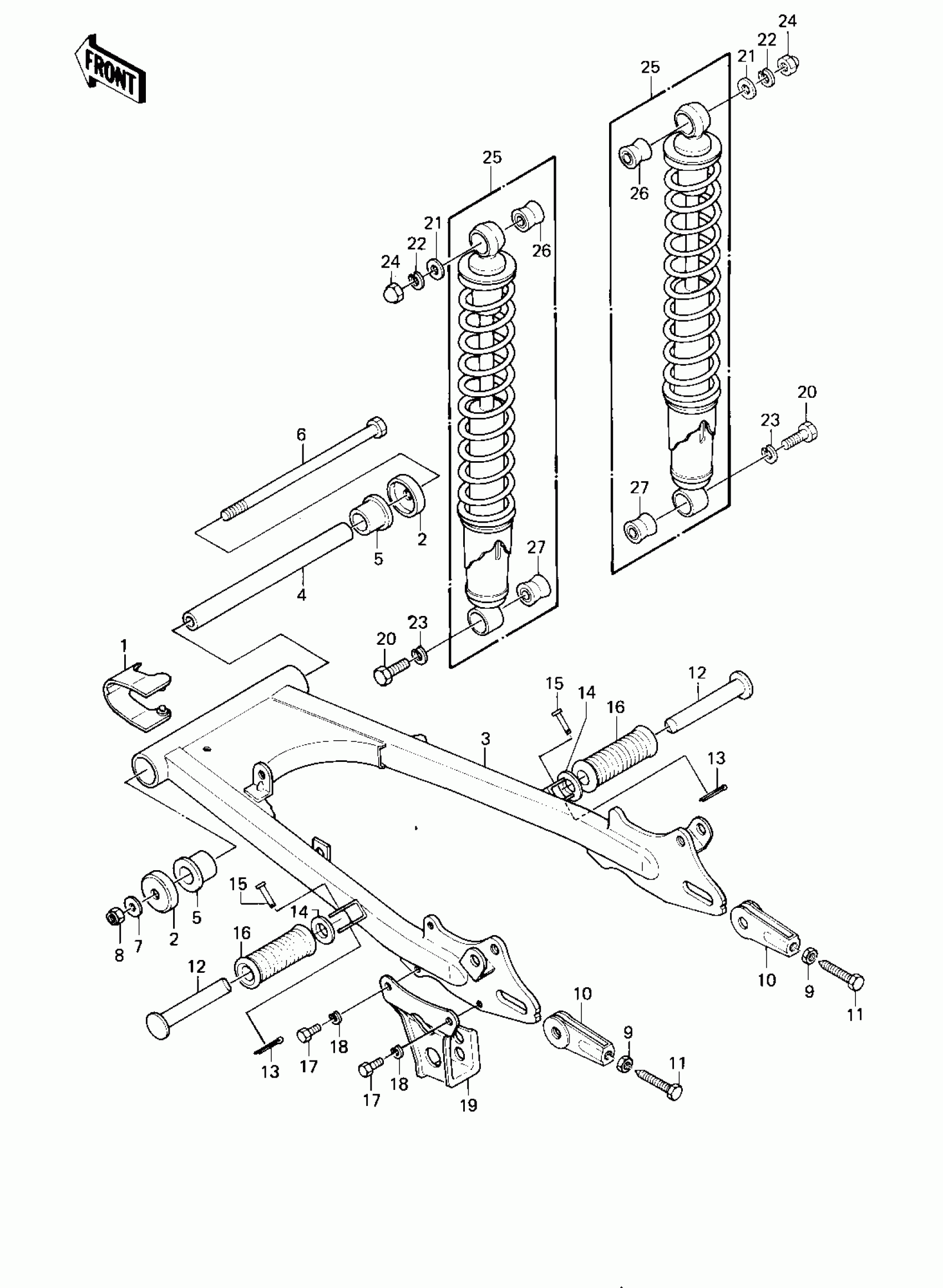

Kawasaki KE175 SWING ARM/SHOCK ABSORBERS ('80-'81 KE175 Diagram
#
Description
Price
1
GUARD,CHAIN,FR
55020-1063
Unavailable
2
CAP,SWING ARM
11012-1036
Unavailable
3
SWING ARM
33001-1061
$196.19
4
SLEEVE,SWING ARM
42036-1019
$57.80
5
BUSH,SWING ARM
92028-1027
Unavailable
6
SHAFT,SWING ARM
33032-1005
Unavailable
7
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
8
NUT-LOCK,12MM
92019-009
$7.29
9
NUT-HEX-SMALL,8MM
318B0800
$0.59
10
ADJUSTER,CHAIN
33040-1010
Unavailable
11
BOLT,8X50
92001-1399
$9.48
12
STEP,RR
34028-009
$26.11
13
PIN COTTER 2.0X15
550D2015
$1.04
14
WASHER-PLAIN (OPT)
92022-199
Unavailable
15
PIN,6X28
92043-1464
$8.10
16
RUBBER,REAR FOOTREST
92076-024
$24.87
17
BOLT-UPSET,6X12
112G0612
$1.45
18
WASHER SPRING 6MM
461F0600
$0.69
19
GUARD,CHAIN
55020-1026
$29.19
20
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
21
WASHER PLAIN 8MM
411B0800
$0.93
22
WASHER SPRING 8MM
461F0800
$0.40
23
WASHER SPRING 10MM
461F1000
$0.67
24
NUT-CAP-SMALL,8MM
323N0800
$4.60
25
SHOCK ABSBR RR
45014-1137
$212.35
25
SHOCK ABSBR RR
45014-1137
$212.35
26
BUSHING,SHOCK ABSORBE
92075-1217
$15.31
27
BUSHING,SHOCK ABSORBE
92075-1216
$10.02
