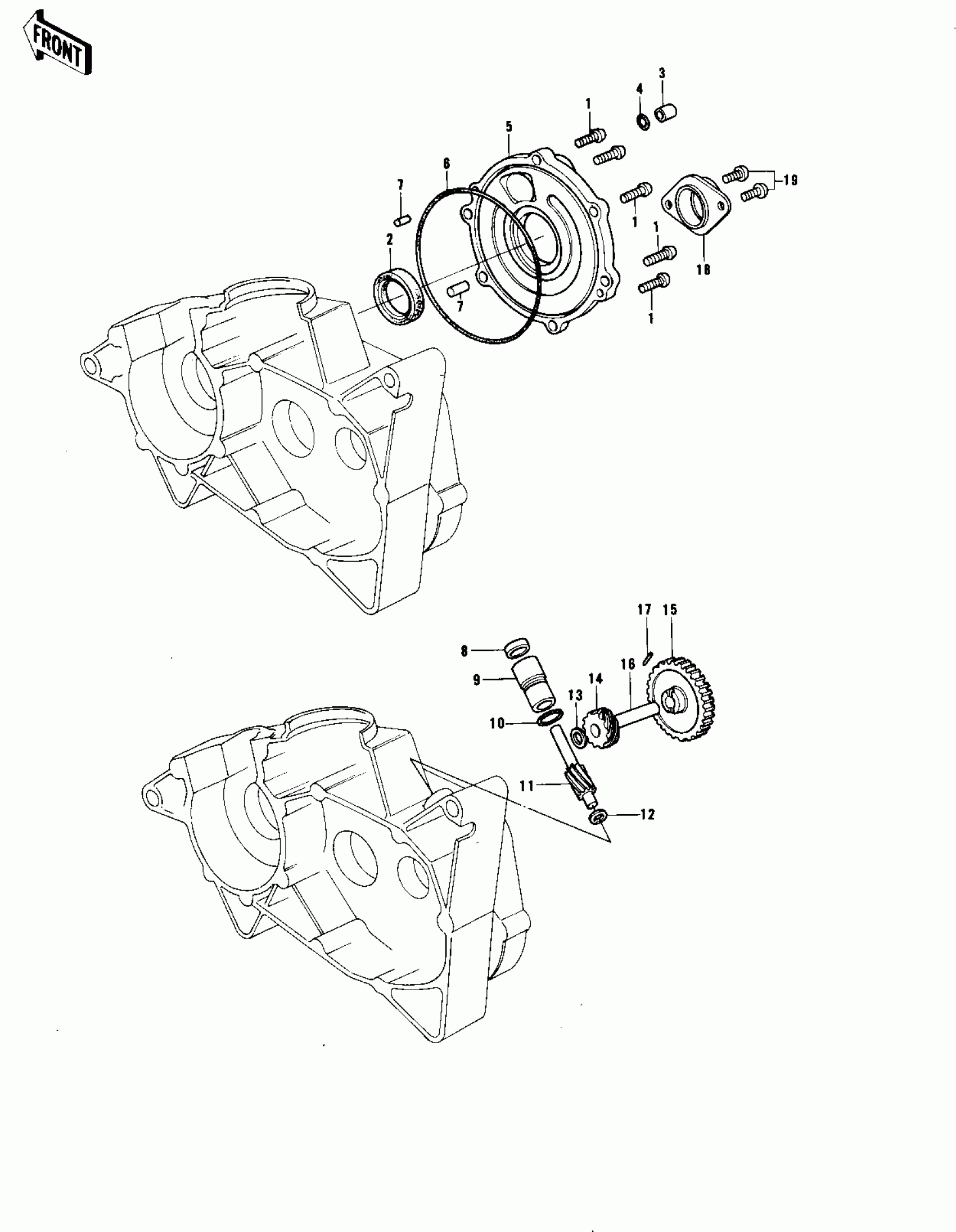

Kawasaki KE175 ROTARY VALVE COVER/TACH. DRIVE Diagram

#

Description

Price

1

SCREW-PAN-CROS,6X20,WHITE

220B0620

Unavailable

2

OIL SEAL TB32457

653B324507

Unavailable

3

COLLAR,VALU COVER

92027-243

Unavailable

4

"0" RING,CHECK VALVE

92055-037

Unavailable

5

COVER,ROTARY DISC VL

14019-053

Unavailable

6

"0" RING,120MM

92055-019

Unavailable

7

ROLLER,5X12

610A0512

Unavailable

8

OIL SEAL

92054-004

Unavailable

9

BUSH-TACHOMETER GEAR

92028-095

Unavailable

10

RING-O,12X1.5

92055-025

Unavailable

11

GEAR TACHOMETER

13223-003

Unavailable

12

WASHER THRUST

92026-026

Unavailable

13

WASHER THRUST

92026-025

Unavailable

14

GEAR-TACHOMETER

13224-007

Unavailable

15

GEAR-OIL PUMP

16085-016

Unavailable

16

SHAFT-OIL PUMP

16086-002

Unavailable

17

PIN,DOWEL

92042-035

Unavailable

18

HOLDER,CARBURETOR

16065-026

Unavailable

19

SCREW PAN HEAD 6X12

220B0612

Unavailable
