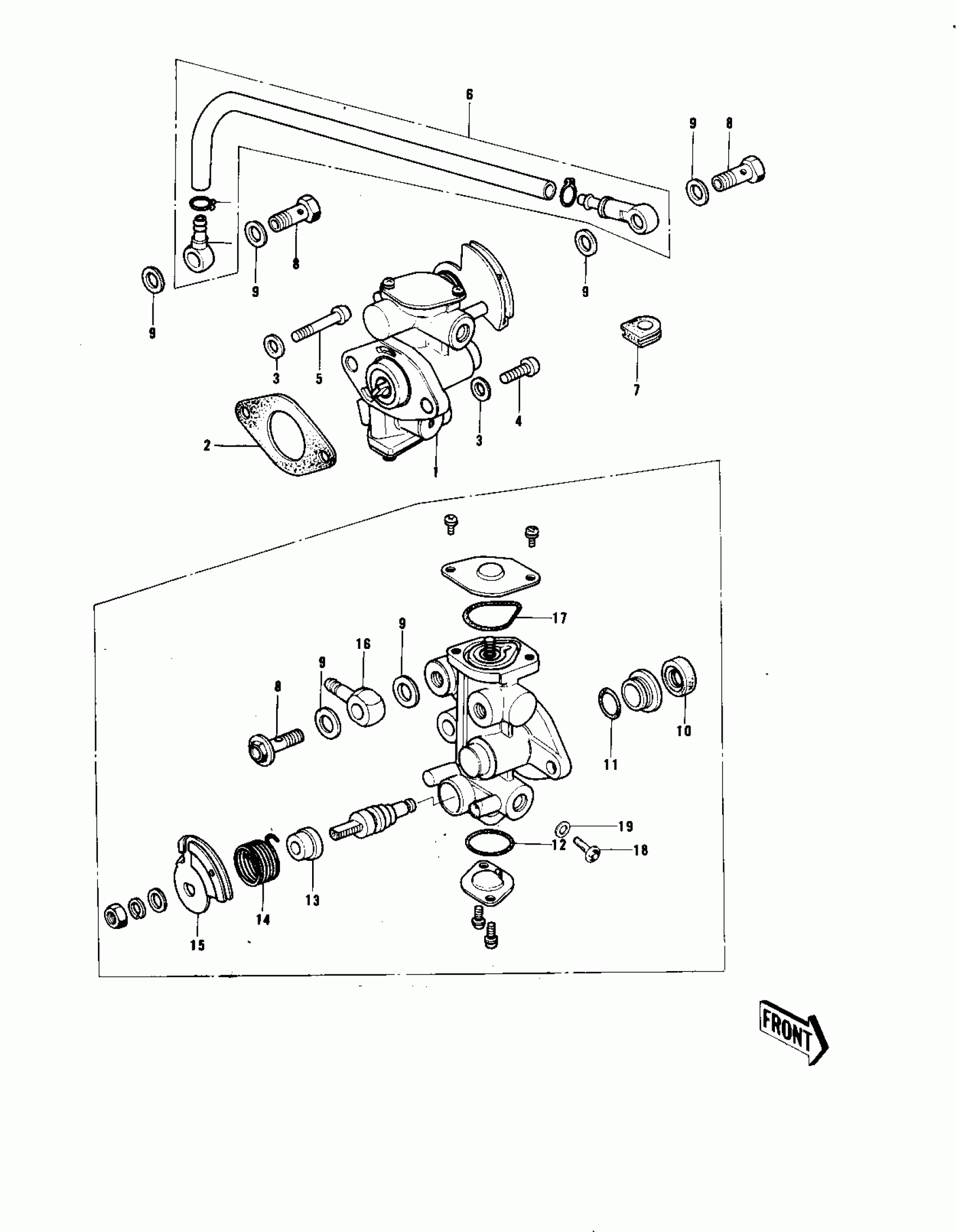

Kawasaki KE175 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
16082-068
Unavailable
1
OIL PUMP ASSY
16082-068
Unavailable
2
GASKET,OIL PUMP
11060-1160
Unavailable
3
WASHER,5.5X10.5X0.8
92022-037
Unavailable
4
SCREW-PAN-CROS
220B0514
Unavailable
5
SCREW-PAN-CROS
220B0528
Unavailable
6
PIPE ASSY,OIL
16134-028
Unavailable
7
GROMMET,OIL PUMP
92071-091
Unavailable
8
BOLT,BANJO,L=16
92060-013
Unavailable
9
WASHER OIL PUMP BANJO
92022-077
Unavailable
10
SEAL-OIL,OIL PUMP SHAFT
16091-001
Unavailable
11
RING-O,OIL PUMP SHAFT
16090-002
Unavailable
12
"0" RING,LOWER CAP
16090-003
Unavailable
12
RING-O,CAP,CAMSHAFT SIDE
16090-004
Unavailable
13
SEAL-OIL,CAMSHAFT,"X"TYPE
92049-1294
Unavailable
14
SPRING OIL PUMP LEVER
16093-004
Unavailable
15
LEVER-OIL PUMP CABLE
16096-007
Unavailable
16
FITTING,BANJO
92061-009
Unavailable
17
RING-O,CAP,BANJO SIDE
16088-002
Unavailable
18
BOLT,AIR VENT
92009-1010
Unavailable
19
WASHER
92022-1006
Unavailable
