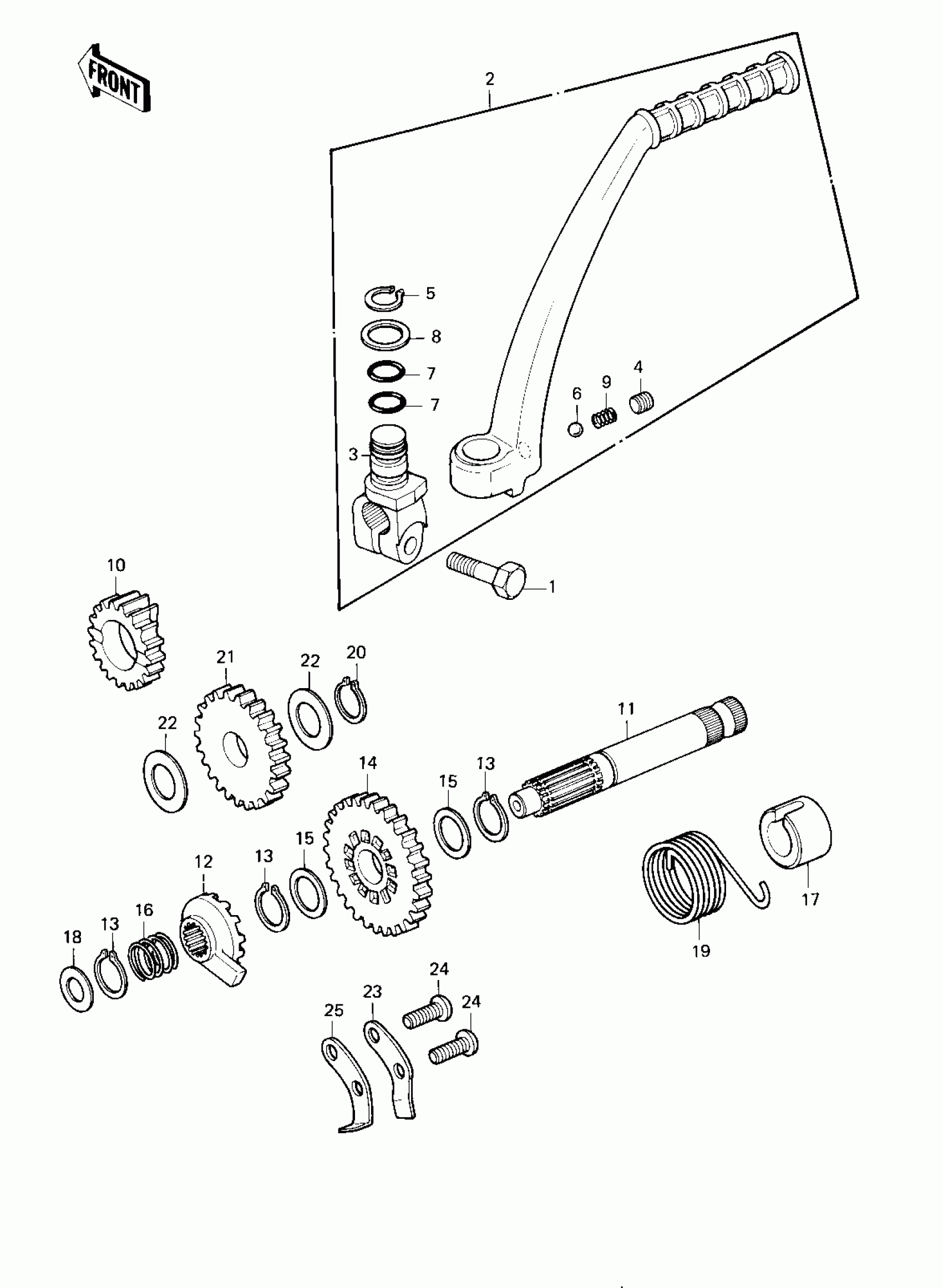

Kawasaki KE175 KICKSTARTER MECHANISM ('80-'81 KE175-D2/ Diagram
#
Description
Price
1
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
2
PEDAL ASSY,KICK
13064-1027
Unavailable
2
PEDAL ASSY,KICK
13064-1027
Unavailable
3
BOSS,KICK PEDAL
13061-5001
Unavailable
3
BOSS,KICK PEDAL
13061-5001
Unavailable
4
SCREW-SET-SOCKET,8X8
290Q0808
$4.78
5
CIR CLIP
482K0100
$0.70
6
BALL-STEEL,1/4
600A0800
$0.62
7
O RING,12MM
670B2012
$3.23
8
WASHER,15.2X20X1
92022-1019
$5.23
9
SPRING,KICK PEDAL
92081-020
$4.26
10
PINION-KICKSTARTER
13075-006
Unavailable
11
SHAFT,KICK
13066-1006
Unavailable
12
RATCHET
13078-1001
$59.54
13
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
14
GEAR,KICKSTARTER,34T
59051-1010
$46.65
15
WASHER,16.8X22X0.5
92022-315
$6.22
16
SPRING,RATCHET
92081-122
$8.79
17
GUIDE,KICK SPRING
13070-1007
$10.97
18
WASHER,12.3X20X0.5
92022-269
$1.25
19
SPRING,KICKSTARTER
92082-005
Unavailable
20
CIRCLIP-TYPE-C,15MM
480J1500
$2.31
21
GEAR,IDLE,29T
59051-1019
Unavailable
22
WASHER,16.5X28X0.5
92022-169
$5.00
23
GUIDE-KICK
13206-1002
Unavailable
24
SCREW-PAN-CROS,6X16
220B0616
$2.84
25
STOPPER,KICKSTARTER
32085-1027
$9.05
