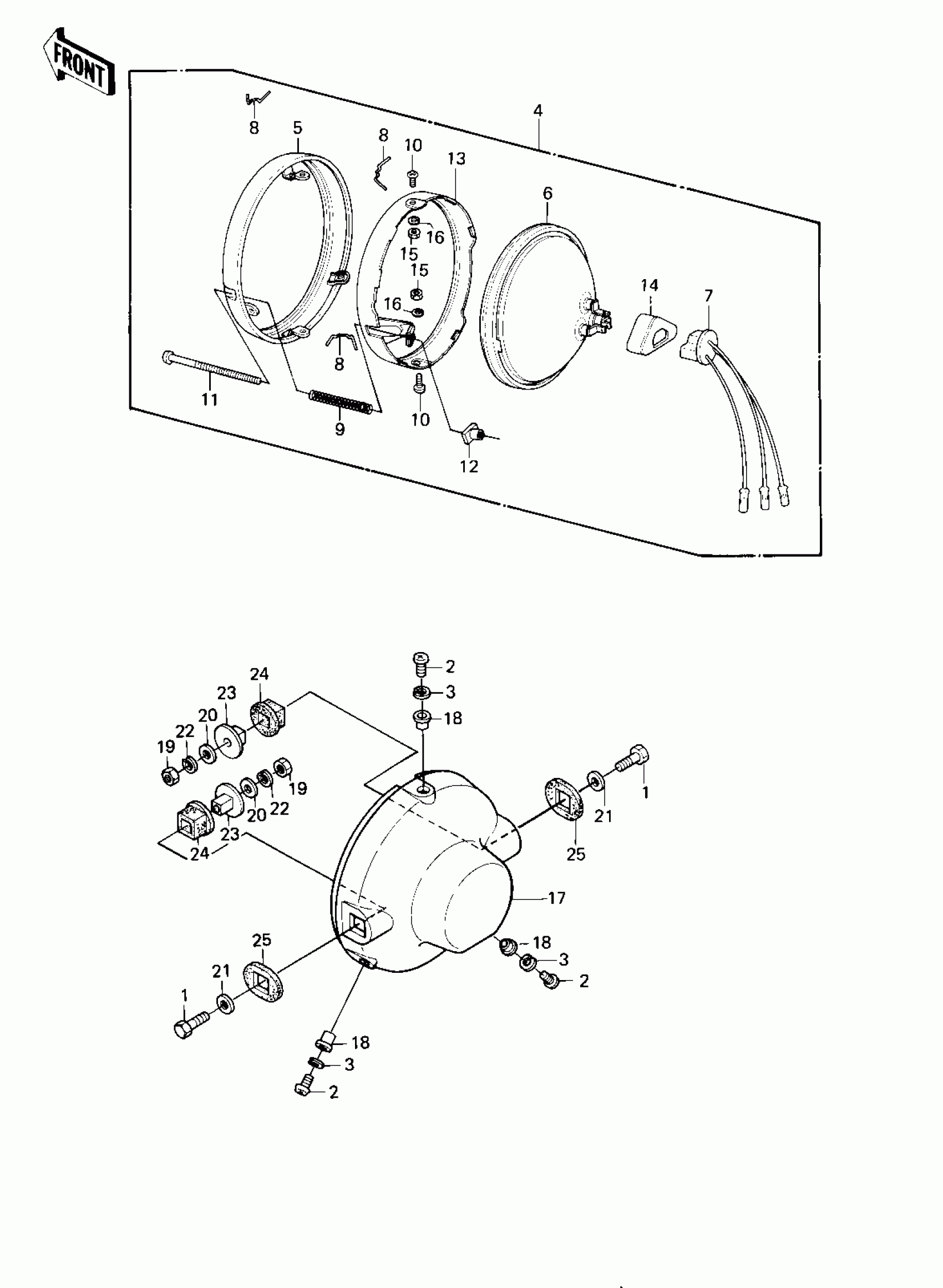

Kawasaki KE175 HEADLIGHT ('80-'81 KE175-D2/D3) Diagram

#

Description
Price

1

BOLT-SMALL,8X32

114N0832

$3.91

2

SCREW-PAN-CROS

220B0512

$0.47

3

WASHER SPRING 5MM

461F0500

$0.69

4

LAMP UNIT,HEAD

23004-1018

$179.62

5

RIM-LAMP

23006-1004

$72.77

6

SEALED BEAM UNIT

23007-073

Unavailable

7

SOCKET-ASSY,HEAD LAMP

23008-044

$22.32

8

SPRING,HEAD LAMP LENS

23009-015

$5.44

9

SPRING,FOCUS ADJUSTING

23014-012

$5.88

10

SCREW,LENS FITTING

23019-026

$4.51

11

SCREW,FOCUS ADJUSTING

23019-027

$4.51

12

NUT,ADJUSTING

23020-012

$3.91

13

RETAINER,SEALED BEAM

23072-002

$39.06

14

COVER,HEAD LAMP SOCKET

23081-001

$8.08

15

NUT-HEX

311B0400

$0.52

16

WASHER SPRING 5MM

461F0500

$0.69

17

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

Unavailable

18

WASHER

23021-010

$4.31

19

NUT-HEX-SMALL,8MM

317B0800

$0.67

20

WASHER PLAIN 8MM

411B0800

$0.93

21

WASHER-PLAIN,8MM

411D0800

$3.09

22

WASHER SPRING 8MM

461F0800

$0.40

23

COLLAR,L=15.6

92027-1105

$7.62

24

DAMPER,HEAD LAMP

92075-1077

$7.22

25

DAMPER,HEAD LAMP

92075-1078

$5.59
