Description

Price

1

FORK,SHIFT,LOW,2ND,3R

13140-1013

Unavailable

2

FORK,SHIFT 4TH&TOP

13140-1014

Unavailable

3

ROD-SHIFT,10X102

49047-1060

$16.46

4

DRUM ASSY,GEAR CHANGE

13239-1029

Unavailable

4

DRUM ASSY,GEAR CHANGE

13239-1039

Unavailable

5

HOLDER,CHANGE DRM PIN

13091-1070

Unavailable

5

HOLDER,DRUM PIN

13091-1082

Unavailable

6

SCREW PAN HEAD 6X30

220B0630

$3.41

6

BOLT-SOCKET,6X30

120S0630

$2.95

7

PIN,DOWEL,4X14.8

92042-042

$4.39

8

PLATE CHANGE DRUM PIN

13142-008

Unavailable

9

ROLLER,4X6

610A0406

$4.31

10

BEARING-BALL,#6905

92045-036

$27.88

10

BEARING-BALL,#6004C3

601B6004

$12.47

11

ROTOR,TOP & NEUTRAL

21007-1003

$7.62

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

13

SCREW-PAN-CROS,6X16

220B0616

$2.84

14

GASKET,NEUTRAL SWITCH

13146-002

$4.35

15

SWITCH,NEUTRAL

13151-1001

$14.51

16

SCREW-PAN-CROS,6X16

220B0616

$2.84

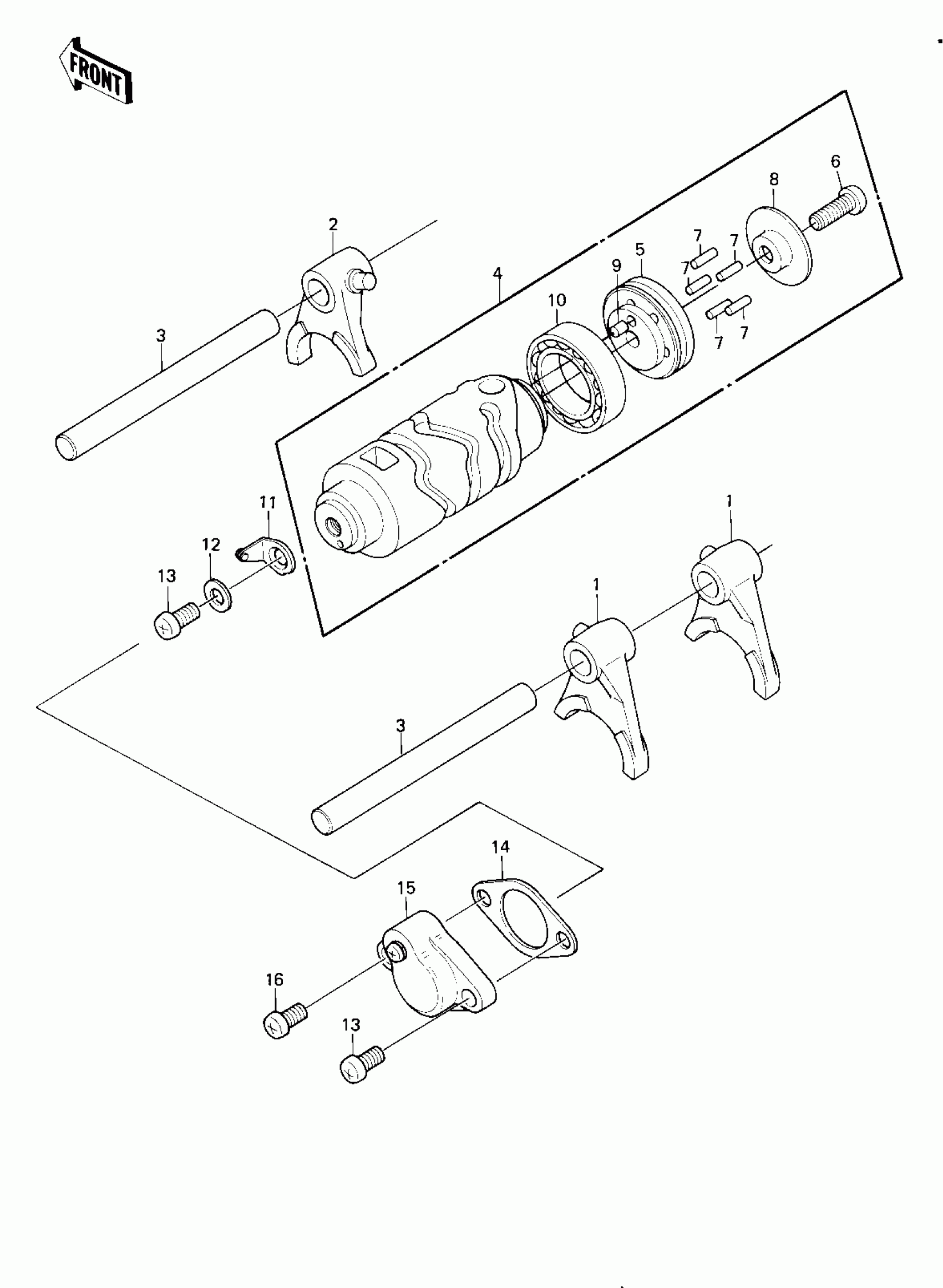

Kawasaki KE175 GEAR CHANGE DRUM & FORKS ('80-'81 KE175- Diagram

FORK,SHIFT,LOW,2ND,3R

FORK,SHIFT 4TH&TOP

ROD-SHIFT,10X102

DRUM ASSY,GEAR CHANGE

DRUM ASSY,GEAR CHANGE

HOLDER,CHANGE DRM PIN

HOLDER,DRUM PIN

SCREW PAN HEAD 6X30

BOLT-SOCKET,6X30

PIN,DOWEL,4X14.8

PLATE CHANGE DRUM PIN

ROLLER,4X6

BEARING-BALL,#6905

BEARING-BALL,#6004C3

ROTOR,TOP & NEUTRAL

WASHER-PLAIN-SMALL,6MM

SCREW-PAN-CROS,6X16

GASKET,NEUTRAL SWITCH

SWITCH,NEUTRAL

SCREW-PAN-CROS,6X16
