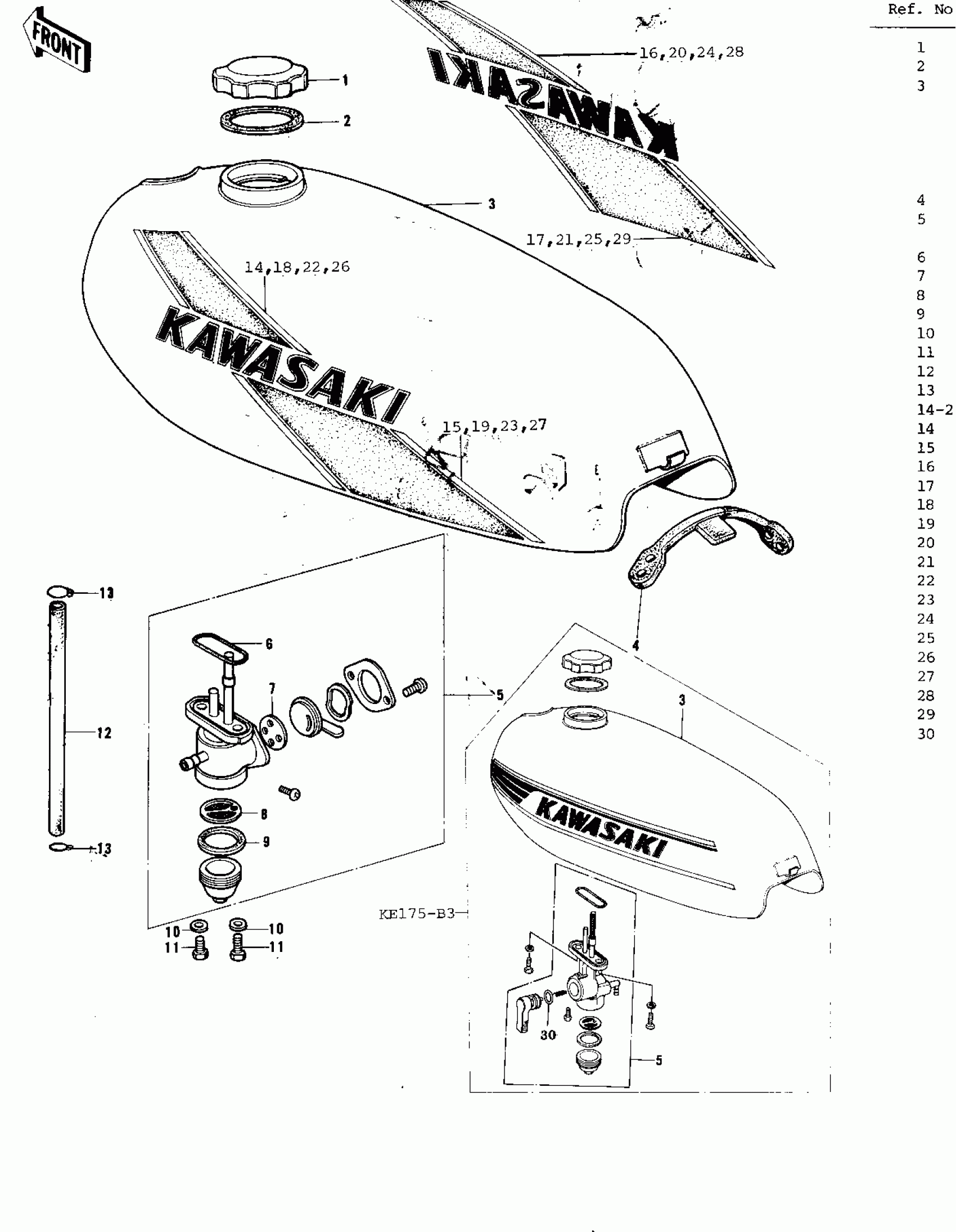

Kawasaki KE175 FUEL TANK Diagram
#
1
CAP,FUEL TANK
51048-1013
Unavailable
2
GASKET,FUEL TANK CAP
51059-011
Unavailable
3
TANK-FUEL,C.GREEN
51001-101-3Z
Unavailable
3
TANK-FUEL,C.ORANGE
51001-101-4A
Unavailable
3
TANK-FUEL,PRUSSIAN BL
51001-101-4T
Unavailable
3
TANK-FUEL,C.LIGHT RED
51001-101-4R
Unavailable
3
TANK-FUEL,C.E.GREEN
51001-101-4U
Unavailable
3
TANK-FUEL,C.C.BLUE
51001-101-A4
Unavailable
4
BAND,FUEL TANK
92072-075
Unavailable
5
TAP ASSY,FUEL
51023-1001
Unavailable
5
TAP ASSY,FUEL
51023-1001
Unavailable
6
RING,TAP FLANGED
51039-003
Unavailable
7
GASKET-FUEL COCK LEV
92065-094
Unavailable
8
STRAINER,FUEL
51038-008
Unavailable
9
GASKET FUEL COCK CUP
51037-011
Unavailable
10
WASHER-PLAIN
92022-183
Unavailable
11
BOLT-HEX HEAD,6X16
92001-114
Unavailable
12
PIPE,FUEL
92059-108
Unavailable
13
CLAMP,TUBE
92037-010
Unavailable
14
DECAL,L.H FL TK,UPP
56027-374-SP
Unavailable
14
DECAL,L.H FL TK,LOW
56027-375-SP
Unavailable
16
DECAL,R.H FL TK,UPP
56027-376-SP
Unavailable
17
DECAL,R.H FL TK,LOW
56027-377-SP
Unavailable
18
DECAL,L.H FL TK,UPP
56027-378-SP
Unavailable
19
DECAL,L.H FL TK,LOW
56027-379-SP
Unavailable
20
*** N.L.A.*** (Canada)
56027-380-SP
Unavailable
21
DECAL,R.H FL TK,LOW
56027-381-SP
Unavailable
22
DECAL,FUEL TANK,L.H.U
56029-058-SP
Unavailable
23
DECAL,FUEL TANK,L.H.L
56029-059-SP
Unavailable
24
DECAL,FUEL TANK,R.H.U
56029-060-SP
Unavailable
25
DECAL,FUEL TANK,R.H.L
56029-061-SP
Unavailable
26
DECAL,L.H FL TK,UPPER
56029-050-SP
Unavailable
27
DECAL,L.H FL TK,LOWER
56029-051-SP
Unavailable
28
DECAL,R.H FL TK,UPPER
56029-052-SP
Unavailable
29
DECAL,R.H FL TK,LOWER
56029-053-SP
Unavailable
30
O RING,10MM
670B2010
Unavailable
