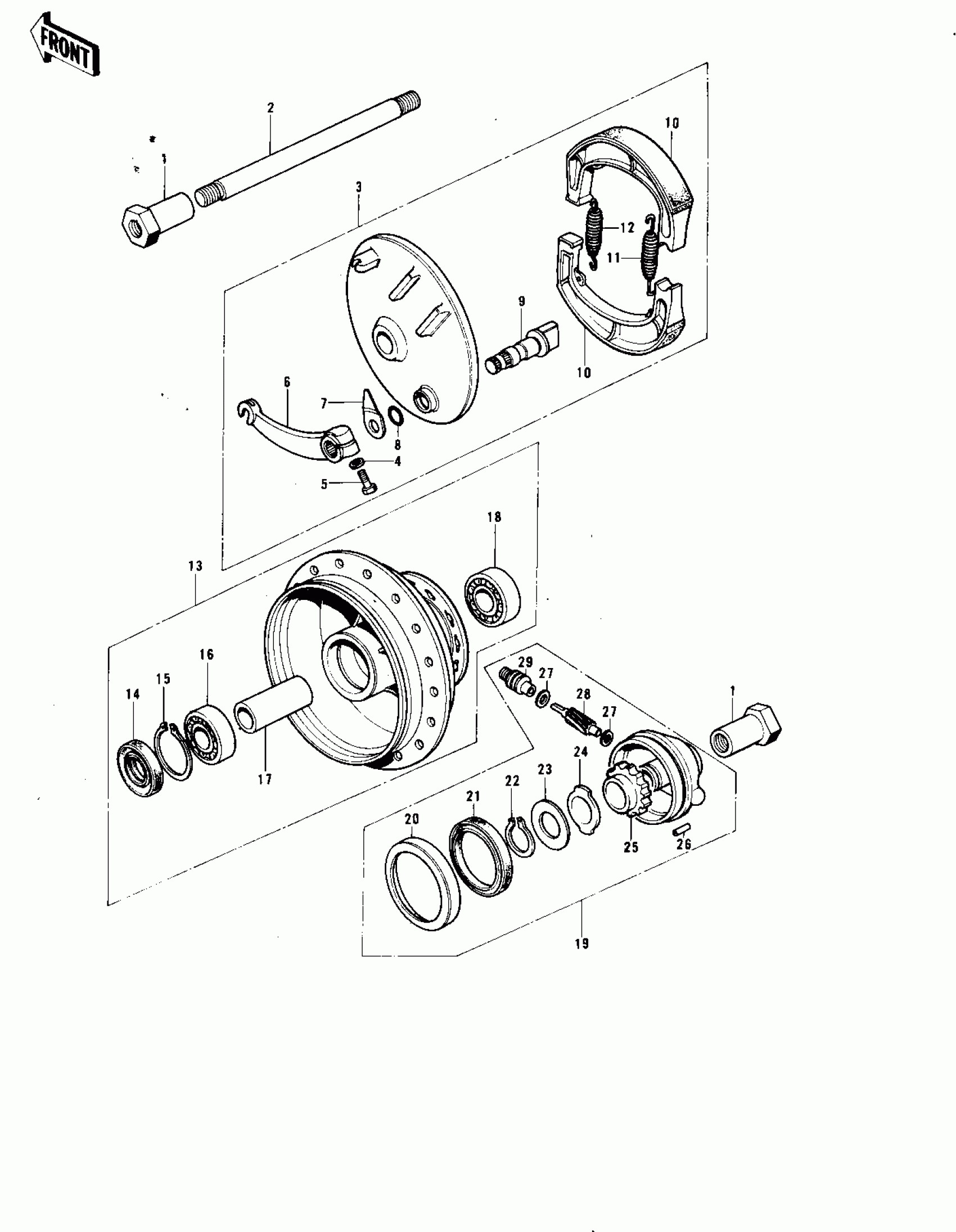

Kawasaki KE175 FRONT HUB/BRAKE Diagram
#
Description
Price
1
COLLAR,FRONT AXLE
41069-024
Unavailable
2
AXLE,FRONT
41068-043
Unavailable
3
PANEL-ASY,FR BRK BUFF
41035-076-80
Unavailable
4
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
5
BOLT 6X22
112B0622
Unavailable
6
LEVER,FRNT BRAKE CAM
41053-020
Unavailable
7
INDICATOR,BRAKE SHOE
41085-002
Unavailable
8
CAM SHAFT,FRONT BRAKE
41050-012
Unavailable
9
CAM SHAFT,FRONT BRAKE
41050-012
Unavailable
10
SHOE,BRAKE
41048-015
Unavailable
11
SPRING,BRAKE SHOE
92081-1766
Unavailable
12
SPRING,BRAKE SHOE
92081-1550
Unavailable
13
DRUM-ASSY,FR BRK,BUFF
41034-031-80
Unavailable
14
OIL SEAL,FR BK DRUM
92050-059
Unavailable
15
CIRCLIP-TYPE-C,37MM
481J3700
Unavailable
16
BEARING BALL #6301
601B6301
Unavailable
17
SPACER,FR HUB BEARING
41039-025
Unavailable
18
BEARING-BALL,#6201C3
601B6201
Unavailable
19
CASE ASSY,SPEED GEAR
41078-009
Unavailable
20
DUST COVER
41042-013
Unavailable
21
OIL SEAL
654A405208
Unavailable
22
CIRCLIP-TYPE-C,19MM
480J1900
Unavailable
23
WASHER,19.5X26X0.8
41065-004
Unavailable
24
RECEIVER,SPEED GEAR
41064-011
Unavailable
25
GEAR,SPEEDOMETER
41059-024
Unavailable
26
PIN,SPRING
41082-001
Unavailable
27
WASHER,5.1X9X0.4
41063-001
Unavailable
28
GEAR-METER SCREW,8T
41060-015
Unavailable
29
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
