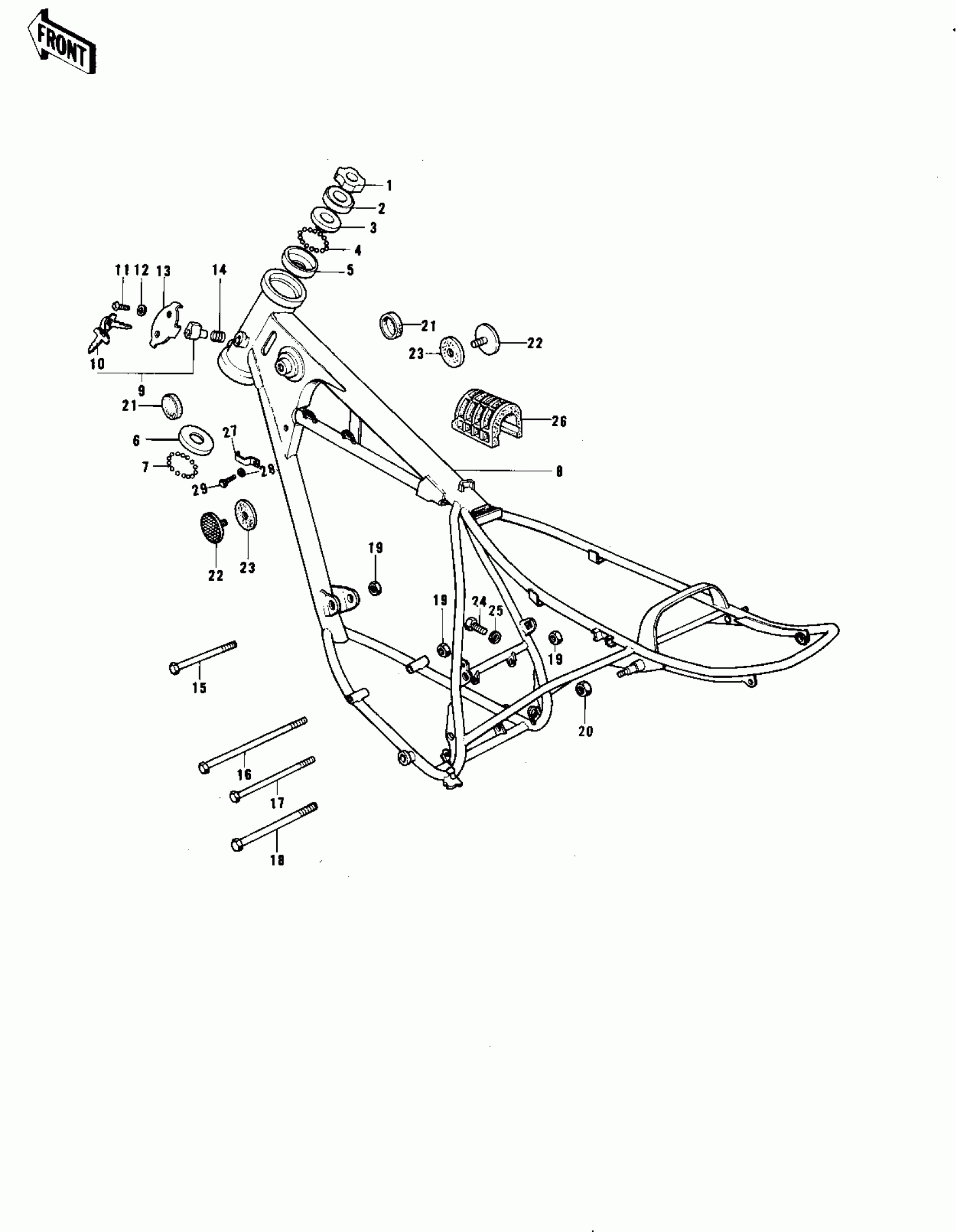

Kawasaki KE175 FRAME/FRAME FITTINGS Diagram
#
1
NUT,STEERING LOCK,25MM
92090-022
Unavailable
2
CAP,STEERING STEM
46098-012
Unavailable
3
RACE,STEERING STEM BEARING
92047-014
Unavailable
4
BALL-STEEL,3/16
600A0600
Unavailable
5
RACE,STEERING STEM BEARING
92048-009
Unavailable
6
RACE,STEERING STEM BEARING,LWR
92048-005
Unavailable
7
BALL-STEEL,1/4
600A0800
Unavailable
8
FRAME
32002-1080
Unavailable
9
LOCK-ASSY,STEERING
27016-042
Unavailable
10
KEY SET #431
27008-054-31
Unavailable
10
KEY SET #432
27008-054-32
Unavailable
10
KEY SET #433
27008-054-33
Unavailable
10
KEY SET # 434
27008-054-34
Unavailable
10
KEY SET #435
27008-054-35
Unavailable
10
KEY SET #436
27008-054-36
Unavailable
10
KEY SET #437
27008-054-37
Unavailable
10
KEY SET #438
27008-054-38
Unavailable
10
KEY SET #439
27008-054-39
Unavailable
10
KEY SET #440
27008-054-40
Unavailable
11
SCREW,3.51MM
92008-007
Unavailable
12
WASHER,WAVE
92097-003
Unavailable
13
CAP,STEERING LOCK
11012-1134
Unavailable
13
CAP,STEERING LOCK
11012-1134
Unavailable
14
SPRING,STEERING LOCK
27032-001
Unavailable
15
BOLT,FLANGED,10X70
92001-1618
Unavailable
16
BOLT,FLANGED,10X220
92002-1197
Unavailable
17
BOLT,HEX HEAD,10X120
92001-1247
Unavailable
18
BOLT,HEX HEAD,12X115
113B12115
Unavailable
19
NUT,LOCK,10MM
92019-021
Unavailable
20
NUT-LOCK,12MM
92019-009
Unavailable
21
DAMPER,FUEL TANK
92075-101
Unavailable
22
REFLECTOR,REFLEX,REAR
28012-009
Unavailable
23
DAMPER,REFLECTOR
92094-011
Unavailable
24
BOLT 6X22
112B0622
Unavailable
24
BOLT 6X32
110B0632
Unavailable
25
NUT 6MM
311B0600
Unavailable
26
DAMPER,FUEL TANK
92075-284
Unavailable
27
CLAMP,WIRE HARNESS
92037-150
Unavailable
28
WASHER SPRING 6MM
461F0600
Unavailable
29
BOLT-UPSET 6X14
112B0614
Unavailable
