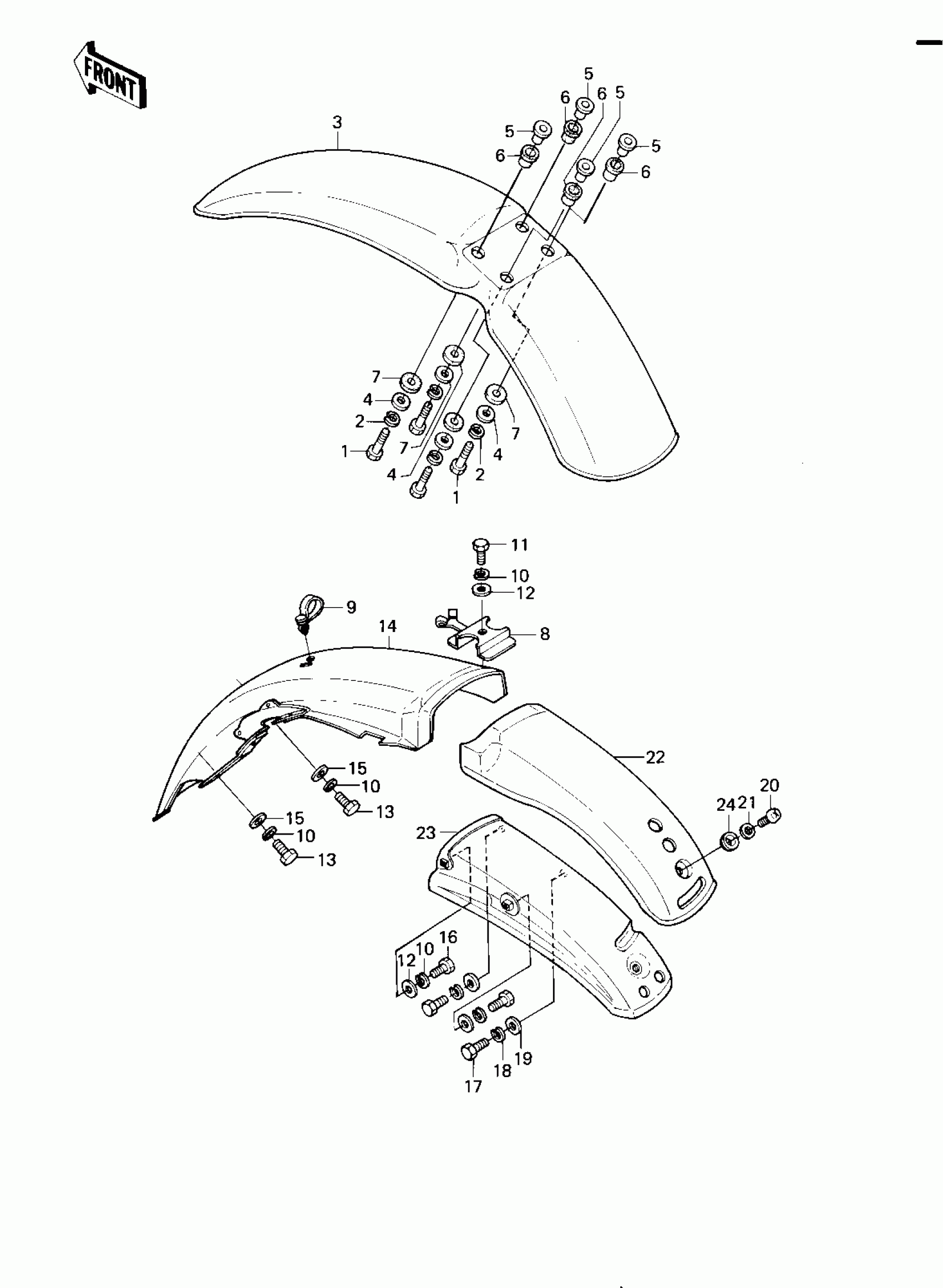

Kawasaki KE175 FENDERS ('80-'81 KE175-D2/D3) Diagram
#
Description
Price
1
BOLT-UPSET
112G0625
$3.62
2
WASHER SPRING 6MM
461F0600
$0.69
3
FENDER-FR,F.RED
35004-1024-6L
Unavailable
3
FENDER-FR,B.BLUE
35004-1024-6K
Unavailable
3
FENDER-FR,S.B.YELLOW
35004-1024-6G
$66.92
4
WASHER,6.5X20X1.6
92022-125
$1.40
5
COLLAR
92027-194
$5.52
6
DAMPER RUBBER
92075-103
$4.39
7
DAMPER,FENDER
92075-121
$4.56
8
HOLDER,WIRING HARNESS
13091-1022
Unavailable
9
CLAMP,SPEED,L=58
92037-1163
$6.57
10
WASHER SPRING 6MM
461F0600
$0.69
11
BOLT-UPSET 6X14
112B0614
Unavailable
12
WASHER PLAIN 6MM
411B0600
$2.84
13
BOLT-UPSET,6X16
112G0616
$1.10
14
FENDER-RR
35022-1017
$70.86
15
WASHER,6.5X20X1.6
92022-125
$1.40
16
BOLT-UPSET,6X12
112G0612
$1.45
17
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
18
WASHER SPRING 8MM
461F0800
$0.40
19
WASHER PLAIN 8MM
410B0800
$0.93
20
SCREW PAN HEAD 6X12
220B0612
Unavailable
21
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
22
FENDER-RR,F.RED
35022-1018-6L
Unavailable
22
FENDER-RR,B.BLUE
35022-1018-6K
$57.19
22
FENDER-RR,YELLOW
35022-1018-6G
$48.37
23
REINFORCE,REAR FENDER
35034-1029
$67.66
24
COLLAR,L=3.5
92027-1018
$5.24
