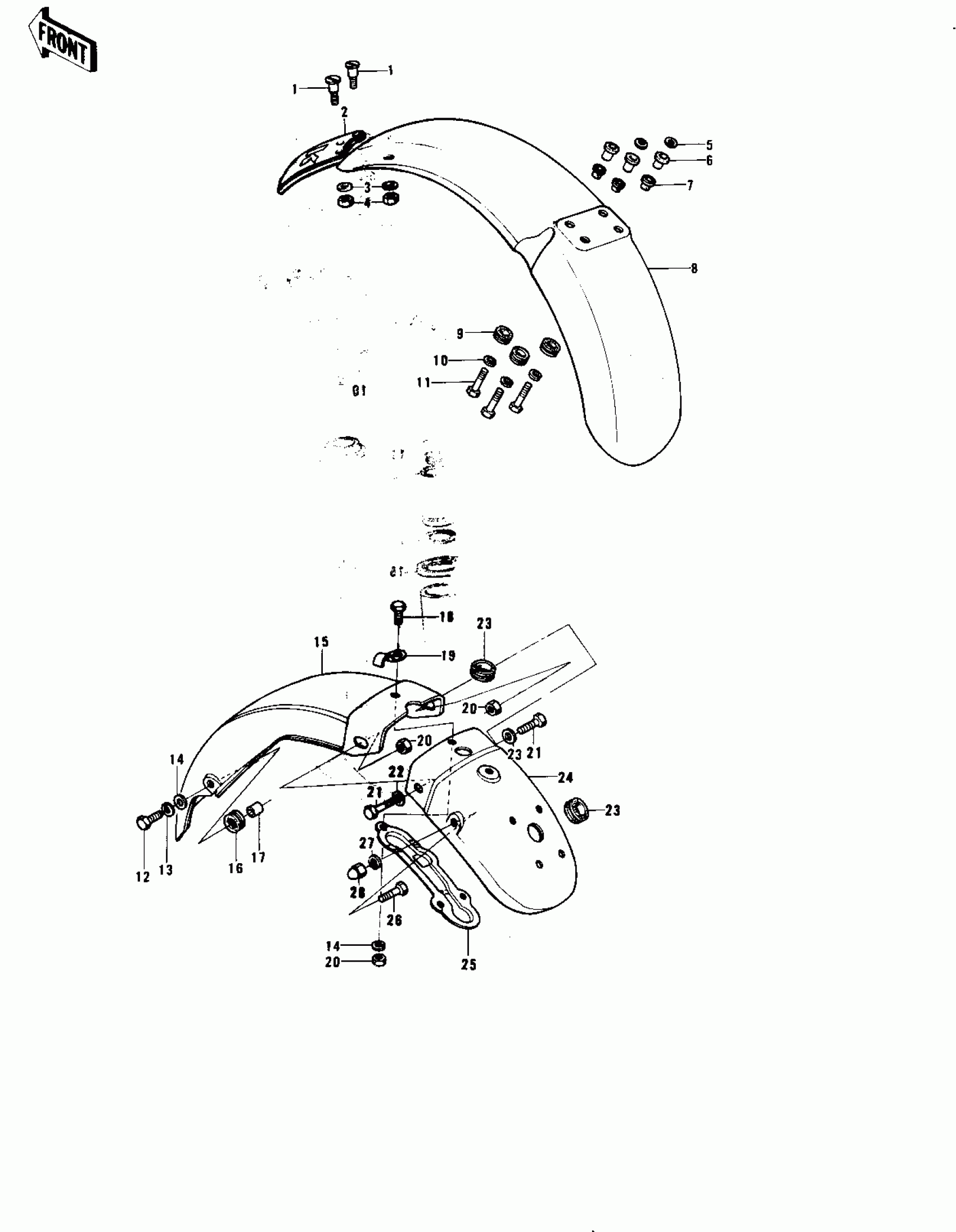

Kawasaki KE175 FENDERS Diagram
#
Description
Price
1
BOLT,5X12
92001-134
Unavailable
2
FLAP,FRONT FENDER
35019-007
Unavailable
3
WASHER PLAIN 5MM
410B0500
Unavailable
4
NUT-HEX
311B0500
Unavailable
5
WASHER,7X24X1.6
92022-228
Unavailable
6
COLLAR
92027-194
Unavailable
7
DAMPER RUBBER
92075-103
Unavailable
8
FENDER-FR,SILVER
35004-086-1W
Unavailable
8
FENDER-FR,WHITE
35004-1001-6V
Unavailable
9
DAMPER,FENDER
92075-121
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
BOLT-UPSET
112G0625
Unavailable
12
BOLT-UPSET,6X16
112G0616
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
WASHER,6.5X20X1.6
92022-125
Unavailable
15
FENDER-RR
35022-100
Unavailable
16
DAMPER RUBBER
92075-105
Unavailable
17
COLLAR
92027-103
Unavailable
18
BOLT-UPSET 6X14
112B0614
Unavailable
19
CLIP WIRING HARNESS
35024-002
Unavailable
20
NUT,LOCK 6MM
92017-014
Unavailable
21
BOLT-UPSET
112G0618
Unavailable
22
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
23
GROMMET,TAIL LAMP WIRE
92071-079
Unavailable
24
FENDER-RR,M.SILVER
35022-101-1W
Unavailable
24
FENDER-RR,WHITE
35022-101-A7
Unavailable
25
GUSSET,REAR FENDER
35021-005
Unavailable
26
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
27
WASHER SPRING 8MM
461F0800
Unavailable
28
NUT FUEL TANK FRONT
92020-007
Unavailable
