Description

Price

1

PISTON,STD

13001-1041

Unavailable

2

PIN-PISTON

13002-1004

$7.03

3

RING SET,STD

13008-5024

Unavailable

4

CIRCLIP PISTON PIN

92036-004

$0.65

5

CRANKSHAFT ASSY

13031-1011

Unavailable

6

CONNECTING ROD ASSY,

13044-5012

Unavailable

7

BEARING,BIG END

13034-042

Unavailable

8

CRANK PIN

13035-022

Unavailable

9

CRANKSHAFT,L.H.

13037-1012

Unavailable

10

CRANKSHAFT,R.H.

13037-1013

Unavailable

11

SPACER,22.5X37X1.0

92026-011

$9.89

12

BEARING-NEEDLE

92046-1038

Unavailable

13

WASHER SPRING 14MM

461F1400

Unavailable

14

KEY-WOODRUFF

510A4200

$2.96

15

O RING,20MM

670B2020

$1.22

16

NUT,18MM

92015-019

$7.22

17

NUT 14MM

92015-043

Unavailable

18

WASHER-PLAIN,14MM

92022-172

Unavailable

19

WASHER,LOCK,18MM

92022-1231

$5.33

19

WASHER,LOCK,18MM

92022-1231

$5.33

20

COLLAR,25X32X10.5

92143-1370

$14.50

21

KEY,WOODRUFF

92038-001

$4.96

22

PIN,DOWEL,2.5X14.8

92042-051

$4.22

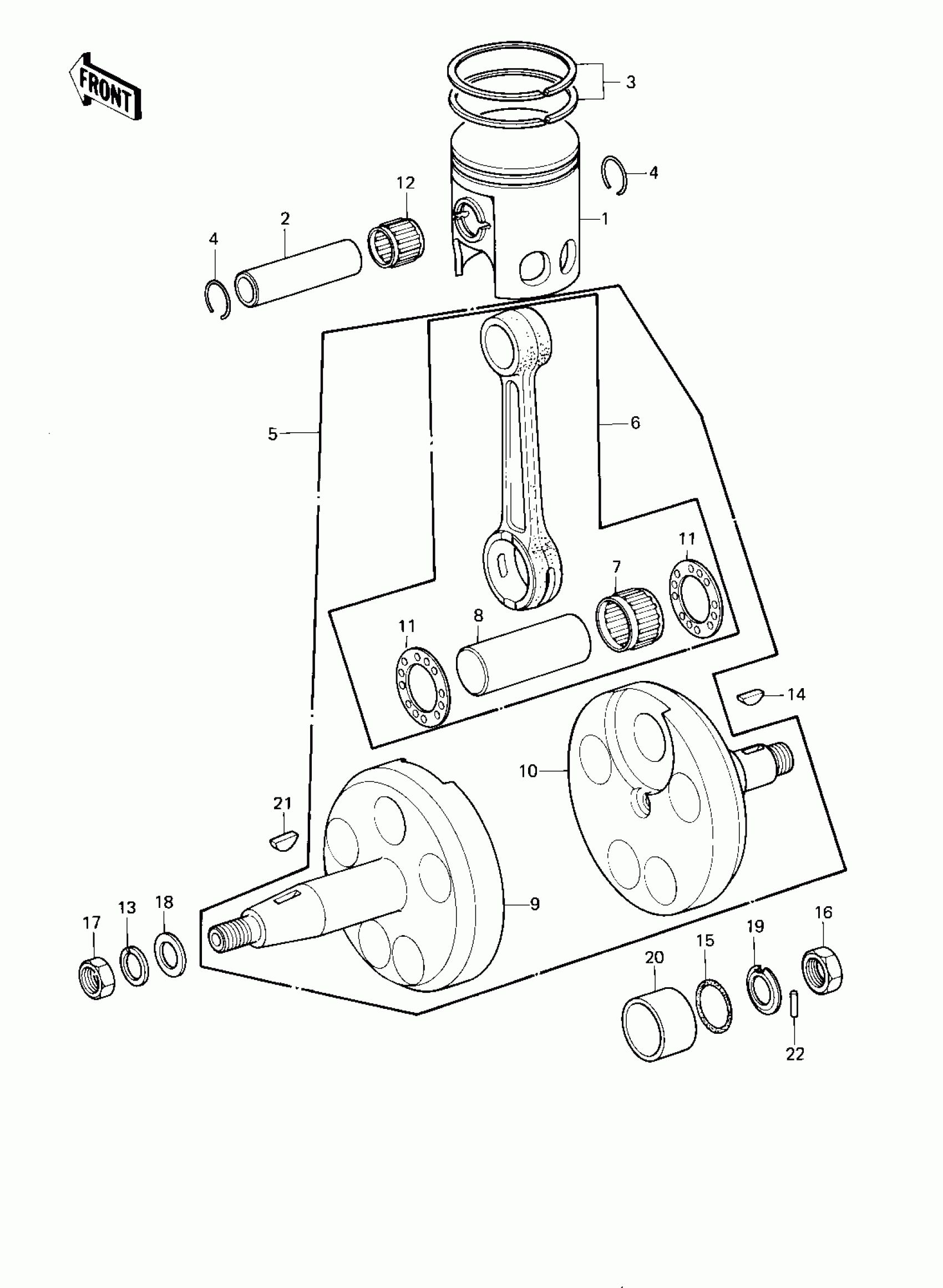

Kawasaki KE175 CRANKSHAFT/PISTON ('80-'81 KE175-D2/D3) Diagram

PISTON,STD

PIN-PISTON

RING SET,STD

CIRCLIP PISTON PIN

CRANKSHAFT ASSY

CONNECTING ROD ASSY,

BEARING,BIG END

CRANK PIN

CRANKSHAFT,L.H.

CRANKSHAFT,R.H.

SPACER,22.5X37X1.0

BEARING-NEEDLE

WASHER SPRING 14MM

KEY-WOODRUFF

O RING,20MM

NUT,18MM

NUT 14MM

WASHER-PLAIN,14MM

WASHER,LOCK,18MM

WASHER,LOCK,18MM

COLLAR,25X32X10.5

KEY,WOODRUFF

PIN,DOWEL,2.5X14.8
