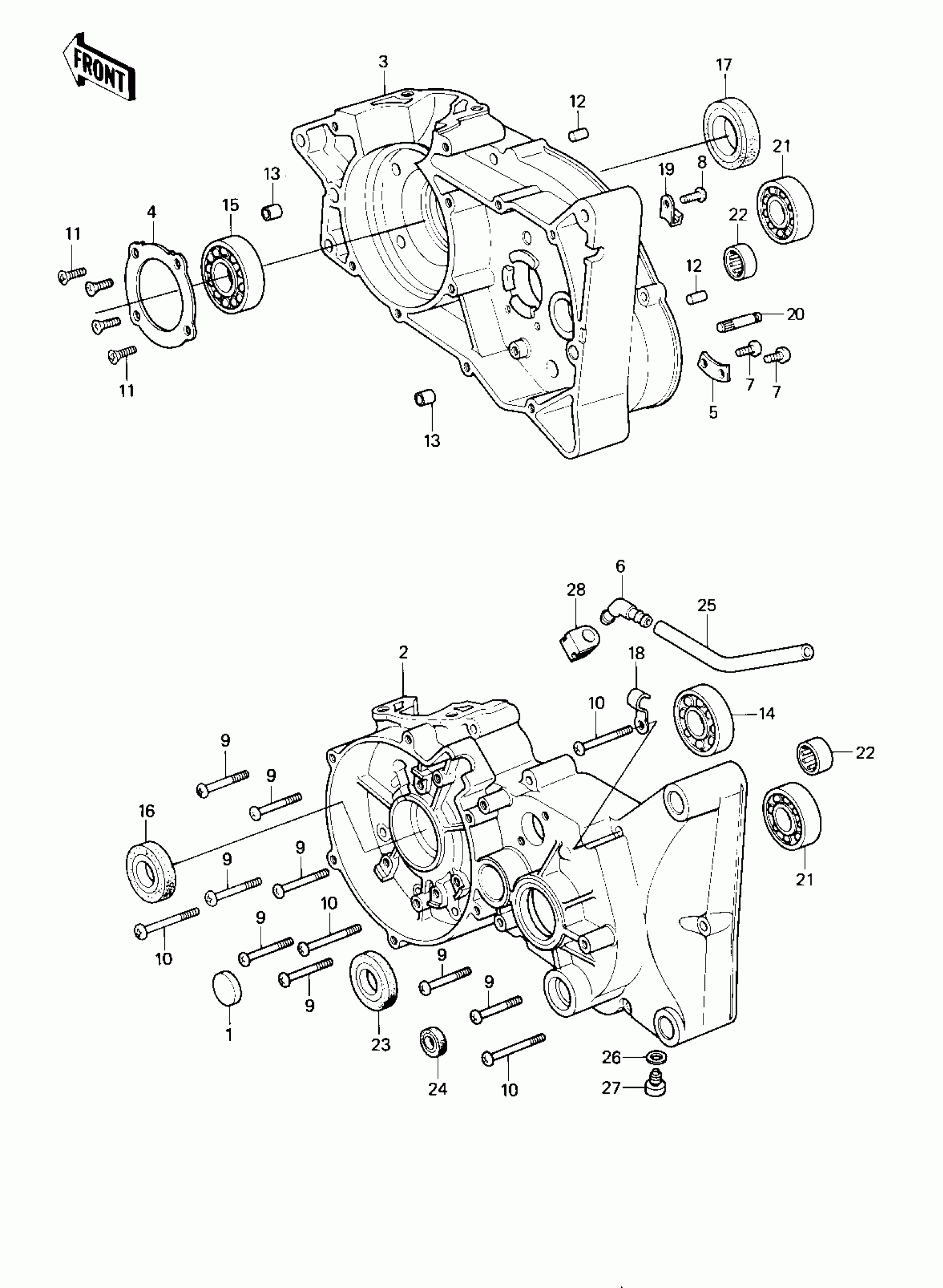

Kawasaki KE175 CRANKCASE ('80-'81 KE175-D2/D3) Diagram
#
Description
Price
1
CAP,DRIVE SHAFT SEAL
11012-1040
Unavailable
2
CRANKCASE,L.H,F.BLACK
14002-1023
Unavailable
3
CRANKCASE,R.H,F.BLACK
14002-1079
Unavailable
4
HOLDER-CRANK BEARING
14014-021
Unavailable
5
HOLDER-MISSION BERNG
14014-022
Unavailable
6
BREATHER ASSY
14069-1001
$24.64
7
SCREW PAN HEAD 6X12
220B0612
Unavailable
8
SCREW-PAN-CROS,6X14
220B0614
$1.48
9
SCREW PAN HEAD 6X40
220B0640
Unavailable
10
SCREW-PAN-CROS,6X60
220B0660
$1.79
11
SCREW-CSK-CROS,6X16
221B0616
$0.59
12
PIN DOWEL 8X16
551A0816
$1.25
13
PIN-DOWEL,6.5X10X12
552B1012
$1.10
14
BEARING-BALL,#6205C3
601B6205
$19.57
15
BEARING-BALL,#6305C3
601B6305
$25.78
16
SEAL-OIL
92049-1250
$18.74
17
OIL SEAL TB32457
653B324507
$17.63
18
CLAMP CABLE
92037-016
Unavailable
19
CLAMP,OIL PIPE
92037-157
Unavailable
20
PIN,KICK SPRING
92043-117
$8.71
21
BEARING-BALL,6204C3
92045-1046
Unavailable
22
BEARING-NEEDLE,#7E-HKS162412-1
92046-026
$23.97
23
OIL SEAL SC30426
92050-039
$13.66
24
SEAL-OIL,TB13225.5
92051-005
$7.74
25
PIPE-BREATHER
92059-061
Unavailable
26
GASKET,10.5X16X1
92065-058
$3.96
27
PLUG,DRAIN,10X12
92067-001
$4.41
28
GROMMET,BREATHER
92071-042
$4.26
