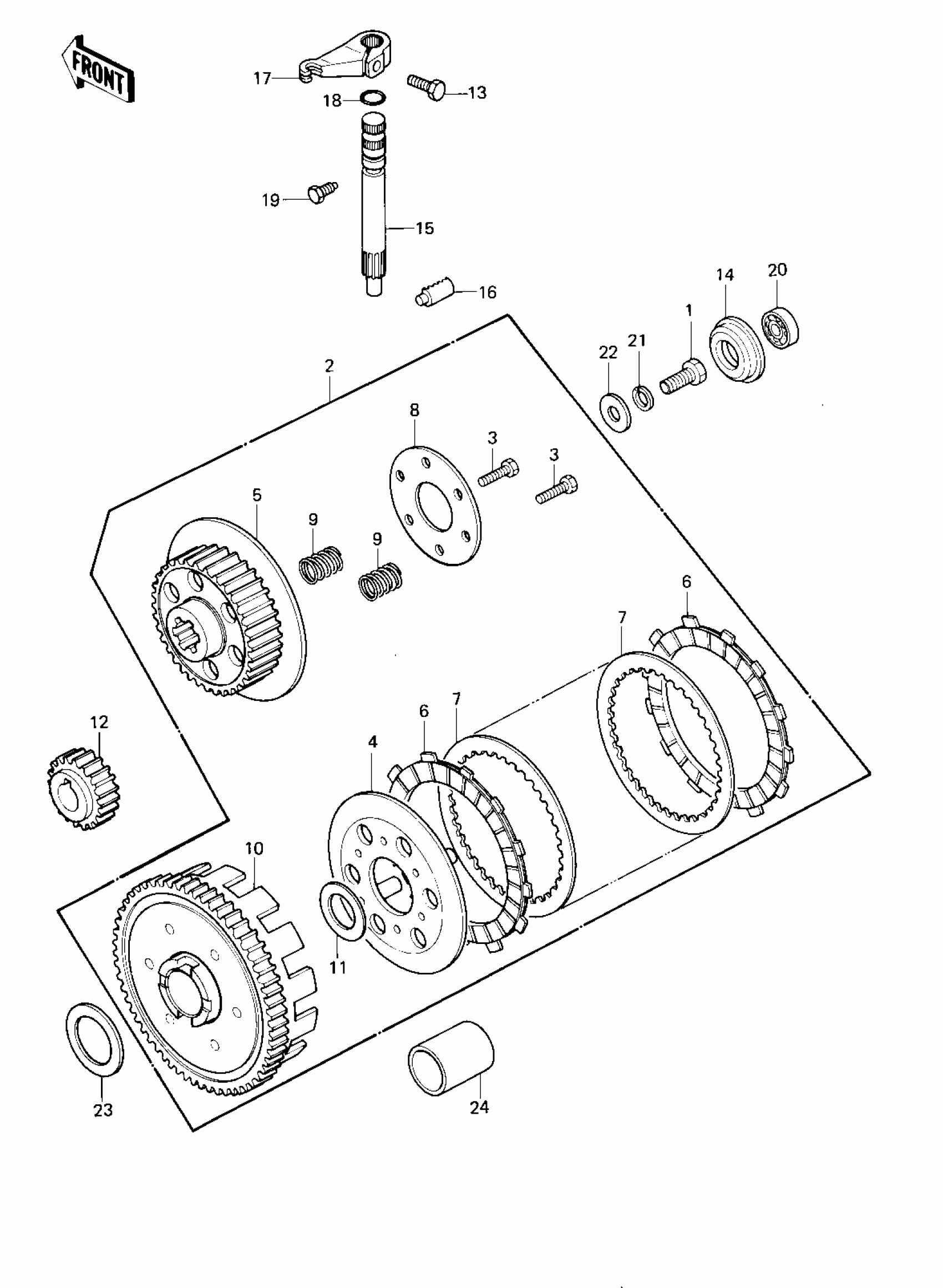

Kawasaki KE175 CLUTCH ('80-'81 KE175-D2/D3) Diagram

#

Description
Price

1

BOLT,HEX HEAD,10X22

113G1022

$3.38

2

CLUTCH-ASSY

13081-1050

Unavailable

2

CLUTCH-ASSY

13081-1050

Unavailable

3

BOLT

110G0520

$5.14

4

WHEEL,CLUTCH

13086-017

Unavailable

5

HUB,CLUTCH

13087-041

Unavailable

6

PLATE-FRICTION

13088-1015

$20.55

7

PLATE CLUTCH STEEL

13089-003

$14.22

8

HOLDER,CLUTCH SPRING

13091-1017

Unavailable

9

SPRING,CLUTCH

92081-1174

Unavailable

10

HOUSING-COMP-CLUTCH

13095-1024

Unavailable

11

WASHER,20.5X34X1.4

92022-168

$9.51

12

GEAR,PRIMARY,24T

13097-1006

Unavailable

13

BOLT-UPSET

112G0618

$1.01

14

HOLDER,CLUTCH PUSHER

13091-1018

Unavailable

15

SHAFT,CLUTCH RELEASE

13106-1002

Unavailable

16

PUSHER,CLUTCH

13114-1003

Unavailable

17

LEVER,CLUTCH RELEASE

13168-1023

Unavailable

18

O RING,9MM

670B1509

$3.65

19

BOLT,CLUTCH RELEASE

92003-130

$6.01

20

BEARING-BALL

92045-1211

$11.88

21

WASHER SPRING 10MM

461F1000

$0.67

22

WASHER,10.2X28X2

92022-1088

$4.69

23

WASHER,20.5X34X1.4

92022-168

$9.51

24

BUSH-CLUTCH

92028-014

$21.46
