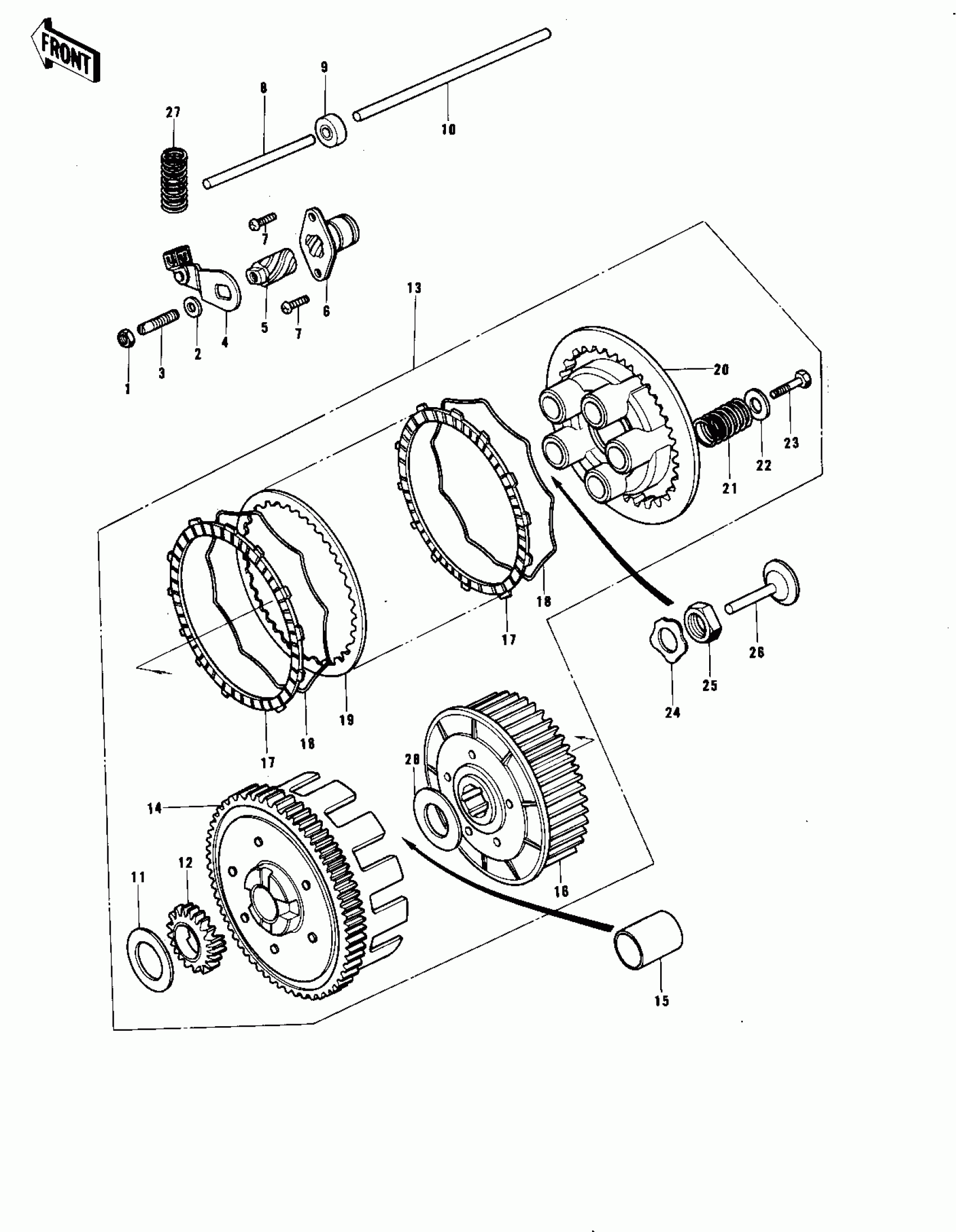

Kawasaki KE175 CLUTCH Diagram
#
Description
Price
1
NUT 6MM
311B0600
Unavailable
2
WASHER PLAIN 6MM
411B0600
Unavailable
3
SCREW,SLOTTED,6X24
291H0624
Unavailable
4
INNER,CLUT RELESE
13102-023
Unavailable
5
SCREW
13104-017
Unavailable
6
OUTER,CLUT RELESE
13118-014
Unavailable
7
SCREW-PAN-CROS,6X14
220B0614
Unavailable
8
ROD-CLUTCH PUSH,SHORT
13116-018
Unavailable
9
OIL SEAL TB7246
92052-010
Unavailable
10
ROD-CLUTCH PUSH,LONG
13116-017
Unavailable
11
WASHER,20.5X34X1.4
92022-168
Unavailable
12
PINION-KICKSTARTER
13075-006
Unavailable
13
CLUTCH-ASSY
13081-084
Unavailable
13
CLUTCH-ASSY
13081-084
Unavailable
14
HOUSING-COMP-CLUTCH
13095-1024
Unavailable
14
HOUSING-COMP-CLUTCH
13095-1024
Unavailable
15
BUSH-CLUTCH
92028-014
Unavailable
16
HUB,CLUTCH
13087-032
Unavailable
17
PLATE-FRICTION
13088-1015
Unavailable
18
RING-CLUTCH STEEL
13229-002
Unavailable
19
PLATE CLUTCH STEEL
13089-003
Unavailable
20
PLATE-CLUTCH SPRING
13187-004
Unavailable
21
SPRING,CLUTCH
92081-080
Unavailable
22
WASHER-PLAIN,5MM
92022-167
Unavailable
23
BOLT,5X18
92003-078
Unavailable
24
WASHER-LOCK,14MM
92024-046
Unavailable
25
NUT-HEX-FINE,14MM
315B1400
Unavailable
26
PUSHER-CLTCH SPRG PLT
13116-016
Unavailable
27
SPRING,CLUTCH RELEASE
92081-096
Unavailable
28
WASHER,17.3X30X1.4
92022-270
Unavailable
28
WASHER,20.5X34X1.4
92022-168
Unavailable
