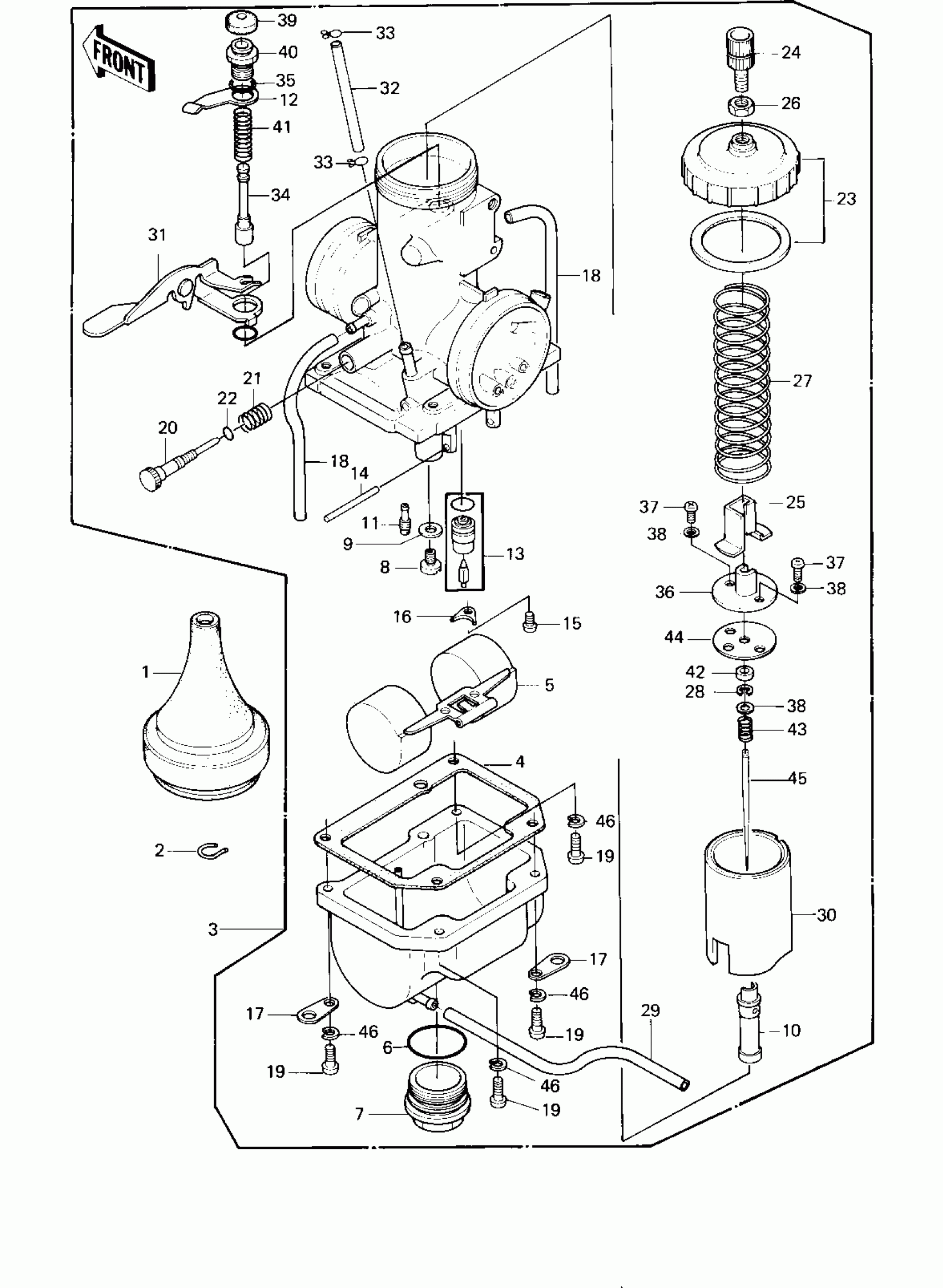

Kawasaki KE175 CARBURETOR ('80-'81 KE175-D2/D3) Diagram
#
1
BOOT,CARBURETOR
49006-1169
Unavailable
2
RING-SNAP
92036-018
$3.89
3
CARBURETOR
16001-1266
Unavailable
4
GASKET,FLOAT CHAMBER
11009-1178
Unavailable
5
FLOAT
16031-1011
$57.76
6
RING-O
92055-1076
$10.62
7
COVER,FLOAT CHAMBER
14025-1198
Unavailable
8
MAIN JET,#A102.5
92063-1028
$17.74
8
MAIN JET,#A97.5R
92063-1035
Unavailable
8
MAIN JET,#A100
92063-1033
Unavailable
8
MAIN JET,#A105R
92063-1042
Unavailable
8
JET-MAIN NO 107.5R
92063-073
Unavailable
9
WASHER,MAIN JET
16034-001
$4.31
10
NEEDLE JET.0-6
16017-1050
$20.01
11
PILOT JET,#22.5
92064-1026
$12.63
12
SPRING PLATE,STARTER
13169-1224
Unavailable
13
VALVE ASSY,FLOAT
16030-1011
Unavailable
14
PIN,FLOAT
16032-003
$6.57
15
SCREW PAN HEAD 4X8
220B0408
$0.67
16
PLATE, LOCK
13169-1190
Unavailable
17
PLATE,TUBE CLAMP
13169-1226
Unavailable
18
TUBE,3X5X100
92059-1116
$4.59
19
SCREW PAN HEAD 4X16
220B0416
$1.66
20
SCREW,THROTTLE ADJST
16021-1012
Unavailable
21
SPRING,THROTTLE ADJUST
92081-1152
$6.16
22
RING-O
92055-044
$10.38
23
CAP-MIXING CHAMBER
16004-018
Unavailable
24
ADJUSTER,CABLE
16002-014
Unavailable
25
COVER,THROTTLE VALVE
14025-1197
Unavailable
26
NUT,ADJUST LOCK
16003-006
$7.34
27
SPRING,THROTTLE VALVE
16006-023
$15.02
28
CLAMP,E-TYPE
16008-010
$9.21
29
TUBE,3X5X300
92059-1755
$9.24
30
VALVE,THROTTLE CA2.0
16025-1043
$59.73
31
LEVER,STARTER PLUNGER
16063-004
$31.60
32
PIPE,FUEL
92059-130
$24.48
33
CLAMP,TUBE
92037-072
$7.22
34
PLUNGER,STARTER
16016-1011
$29.28
35
O RING,9MM
670B1509
$3.65
36
CONNECTOR,THROTTLE
13159-1010
Unavailable
37
SCREW,PAN HEAD,3X14
16033-031
Unavailable
38
WASHER,THROTTLE VALVE
92022-1024
$6.61
39
CAP,STARTER PLUNGER
16039-015
$6.88
40
CAP-STARTER PLUNGER
16012-019
$21.09
41
SPRING,STARTER PLUNGER
92081-1181
$4.11
42
COLLAR,THROTTLE VALVE
92027-1103
$7.34
43
SPRING,JET NEEDLE
92081-1072
$5.54
44
PLATE,THROTTLE VALVE
16007-1011
$12.15
45
JET NEEDLE, 5CT34
16009-1053
$11.29
46
WASHER SPRING 4MM
461F0400
Unavailable
