Description

Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

SCREW PAN HEAD 6X12

220B0612

Unavailable

3

WASHER SPRING 6MM

461F0600

$0.69

4

NUT 6MM

311B0600

$0.93

5

PEDAL,BRAKE

43001-1020

$63.87

6

O RING,16MM

670B2016

$1.36

7

WASHER,PLAIN,6MM

92022-284

Unavailable

8

SPRING,BRAKE PEDAL

92081-1071

$8.53

9

BOLT,HEX HEAD,10X22

113G1022

$3.38

10

BOLT,10X28

113G1028

$5.98

11

TORQUE LINK,REAR BRAK

43007-048

$26.40

12

NUT,10MM

92019-016

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

14

ROD,BRAKE

43011-1009

$22.48

15

SPRING,BRAKE ROD

43012-001

$4.65

16

PIN COTTER 2.0X15

550D2015

$1.04

17

NUT,BRAKE ROD

92015-042

$6.22

18

PIN,6X17

92043-064

$4.69

19

PIN,BRAKE ROD

92043-065

$5.57

20

COLLAR

92027-122

$8.60

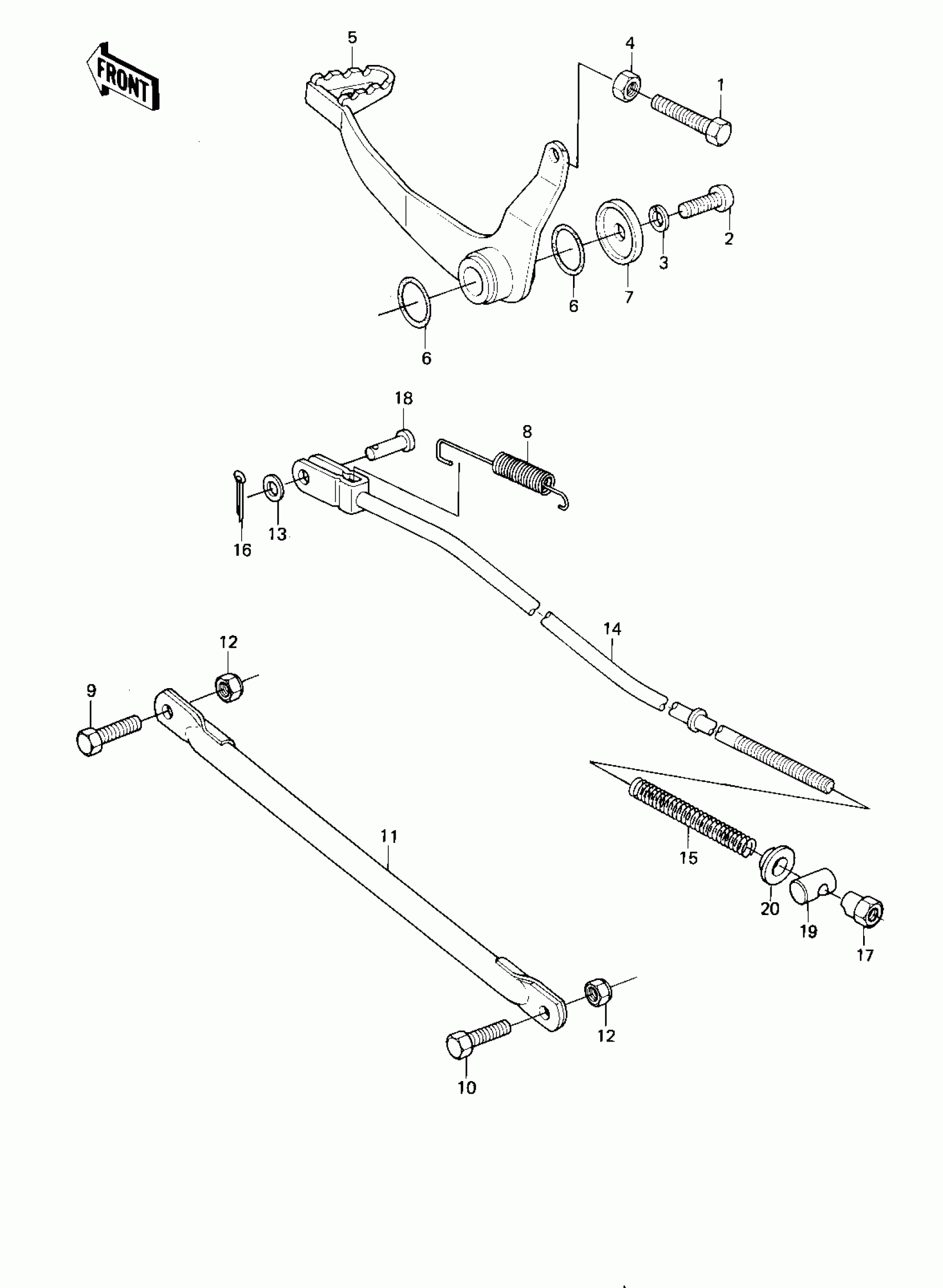

Kawasaki KE175 BRAKE PEDAL/TORQUE LINK ('80-'81 KE175-D Diagram

BOLT-UPSET,6X20

SCREW PAN HEAD 6X12

WASHER SPRING 6MM

NUT 6MM

PEDAL,BRAKE

O RING,16MM

WASHER,PLAIN,6MM

SPRING,BRAKE PEDAL

BOLT,HEX HEAD,10X22

BOLT,10X28

TORQUE LINK,REAR BRAK

NUT,10MM

WASHER-PLAIN-SMALL,6MM

ROD,BRAKE

SPRING,BRAKE ROD

PIN COTTER 2.0X15

NUT,BRAKE ROD

PIN,6X17

PIN,BRAKE ROD

COLLAR
