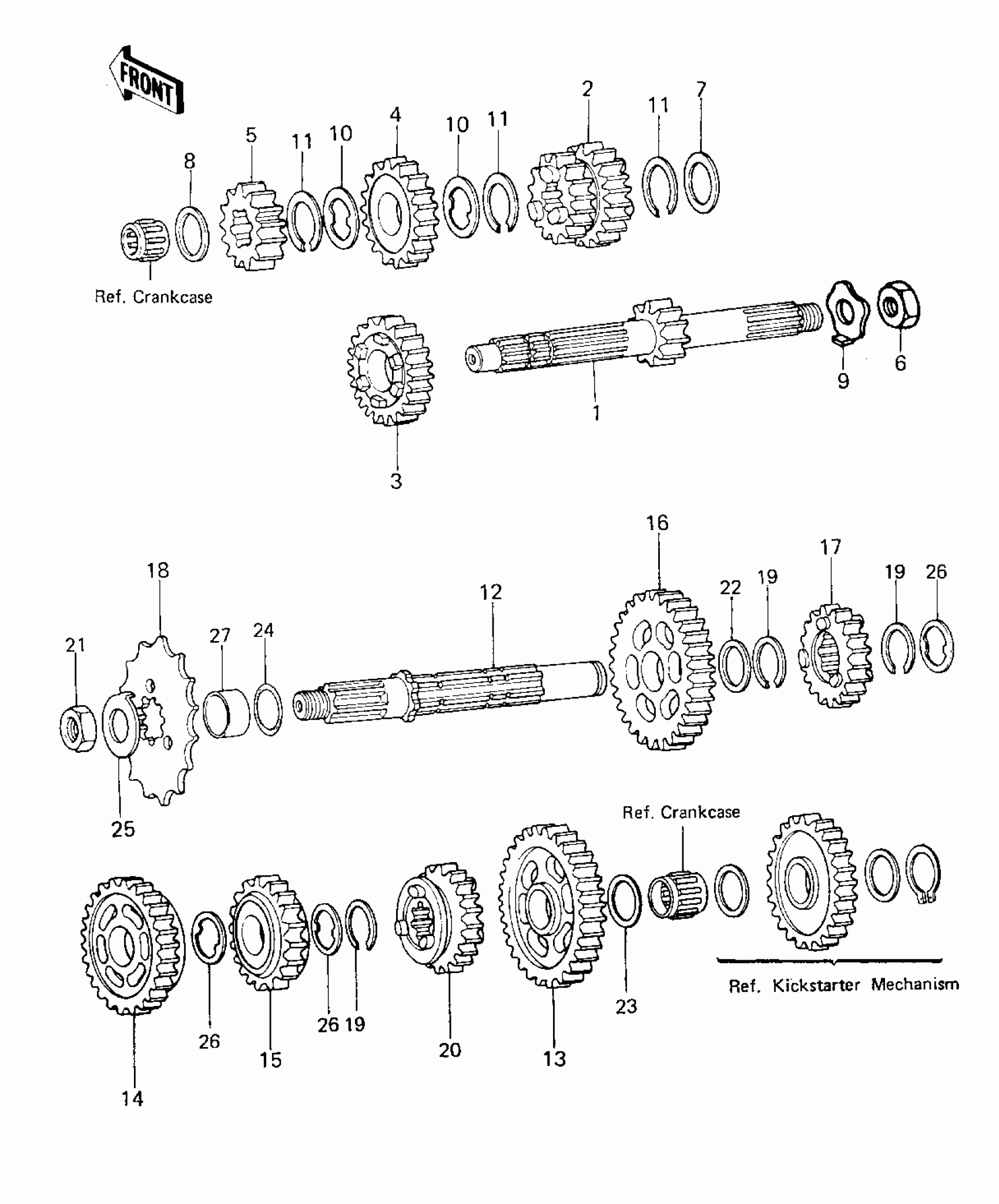

Kawasaki KE125 TRANSMISSION ('80-'81 A7/A8) Diagram
#
Description
Price
1
SHAFT,DRIVE
13127-045
Unavailable
2
3RD&4TH GEAR,DRIVE SF
13129-1010
Unavailable
3
5TH GEAR,DRIVE SHAFT
13129-1018
Unavailable
4
TOP GEAR,DRIVE,SHAFT
13129-1021
Unavailable
5
2ND GEAR,DRIVE SHAFT
13130-036
Unavailable
6
NUT-HEX-FINE,14MM
315B1400
Unavailable
7
WASHER,18.3X22X0.5
92022-271
Unavailable
8
WASHER,14.3X24X1
92022-272
Unavailable
9
WASHER-LOCK,14MM
92024-046
Unavailable
10
WASHER,LOCK
92024-055
Unavailable
11
RING-SNAP
92033-028
Unavailable
12
SHAFT,OUTPUT
13128-040
Unavailable
13
LOW GEAR,OUTPUT SHAFT
13129-050
Unavailable
14
3RD GEAR,OUTPUT SHAFT
13129-1011
Unavailable
15
4TH GEAR,OUTPUT SHAFT
13129-1015
Unavailable
16
2ND GEAR,OUTPUT SHAFT
13131-043
Unavailable
17
TOP GEAR,OUTPUT SHAFT
13137-043
Unavailable
18
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
18
ENGINE SPROCKET,13T
13144-053
Unavailable
18
SPROCKET-OUTPUT,15T
13144-054
Unavailable
19
RING-SNAP
92033-028
Unavailable
20
5TH GEAR,OUTPUT SHAFT
13248-003
Unavailable
21
NUT-HEX-FINE,14MM
315B1400
Unavailable
22
WASHER,18.3X22X0.5
92022-271
Unavailable
23
WASHER,PLAIN
92022-273
Unavailable
24
RING-O,17.5X1.5
92055-022
Unavailable
25
WASHER,
92024-052
Unavailable
26
WASHER,LOCK
92024-055
Unavailable
27
COLLAR,20X25X12.5
92027-1077
Unavailable
