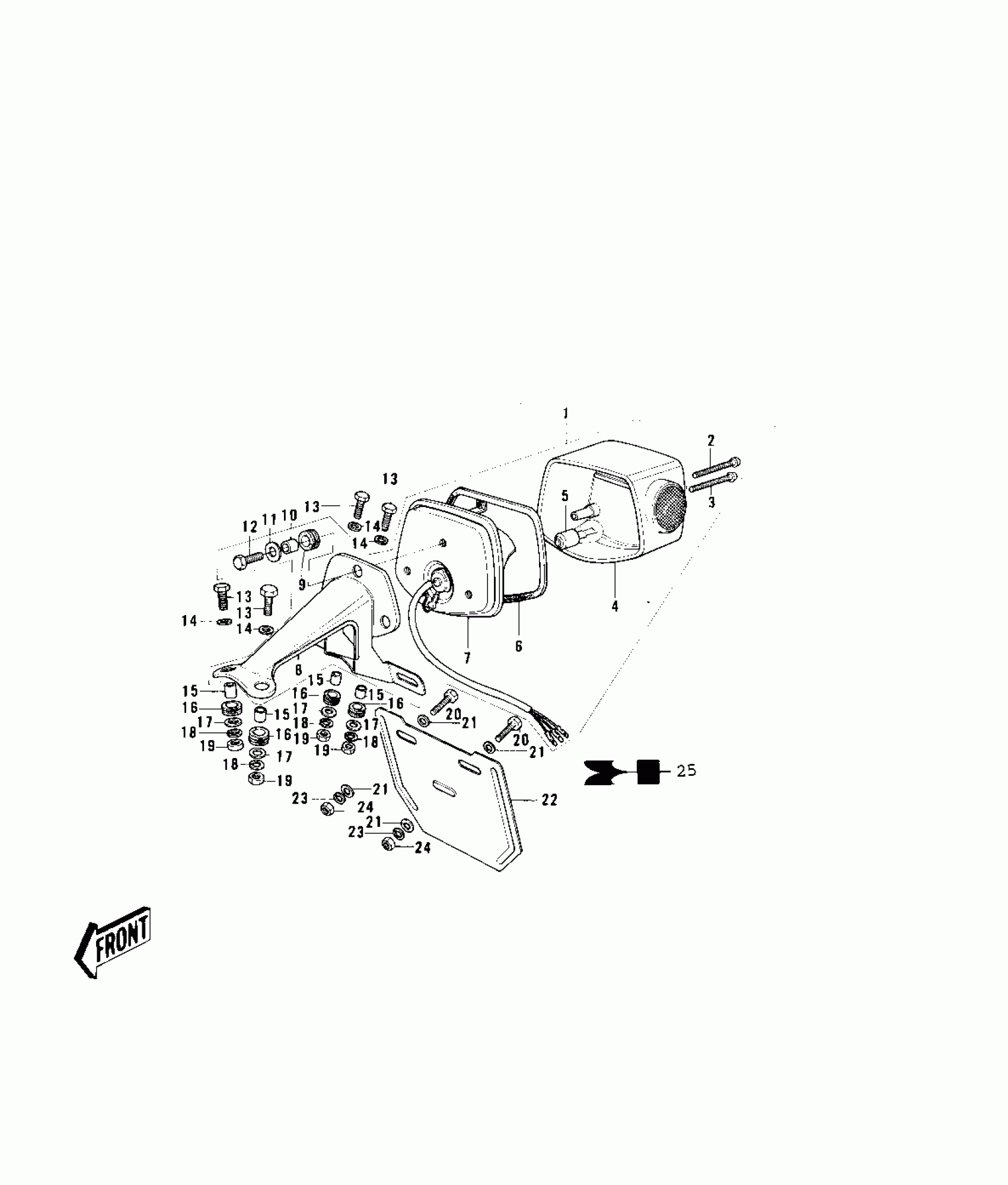

Kawasaki KE125 TAILLIGHT ('76-'79) Diagram
#
Description
Price
1
LAMP ASSY,TAIL,BLACK
23024-048-21
$167.97
2
SCREW
220R0455
$5.03
3
SCREW PAN HEAD 4X50
220E0450
$6.15
4
LENS,TAIL LAMP
23026-028
$56.62
5
BULB,6V 32/3CP
92069-074
$5.75
6
GASKET,TAIL LAMP LENS
23028-019
$9.80
7
BODY COMP TAIL LAMP
23027-1018
Unavailable
8
BKT,TAIL LAMP,BLACK
23036-037-21
$65.65
9
DAMPER RUBBER
92075-076
$4.78
10
COLLAR,6.8X10X8.5
92027-129
$5.00
11
WASHER,6.5X20X1.6
92022-125
$1.40
12
BOLT-UPSET,6X20
112G0620
$2.12
13
BOLT-UPSET
112G0630
$1.36
14
WASHER,6.5X22X1.6
92022-237
$3.92
15
COLLAR 6.8X10X10.5
92027-120
$5.00
16
DAMPER RUBBER,RR FENR
92075-209
$4.69
17
WASHER,6.5X20X1.6
92022-125
$1.40
18
WASHER SPRING 6MM
461F0600
$0.69
19
NUT 6MM
311B0600
$0.93
20
BOLT-UPSET,6X20
112G0620
$2.12
21
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
22
BRACKET,LICENSE PLATE
11034-1117
Unavailable
23
WASHER SPRING 6MM
461F0600
$0.69
24
NUT 6MM
311B0600
$0.93
25
EMBLEM,LICNSE PLT BKT
56018-176
Unavailable
