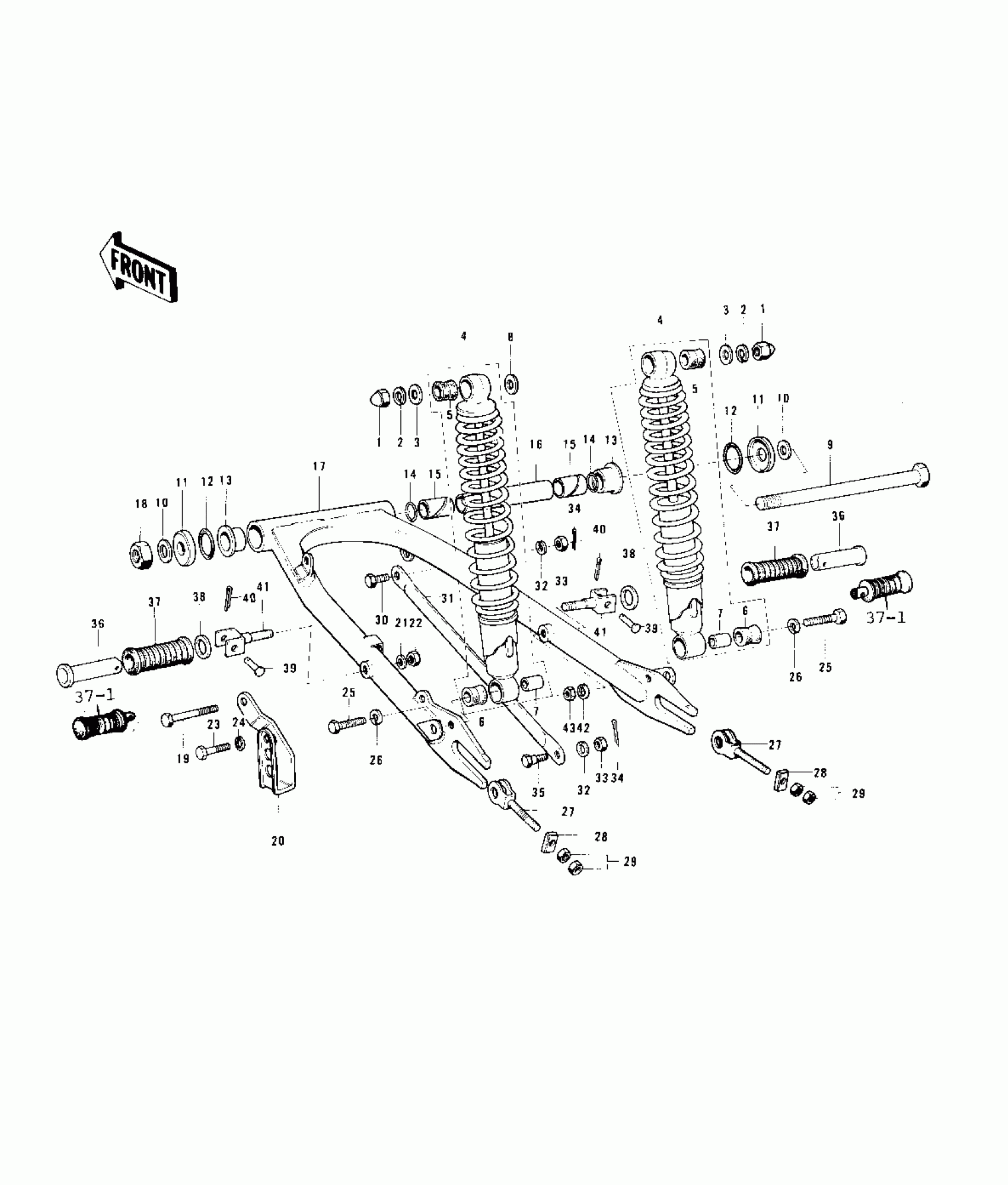

Kawasaki KE125 SWING ARM/SHOCK ABSORBERS ('76-'79) Diagram
#
1
NUT,CAP,10MM
92020-003
$6.52
2
WASHER SPRING 10MM
461F1000
$0.67
3
WASHER,10.5X26X2.3
92022-044
$3.92
4
SHOCK ABSBR RR
45014-113
Unavailable
4
SHOCK ABSBR RR
45014-1017
$237.73
5
BUSH A-SHCK ABS RUBER
45017-010
Unavailable
6
DAMPER,SHOCKABSORBER
92075-1020
$4.92
7
COLLAR,SHOCKABSORBER
45016-003
$15.92
8
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
9
SHAFT-SWING ARM
33032-034
$38.31
10
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
11
CAP-SWINGING ARM
33035-005
Unavailable
12
"0" RING,30MM
671B2530
$5.05
13
BUSHING-SWING ARM
33033-009
Unavailable
14
O RING,16MM
670B2016
$1.36
14
"0" RING,16MM
92055-001
Unavailable
15
SLEEVE-SWINGING ARM
33034-016
$21.33
16
COLLAR,SWING ARM,LONG
33036-007
$9.82
17
ARM,SWINGING
33001-063
$167.95
17
SWING ARM
33001-080
$167.20
18
NUT-LOCK,12MM
92019-009
$7.29
19
BOLT,HEX HEAD,10X50
92001-1254
$4.38
20
GUARD,CHAIN
55020-016
Unavailable
21
WASHER SPRING 10MM
461F1000
$0.67
22
NUT-HEX-FINE,10MM
314B1000
$0.67
23
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
24
WASHER SPRING 8MM
461F0800
$0.40
25
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
26
WASHER SPRING 10MM
461F1000
$0.67
27
ADJUSTER,CHAIN
33040-057
Unavailable
27
ADJUSTER,CHAIN
33040-073
Unavailable
28
PLATE,CHAIN ADJUSTER
33041-002
Unavailable
28
PLATE,CHAIN ADJUSTER
33041-005
$9.01
29
NUT,8MM
311B0800
$0.67
30
BOLT,HEX HEAD,AX24
92003-143
Unavailable
31
TORQUE LINK,REAR BRK
43007-039
Unavailable
32
WASHER SPRING 8MM
461F0800
$0.40
33
NUT,8MM
320B0800
$2.22
34
PIN-COTTER,2.0X20
550D2020
$0.96
35
BOLT,RR TORQUE LINK
92003-144
Unavailable
36
STEP,RR
34028-009
$26.11
37
RUBBER,REAR FOOTREST
92076-024
$24.87
37-1
RUBBER,FOOTREST
92076-027
$37.21
38
WASHER-PLAIN (OPT)
92022-199
Unavailable
39
PIN,6X28
92043-1464
$8.10
40
PIN-COTTER,2.0X12
550D2012
$1.11
41
BRACKET,REAR FOOTREST
34029-013
Unavailable
42
WASHER SPRING 10MM
461F1000
$0.67
43
NUT-HEX-FINE,10MM
314B1000
$0.67
