Description

Price

1

SEAT ASSY,DUAL

53002-068

$278.45

1

SEAT-ASSY,DUAL

53001-1033

Unavailable

1

SEAT-ASSY,DUAL

53001-1033

Unavailable

2

BRACKET,DUAL SEAT

53032-005

$11.18

3

WASHER SPRING 6MM

461F0600

$0.69

4

SCREW-PAN-CROS,6X14

220B0614

$1.48

5

DAMPER,SEAT

92075-219

Unavailable

6

DAMPER,SEAT

92075-216

Unavailable

7

DAMPER RUBBER,BATERY

92075-224

Unavailable

8

STOPPER,SEAT

53059-001

$13.12

9

SPRING,HOOK

53012-013

Unavailable

10

PIN DUAL SEAT PIVOT

53011-001

$5.59

11

HOOK,SEAT,L.H

53008-028

$5.56

12

COTTER PIN

92041-003

$5.72

13

HOOK,SEAT,R.H

53008-029

$5.96

14

CASE-CHAIN,FR BLACK

36014-051-21

Unavailable

15

WASHER PLAIN

92022-024

$3.65

16

WASHER SPRING 6MM

461F0600

$0.69

17

SCREW-PAN-CROS,6X14

220B0614

$1.48

18

DR CHAIN 428X118H

92057-030

$99.06

19

JOINT-CHAIN

92058-1015

Unavailable

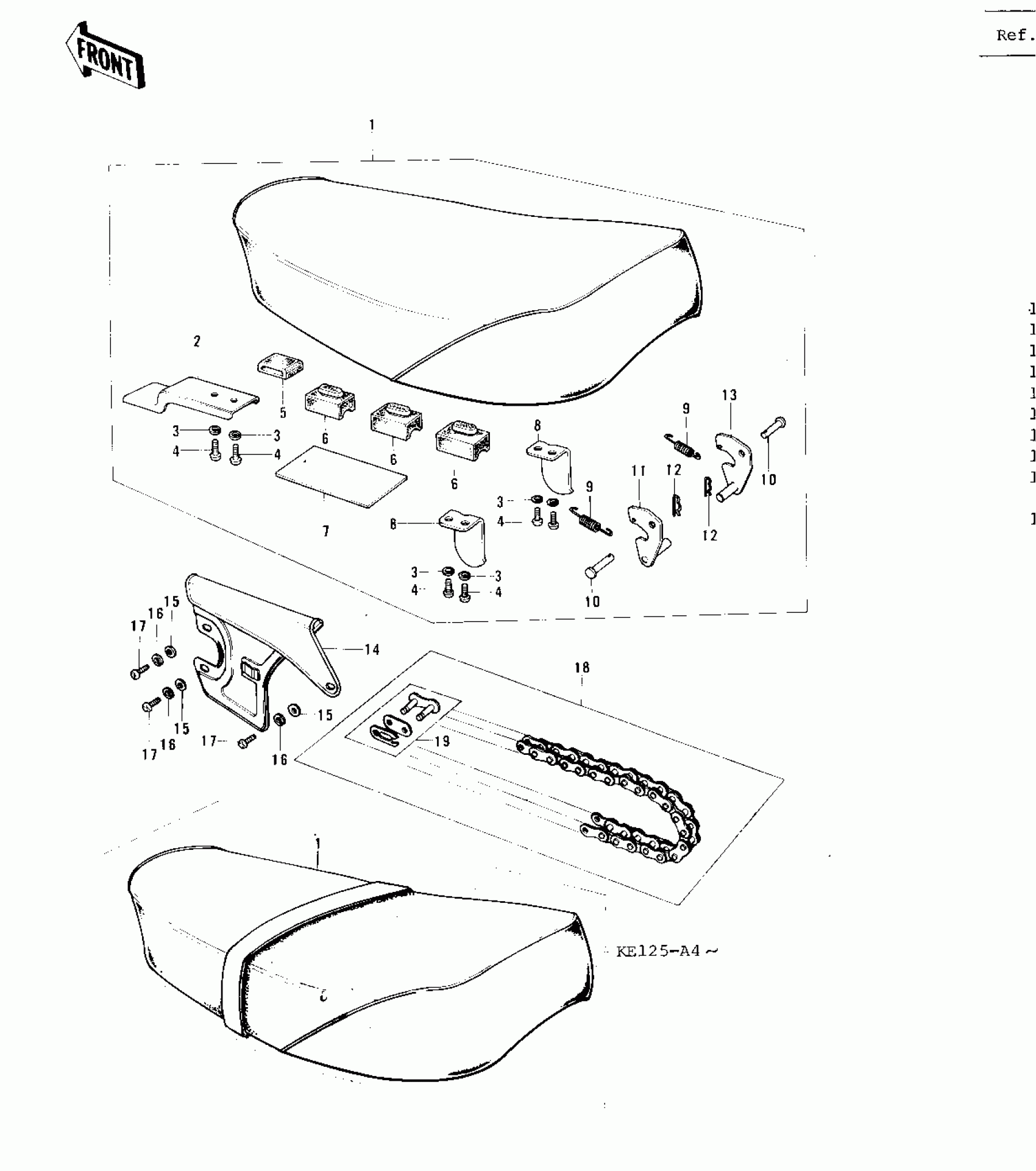

Kawasaki KE125 SEAT/CHAIN COVER/CHAIN ('76-'79) Diagram

SEAT ASSY,DUAL

SEAT-ASSY,DUAL

SEAT-ASSY,DUAL

BRACKET,DUAL SEAT

WASHER SPRING 6MM

SCREW-PAN-CROS,6X14

DAMPER,SEAT

DAMPER,SEAT

DAMPER RUBBER,BATERY

STOPPER,SEAT

SPRING,HOOK

PIN DUAL SEAT PIVOT

HOOK,SEAT,L.H

COTTER PIN

HOOK,SEAT,R.H

CASE-CHAIN,FR BLACK

WASHER PLAIN

WASHER SPRING 6MM

SCREW-PAN-CROS,6X14

DR CHAIN 428X118H

JOINT-CHAIN
