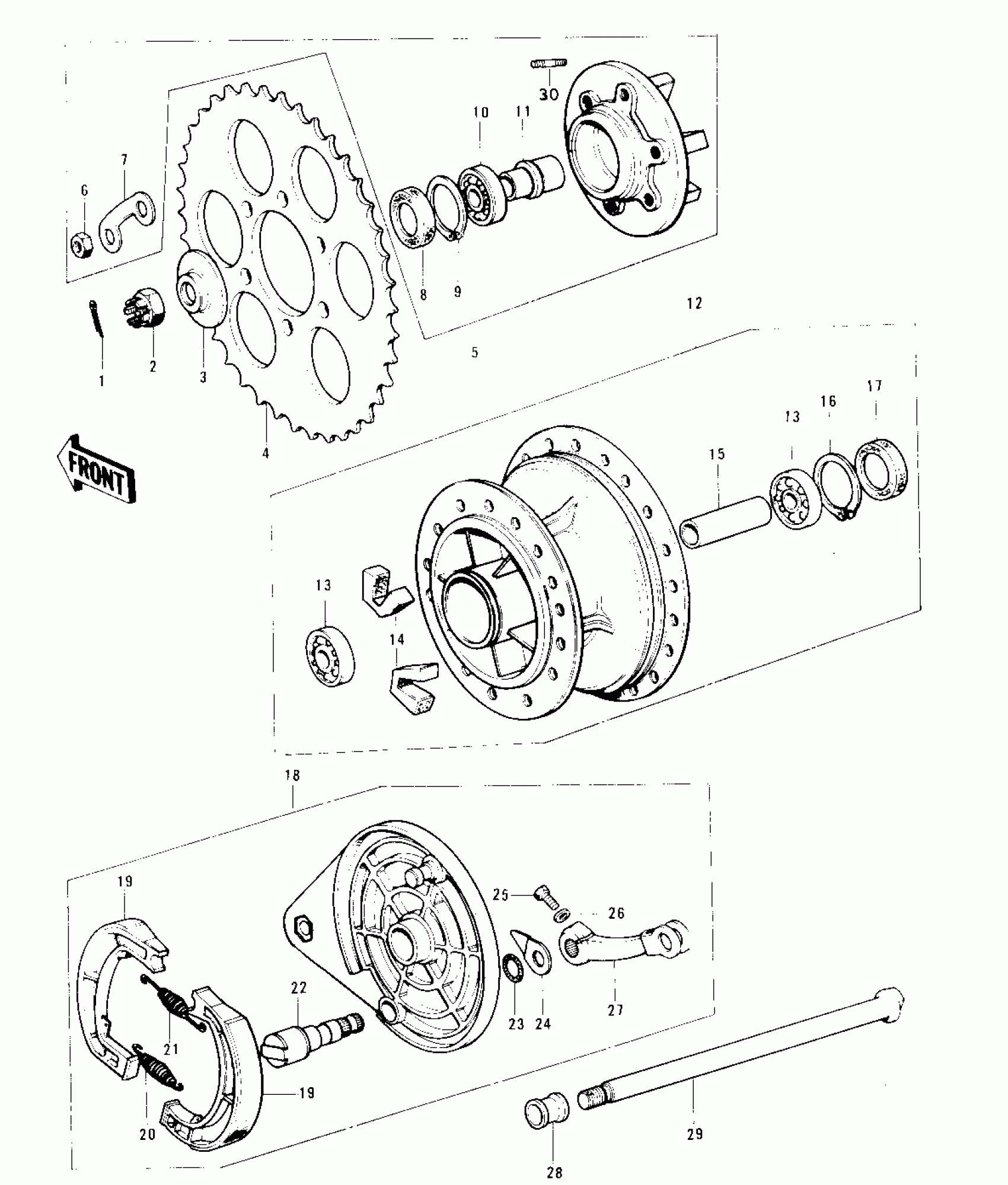

Kawasaki KE125 REAR HUB/BRAKE ('76-'79) Diagram
#
Description
Price
1
PIN-COTTER,4.0X35
550D4035
$2.17
2
NUT,CASTLE,14MM
92103-006
$25.81
3
COLLAR,REAR AXLE,L.H
42032-048
$81.06
3
COLLAR,RR AXLE,L.H
42032-058
$35.38
4
REAR SPROCKET.50T
42041-146
Unavailable
5
COUPLING ASSY,RR HUB
42008-031
$115.39
5
COUPLING ASSY,RR HUB
42008-031
$115.39
6
NUT,8MM
311B0800
$0.67
7
WASHER,SPROCKET LOCK
92088-019
$6.22
8
SEAL-OIL,26X42X8
92050-060
$18.15
9
RING-SNAP,42MM
92033-1041
$6.16
10
BEARING-BALL,#6004C3
601B6004
$12.47
11
SLEEVE,RR HUB COUPLNG
42036-018
$25.30
12
DRUM ASY,RR BRK,BUFF
42005-046-80
$253.56
13
BEARING-BALL,#6202C3
601B6202
$8.64
14
DAMPER,REAR HUB SHOCK
42014-023
Unavailable
15
SPACER,RR HUB BEARING
42010-029
$22.11
16
CIRCLIP-TYPE-C,35MM
481J3500
$1.96
17
OIL SEAL,22X35X8
654A223508
$5.61
18
PANEL-ASY,RR BRK,BUFF
42006-072-80
$233.58
19
SHOE,BRAKE
42019-010
$38.07
20
SPRING,BRAKE SHOE
92081-1550
$9.49
21
SPRING,BRAKE SHOE
92081-1766
$8.03
22
CAM SHAFT,REAR BRAKE
42026-025
$18.22
23
RING-O,BRAKE CAM
92055-004
$4.80
24
INDICATOR,BRAKE SHOE
41085-002
$13.88
25
BOLT 6X22
112B0622
$3.48
26
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
27
LEVER,REAR BRAKE CAM
42029-030
$77.18
28
COLLAR,REAR AXLE,R.H
42032-047
Unavailable
28
COLLAR,RR AXLE,R.H
42032-057
$16.99
29
AXLE,REAR
42031-046
$72.34
30
STUD,8X17
92004-1015
$4.99
