Description

Price

1

EMBLEM,SIDE COVER

56018-224

Unavailable

1

MARK,SIDE COVER

56018-1036

$32.89

2

GROMMET,L.H SIDE COV

92071-080

Unavailable

3

COVER,LH SIDE,YELLOW

36001-1051-4B

$72.36

3

COVER-SIDE,LH,C.L.RED

36001-1051-4R

$69.98

3

COVER,L.H SIDE,C.BLUE

36001-049-4S

$42.33

3

COVER-SIDE,LH,GREEN

36001-1051-4U

$75.55

3

COVER,L.H,SIDE,F.RED

36001-1051-B1

$84.45

3

COVER,L.H,SIDE,M.BLUE

36001-1051-B4

$64.78

4

SCREW-PAN-CROS,6X14

220B0614

$1.48

5

WASHER SPRING 6MM

461F0600

$0.69

6

WASHER,6.5X20X1.6

92022-125

$1.40

7

TANK,OIL

52001-041

Unavailable

8

RING-O,20MM

92055-051

$5.59

9

GAUGE,OIL LEVEL

52015-002

$6.00

10

CLAMP,TUBE

92037-010

$3.92

11

PIPE,OIL

92059-106

Unavailable

12

GROMMET,OIL PIPE

92071-085

Unavailable

13

CAP-TANK,OIL

51049-1004

$14.79

14

TUBE-VINYL,5X400

700Q05400

Unavailable

15

CONNECTOR PIPE

92059-101

$9.12

16

TUBE-VINYL 7X480

700Q07480

$3.34

16

700Q07450 (Canada)

700Q07550

$4.09

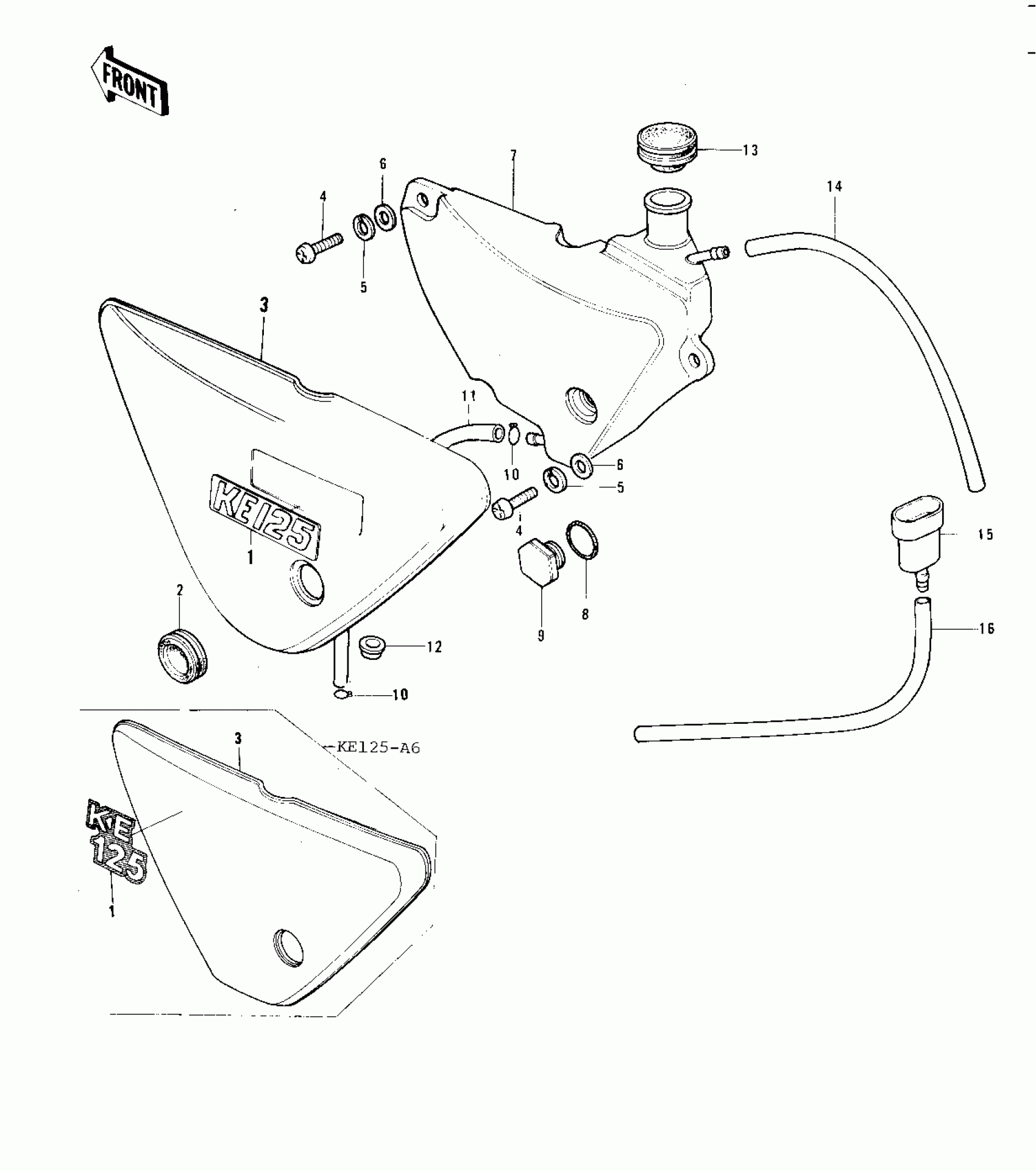

Kawasaki KE125 OIL TANK/SIDE COVER ('76-'79) Diagram

EMBLEM,SIDE COVER

MARK,SIDE COVER

GROMMET,L.H SIDE COV

COVER,LH SIDE,YELLOW

COVER-SIDE,LH,C.L.RED

COVER,L.H SIDE,C.BLUE

COVER-SIDE,LH,GREEN

COVER,L.H,SIDE,F.RED

COVER,L.H,SIDE,M.BLUE

SCREW-PAN-CROS,6X14

WASHER SPRING 6MM

WASHER,6.5X20X1.6

TANK,OIL

RING-O,20MM

GAUGE,OIL LEVEL

CLAMP,TUBE

PIPE,OIL

GROMMET,OIL PIPE

CAP-TANK,OIL

TUBE-VINYL,5X400

CONNECTOR PIPE

TUBE-VINYL 7X480

700Q07450 (Canada)
