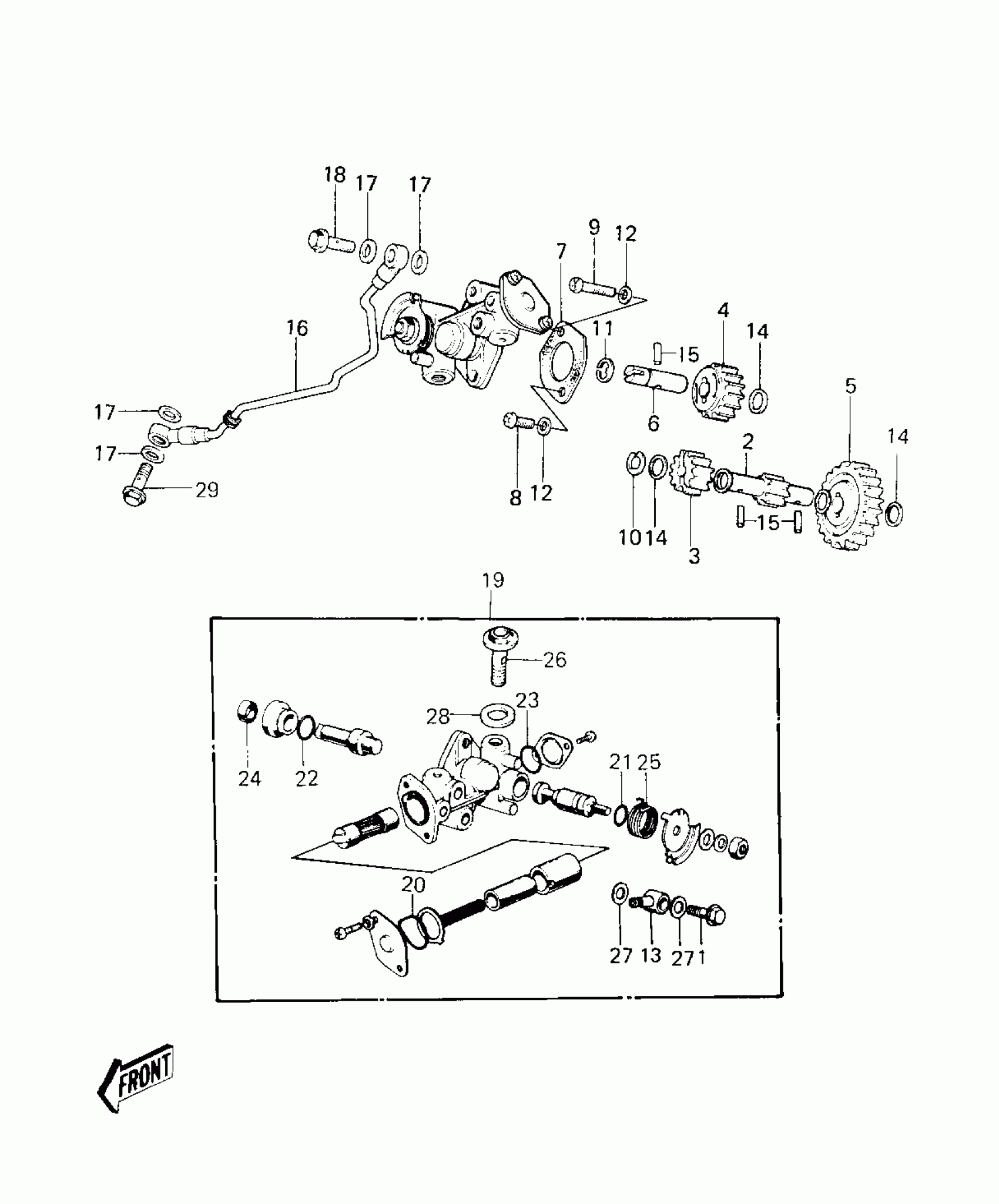

Kawasaki KE125 OIL PUMP ('80-'81 A7/A8) Diagram
#
Description
Price
1
BOLT,BANJO,L=16
92060-013
Unavailable
2
PINION,TACHOMETER
13224-010
Unavailable
3
GEAR,OIL PUMP
16085-020
Unavailable
4
GEAR,OIL PUMP
16085-021
Unavailable
5
GEAR,OIL PUMP
16085-022
Unavailable
6
SHAFT,OIL PUMP GEAR
16086-003
Unavailable
7
GASKET,OIL PUMP
11060-1160
Unavailable
8
SCREW-PAN-CROS
220B0514
Unavailable
9
SCREW-PAN-CROS
220B0528
Unavailable
10
CIRCLIP-TYPE-E,7MM
482J7000
Unavailable
11
CIRCLIP-TYPE-E,7MM
482J7000
Unavailable
12
WASHER,5.5X10.5X0.8
92022-037
Unavailable
13
FITTING,BANJO
92061-009
Unavailable
14
WASHER,THRUST
92026-095
Unavailable
15
PIN,DOWEL
92042-035
Unavailable
16
PIPE,OIL
16134-022
Unavailable
17
WASHER OIL PUMP BANJO
92022-077
Unavailable
18
BOLT,BANJO,L=16
92060-013
Unavailable
19
OIL PUMP ASSY
16082-1014
Unavailable
20
RING-O,CAP,BANJO SIDE
16088-002
Unavailable
21
SEAL-OIL,CAMSHAFT,"X"TYPE
92049-1294
Unavailable
22
RING-O,OIL PUMP SHAFT
16090-002
Unavailable
23
RING-O,CAP,CAMSHAFT SIDE
16090-004
Unavailable
24
SEAL-OIL,OIL PUMP SHAFT
16091-001
Unavailable
25
SPRING,OIL PUMP LEVER
16093-007
Unavailable
26
BOLT,AIR VENT
92009-1010
Unavailable
27
WASHER OIL PUMP BANJO
92022-077
Unavailable
28
WASHER
92022-1006
Unavailable
29
BOLT,BANJO,L=13.5
92060-008
Unavailable
