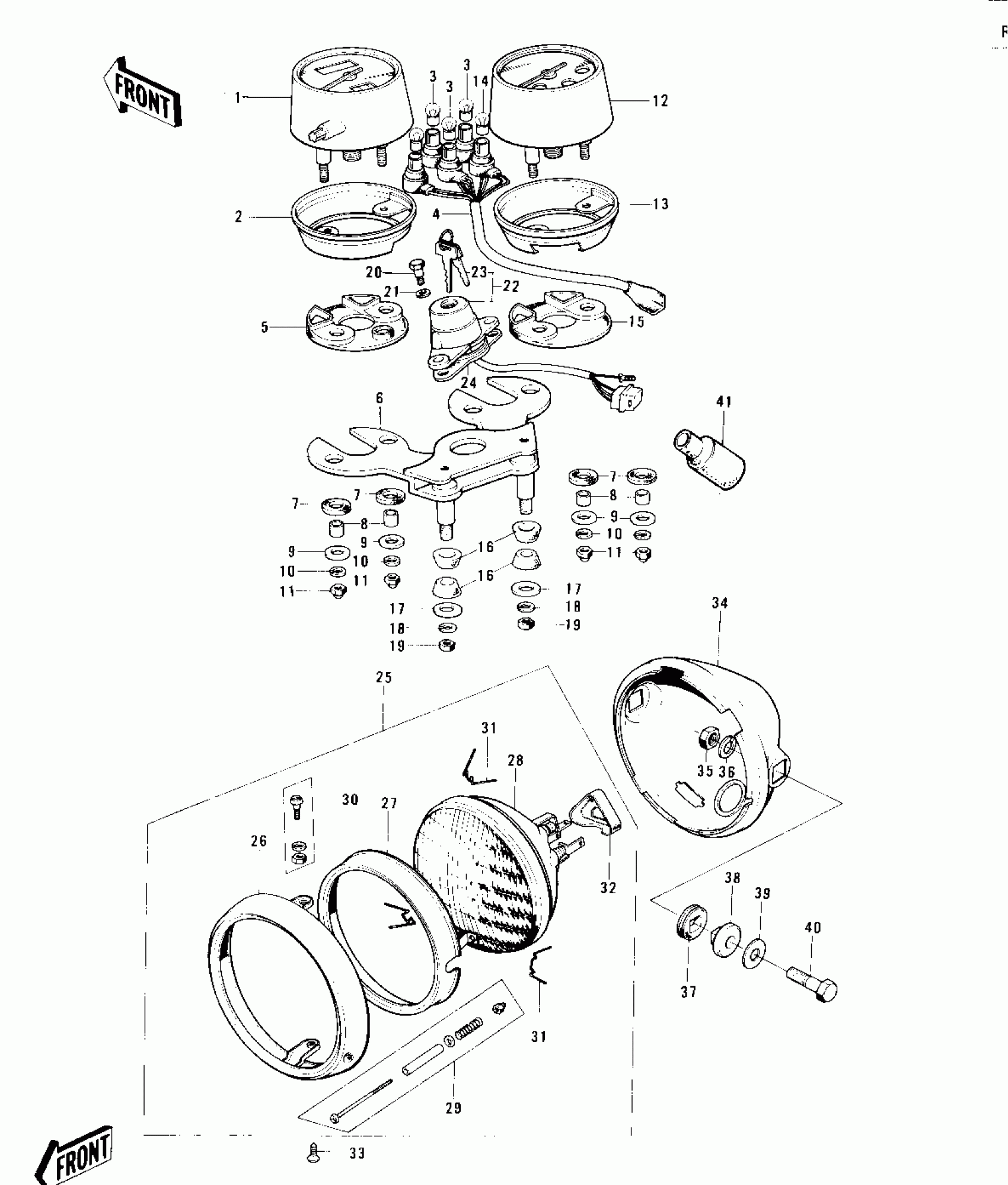

Kawasaki KE125 METERS/IGNITION SWITCH/HEADLIGHT ('76-'7 Diagram
#
1
SPEEDOMETER ASSY,MPH
25005-110
Unavailable
1
*** N.L.A.*** (Canada)
25005-112
$224.00
2
COVER-SPEEDOMETER
25012-017
$35.33
3
BULB,6V 1.7W
92069-024
$5.31
4
SOCKET,SPEEDOMETER
25011-038
$44.65
5
SHOCK DAMPER,METER
25019-018
Unavailable
6
BRACKET,METER
25008-034
$68.57
7
DAMPER RUBBER,METER
25019-019
Unavailable
8
COLLAR,METER FITTING
25021-004
$5.03
9
WASHER,5.2X18X1.2
92022-285
$7.88
11
NUT-CAP,5MM
322N0500
$2.85
12
TACHOMETER ASSY
25015-027
$234.44
13
COVER,TACHOMETER
25012-018
Unavailable
14
BULB,6V 3W,CLEAR
92069-053
$4.18
15
DAMPER RUBBER,METER
25019-020
$7.41
16
DAMPER RUBBER,METER
92075-248
Unavailable
17
WASHER,6.5X22X1.6
92022-237
$3.92
18
WASHER SPRING 6MM
461F0600
$0.69
19
NUT 6MM
311B0600
$0.93
20
BOLT-HEX HEAD,6MM
92007-026
Unavailable
21
WASHER PLAIN 8MM
410B0800
$0.93
22
SWITCH ASSY.IGNITION
27005-059
Unavailable
22
SWITCH ASSY,IGNITION
27005-1023
Unavailable
22
SWITCH ASSY,IGNITION
27005-080
$49.31
23
KEY SET #431
27008-054-31
$21.72
23
KEY SET,#450
27008-054-50
$21.68
23
KEY-LOCK,BLANK
27008-1024
Unavailable
23
KEY-LOCK,BLANK
27008-1025
Unavailable
23
KEY,BLANK
27008-1026
Unavailable
23
KEY,BLANK
27008-1027
Unavailable
24
DAMPER RUBBER
92075-077
$9.19
25
LAMP UNIT,HEAD
23003-021
$142.21
26
RIM,HEAD LAMP
23006-042
$62.05
27
RETAINER,SEALED BEAM
23072-002
$39.06
28
LENS-COMP,"4020" MARK
23007-055
Unavailable
29
SCREW ASSY,FOCUS AJST
23013-5001
Unavailable
30
SCREW SET,LENS UNIT
23013-007
$6.35
31
SPRING,HEAD LAMP LENS
23009-015
$5.44
32
COVER,HEAD LAMP SOCKET
23081-001
$8.08
33
SCREW,PAN HEAD,5X14
23019-025
$0.47
34
BODY,HEAD LAMP,F.BLAK
23005-050-21
$64.66
35
NUT-HEX-FINE,10MM
314B1000
$0.67
36
WASHER SPRING 10MM
461F1000
$0.67
37
DAMPER RUBBER
23066-011
Unavailable
38
COLLAR
23052-005
$15.16
39
WASHER-PLAIN,10MM
411D1000
$4.78
40
BOLT,HEX HEAD,10X30
92007-041
Unavailable
41
COVER,WIRING HARNESS
26009-008
$6.44
