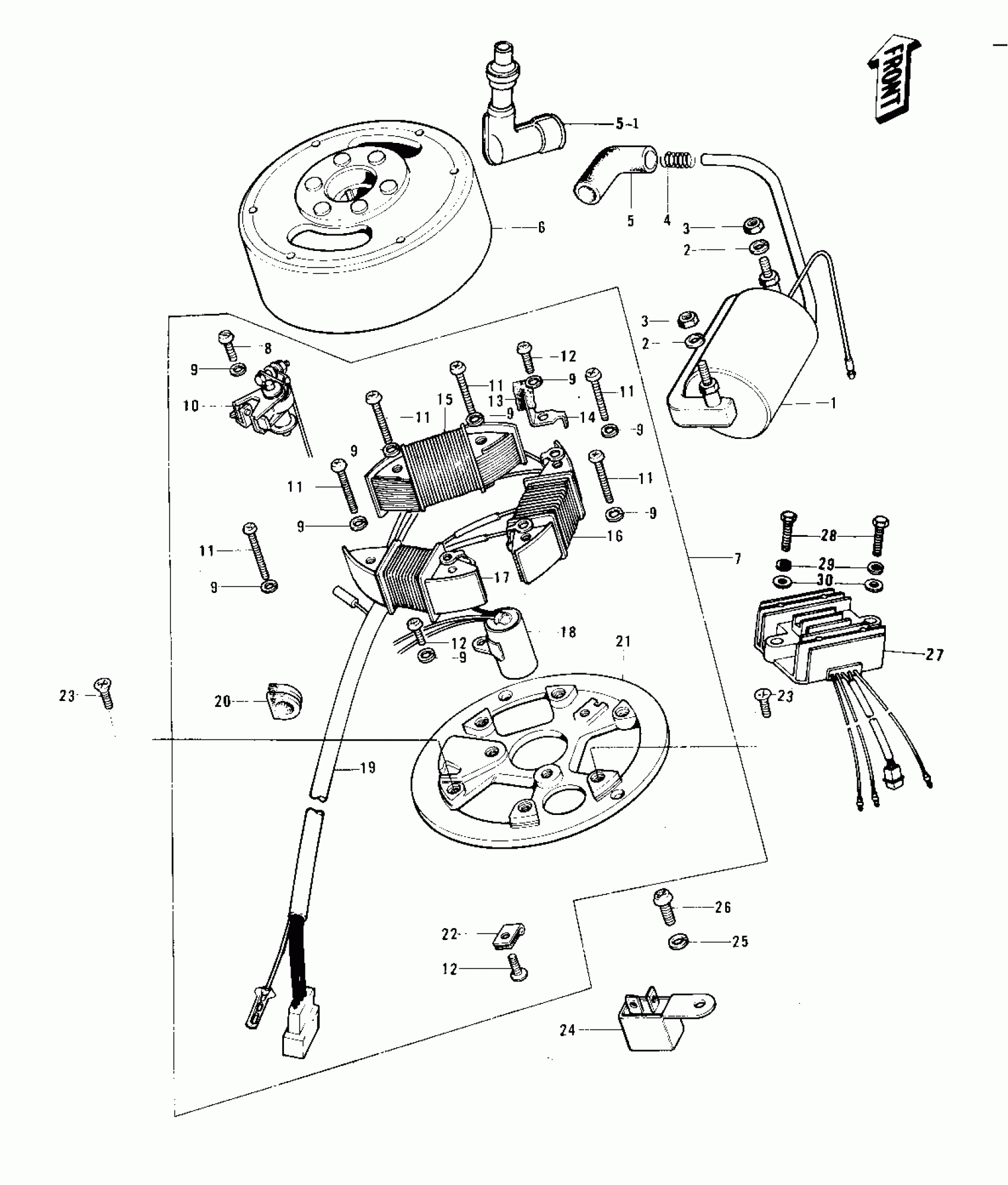

Kawasaki KE125 IGNITION/GENERATOR/REGULATOR ('76-'79) Diagram
#
Description
Price
1
COIL,IGNITION
21121-1047
Unavailable
2
WASHER SPRING 6MM
461F0600
$0.69
3
NUT 6MM
311B0600
$0.93
4
TERMINAL,SPARK PLUG CAP
92101-001
$1.69
5
CAP-SPARK PLUG
21130-009
$22.10
5-1
CAP-ASSY-PLUG
21160-005
$51.69
6
FLYWHEEL
21050-016
$625.88
6
FLYWHEEL,MAGNETO
21050-1008
$438.57
7
STATOR ASSY
21003-025
$293.79
7
STATOR
21003-1014
Unavailable
8
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
9
WASHER SPRING 4MM
461F0400
Unavailable
10
BREAKER,CONTACT
21008-006
$49.36
11
SCREW-PAN-CROS
220E0430
$2.95
12
SCREW PAN HEAD 4X6
220B0406
$1.67
13
BRUSH,OIL
21019-005
$5.39
14
HOLDER,OIL FELT
21038-002
Unavailable
15
COIL,LIGHTING
21047-1007
$84.77
15
COIL-CHARGING,B
59031-1002
Unavailable
16
COIL A LIGHTING
21047-019
$175.51
16
COIL-CHARGING,A
59031-1001
$94.39
17
COIL-EXCITING
21049-1004
Unavailable
17
COIL-EXCITING
21049-1004
Unavailable
18
CONDENSER
21013-006
$29.01
19
WIRING HARNESS,MAGNT
21029-028
Unavailable
19
HARNESS,MAGNETO
26001-1077
$66.67
20
GROMMET
21017-002
$5.17
21
PLATE-COIL,MAGNETO
21048-1002
$69.95
22
CLAMP,WIRING HARNESS
21037-002
Unavailable
23
SCREW-CSK-CROS,6X14
221B0614
$3.46
24
RECTIFIER
21061-015
Unavailable
25
WASHER-PLAIN,5MM
411B0500
$0.46
26
SCREW PAN HEAD 5X10
220B0510
$0.69
27
REGULATOR-VOLTAGE
21066-1012
Unavailable
28
BOLT-UPSET
112G0625
$3.62
29
WASHER SPRING 6MM
461F0600
$0.69
30
WASHER PLAIN 6MM
411B0600
$2.84
