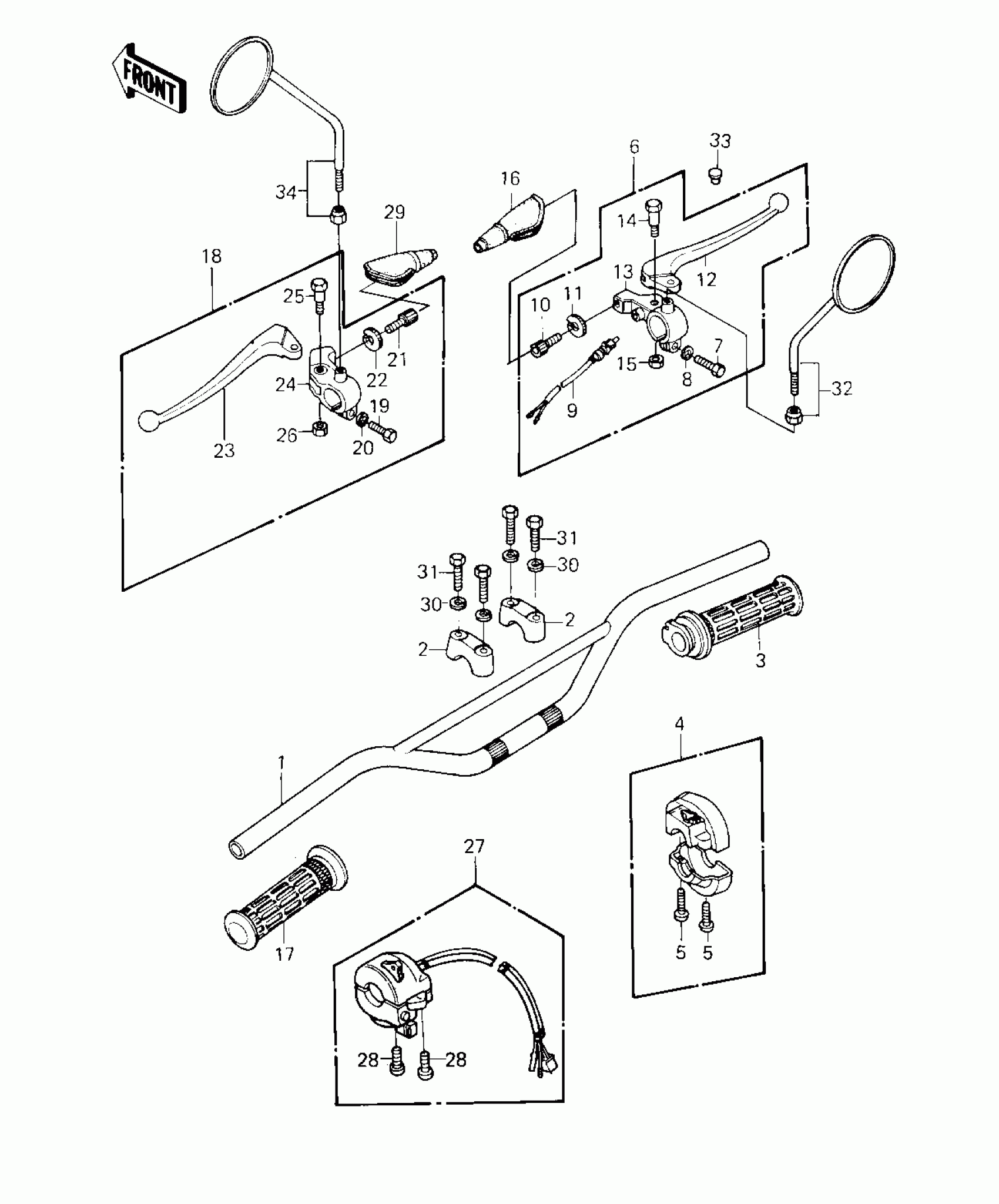

Kawasaki KE125 HANDLEBAR ('80-'81 A7/A8) Diagram
#
Description
Price
1
HANDLEBAR
46004-033
Unavailable
2
HOLDER,HANDLEBAR
46012-014
Unavailable
3
GRIP-ASSY,THROTTLE
46019-1005
$37.37
4
HOUSING-ASSY-CONTROL,RH
46091-1041
Unavailable
5
SCREW-PAN-CROS
220B0518
$4.62
6
LEVER ASSY,FRONT BRK
46021-029
Unavailable
6
LEVER-ASSY-GRIP,BRAKE
46021-031
$47.47
7
BOLT HEX HEAD 6X25
110N0625
$5.46
8
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
9
SWITCH,FR BRAKE LAMP
27021-004
$35.78
10
SCREW,CABLE ADJUST
46055-010
$28.86
10
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
11
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
12
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
13
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
$40.69
14
BOLT,5X22
92007-046
$7.62
15
NUT,LOCK,5MM
92019-014
$4.50
16
BOOT,LEVER HOLDER
49006-1017
$18.72
17
GRIP,LH
46075-1004
$16.08
18
LEVER-ASSY-GRIP,CLUTCH
46076-044
$41.66
19
BOLT HEX HEAD 6X25
110N0625
$5.46
20
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
21
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
22
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
23
LEVER-GRIP,CLUTCH
46092-015
Unavailable
24
HOLDER,F.BLACK
46094-011-21
Unavailable
25
BOLT,5X22
92007-046
$7.62
26
NUT,LOCK,5MM
92019-014
$4.50
27
HOUSING ASSY,L.H.
46091-1089
$92.21
27
HOUSING-ASSY-CONTROL
46091-1097
$90.21
28
SCREW PAN HEAD 5X22
220B0522
$0.74
29
BOOT,LEVER HOLDER
49006-1017
$18.72
30
WASHER SPRING 8MM
461F0800
$0.40
31
BOLT 8X38
92001-1405
$16.50
33
CAP-RR VIEW MIRROR
92102-009
Unavailable
34
REAR VIEW MIRROR
56003-014
$54.50
