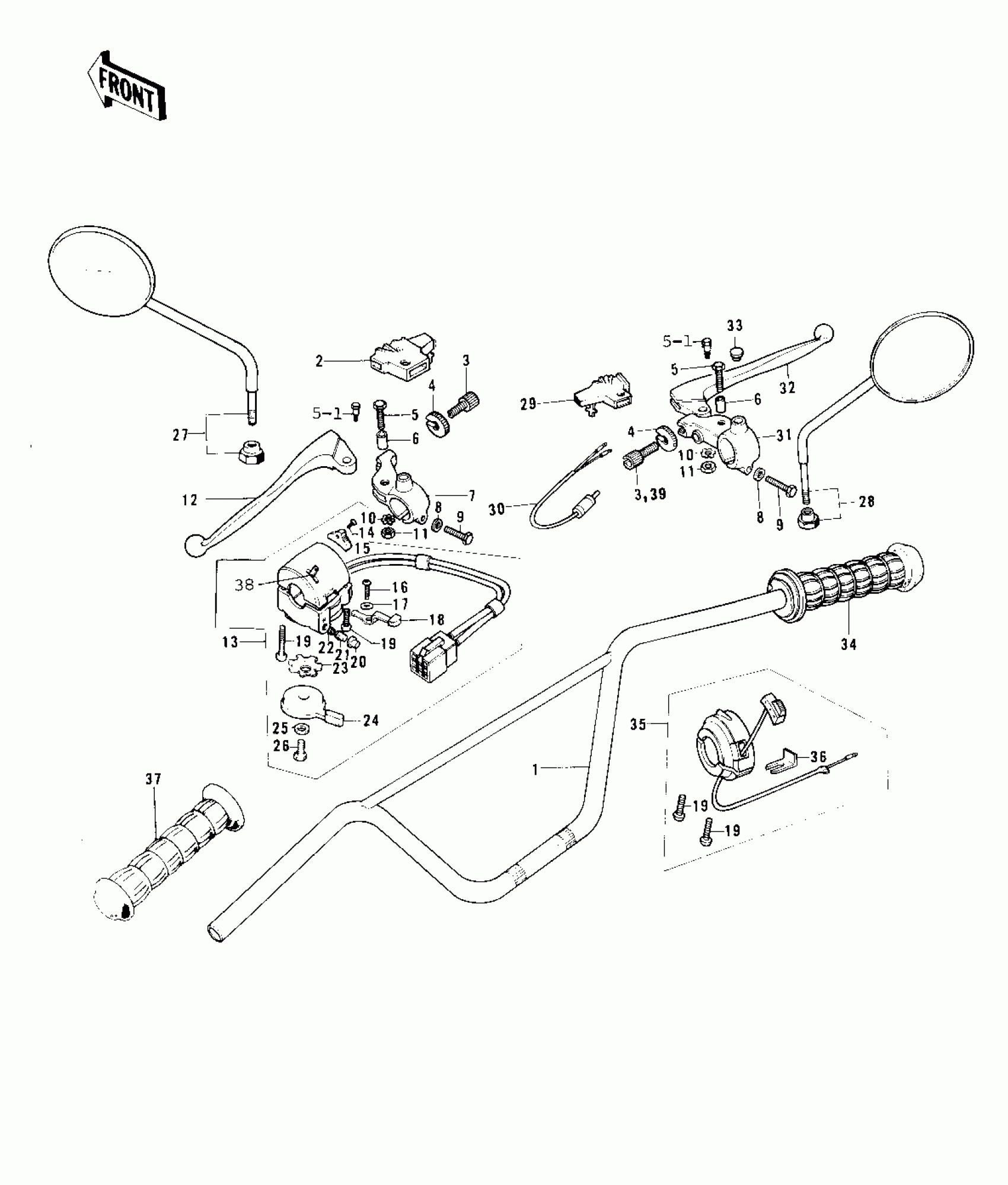

Kawasaki KE125 HANDLEBAR ('76-'79) Diagram
#
1
HANDLEBAR
46004-033
Unavailable
2
BOOT,LEVER HOLDER
49006-1017
$18.72
3
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
4
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
5
BOLT HEX HEAD 5X20
92007-020
Unavailable
5-1
BOLT,5X22
92007-046
$7.62
6
COLLAR LEVER
46059-011
Unavailable
7
HOLDER,F.BLACK
46094-011-21
Unavailable
8
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
9
BOLT HEX HEAD 6X25
110N0625
$5.46
10
WASHER LOCK 5MM
464H0500
$1.86
11
NUT-HEX,5MM
312B0500
$0.46
11
NUT,LOCK,5MM
92019-014
$4.50
12
LEVER-GRIP,CLUTCH
46092-015
Unavailable
13
CASE ASSY,L.H.BLACK
46091-023-21
$95.38
14,15,
L.H GRIP SWITCH KIT
99990-531
Unavailable
14
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
15
KNOB-L.H SWITCH
46044-011
Unavailable
16
SCREW PAN HEAD 3X5
220B0305A
$0.59
17
WASHER
92095-010
$3.64
18
KNOB-SWITCH
46044-010
Unavailable
19
SCREW, PAN HEAD, 5 X 25
220B0525A
$3.67
20
SWITCH,PUSH BUTTON
27010-1009
$9.20
21
SWITCH,PUSH BUTTON
27010-1009
$9.20
22
SWITCH,PUSH BUTTON
27010-1009
$9.20
23
WASHER LOCK
92095-012
Unavailable
24
LEVER STARTER
46096-008-10
$25.62
25
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
26
BOLT,6X10
112G0610
$0.58
26
SCREW PAN HEAD 6X10
220B0610
$3.14
27
MIRROR-ASSY,LH
56003-009
Unavailable
28
MIRROR-ASSY,RH
56002-020
$67.12
29
BOOT,LEVER HOLDER
49006-1017
$18.72
30
SWITCH,FR BRAKE LAMP
27021-004
$35.78
31
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
$40.69
32
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
33
CAP-RR VIEW MIRROR
92102-009
Unavailable
34
GRIP ASSY,THROTTLE
46019-039
Unavailable
35
CASE ASSY,R.H
46018-047
Unavailable
36
HOLDER,CONTROL CABLE
46037-023
Unavailable
36
HOLDER,CONTROL
46037-024
Unavailable
37
RUBBER,L.H GRIP
46075-029
$12.53
38
SWITCH ASSY,L.H
46089-015
Unavailable
39
SCREW,CABLE ADJUST
46055-010
$28.86
