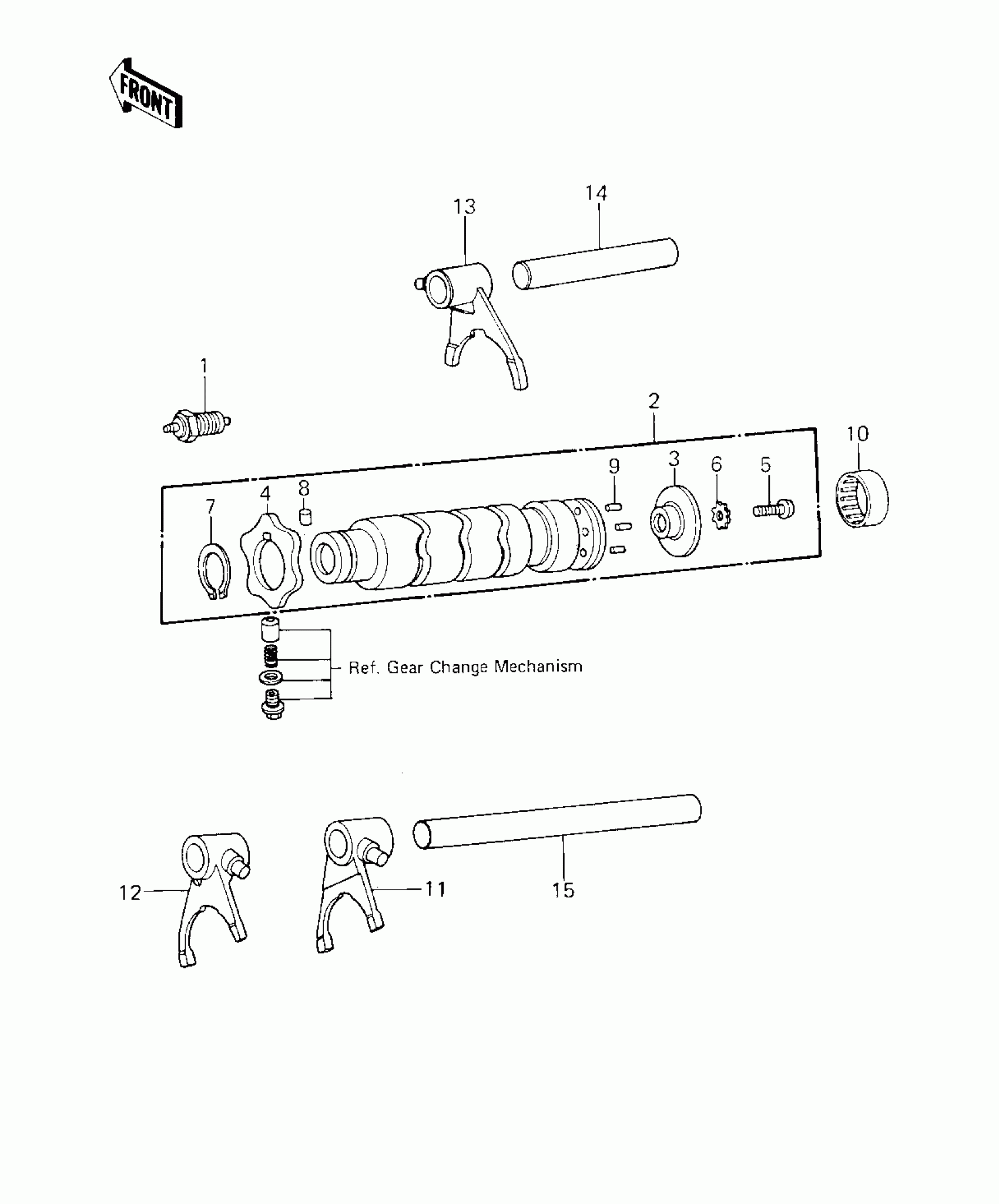

Kawasaki KE125 GEAR CHANGE DRUM & FORKS ('80-'81 A7/A8) Diagram

#

Description

Price

1

SWITCH,NEUTRAL

13151-019

Unavailable

2

DRUM ASSY,GEAR SHIFT

13239-018

Unavailable

3

PLTE,SHIFT DRUM PIN

13142-017

Unavailable

4

CAM-CHANGE DRUM

13145-1058

Unavailable

5

SCREW-PAN-CROS,6X14

220B0614

Unavailable

6

WASHER LOCK 6MM

464H0600

Unavailable

7

CIRCLIP-TYPE-C,30MM

480J3000

Unavailable

8

ROLLER,4X6

610A0406

Unavailable

9

PIN,DOWEL,4X13.8

92042-030

Unavailable

10

BEARING,NEEDLE

92046-043

Unavailable

11

FORK,SELECTOR,LOW&4TH

13140-058

Unavailable

12

FORK,SELECTOR,2ND&3RD

13140-059

Unavailable

13

FORK,SELECTOR,5TH&TOP

13140-060

Unavailable

14

ROD-SHIFT,10X80

13209-014

Unavailable

15

ROD-SHIFT,10X102

49047-1060

Unavailable
