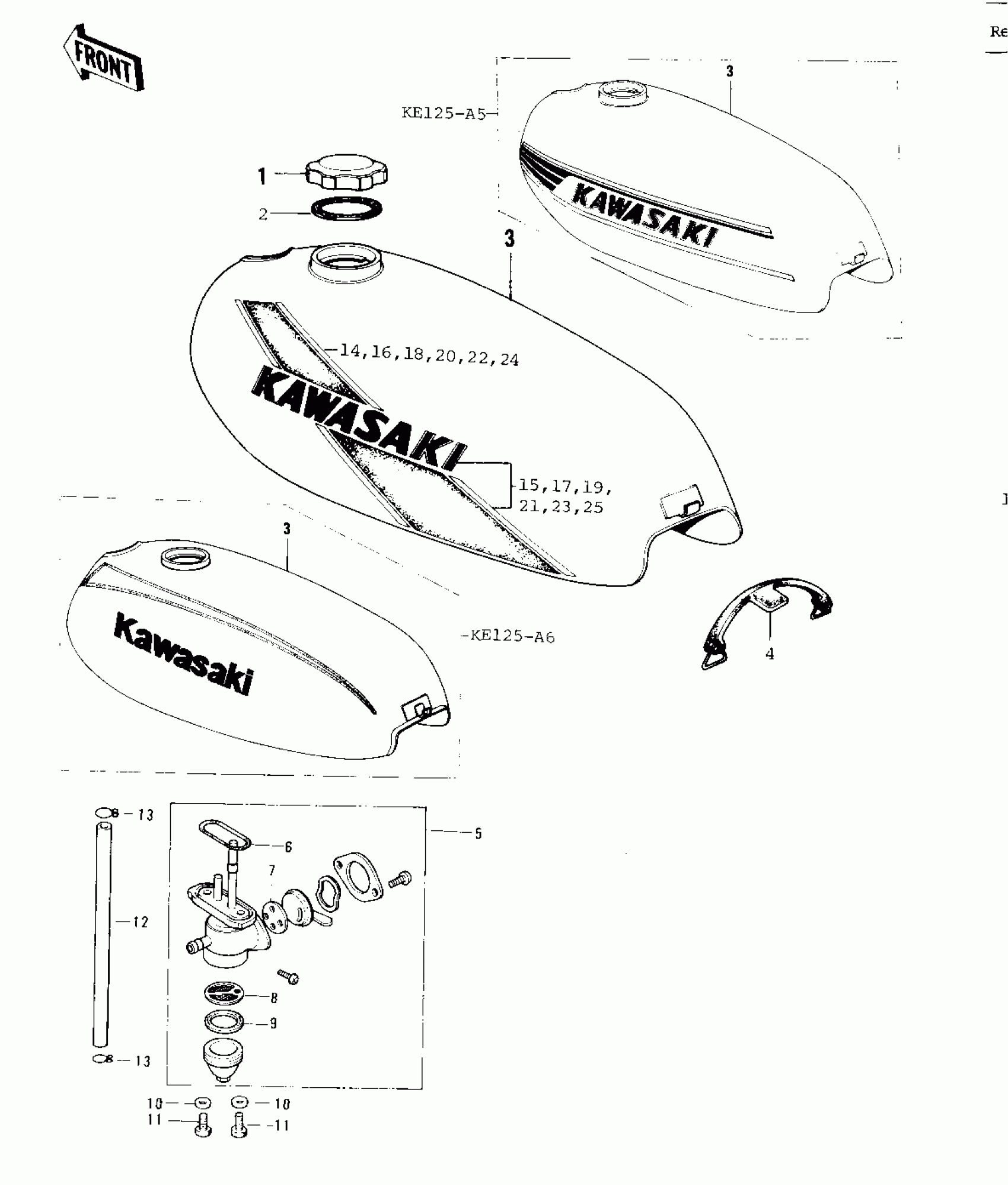

Kawasaki KE125 FUEL TANK ('76-'79) Diagram
#
Description
Price
1
CAP,FUEL TANK
51048-1013
Unavailable
2
GASKET,FUEL TANK CAP
51059-011
Unavailable
3
TANK-FUEL,P.YELLOW
51001-101-4B
$473.81
3
TANK-FUEL,C.LIGHT RED
51001-101-4R
$486.27
3
TANK-FUEL,C.C.BLUE
51001-101-4S
$467.49
3
TANK-FUEL,C.E.GREEN
51001-101-4U
$473.30
3
TANK-FUEL,F.RED
51001-101-B1
$474.10
3
TANK-FUEL,MARINE BLUE
51001-101-B4
$470.04
4
BAND,FUEL TANK
92072-049
$7.58
4
BAND,FUEL TANK
92072-075
$12.04
5
TAP ASSY,FUEL
51023-1001
Unavailable
5
TAP ASSY,FUEL
51023-1001
Unavailable
6
RING,TAP FLANGED
51039-003
$6.27
7
GASKET-FUEL COCK LEV
92065-094
Unavailable
8
STRAINER,FUEL
51038-008
$11.86
9
GASKET FUEL COCK CUP
51037-011
$4.36
10
WASHER-PLAIN
92022-183
$3.92
11
BOLT-HEX HEAD,6X16
92001-114
$4.37
12
PIPE,FUEL
92059-093
$38.33
13
CLAMP,TUBE
92037-010
$3.92
14
DECAL,FUEL TANK,L.H
56027-370-SP
Unavailable
15
DECAL,FUEL TANK,L.H
56027-371-SP
Unavailable
16
DECAL,FUEL TANK,R.H
56027-372-SP
Unavailable
17
DECAL,FUEL TANK,R.H
56027-373-SP
Unavailable
18
DECAL,L.H FL TK,UPPER
56029-050-SP
$8.82
19
DECAL,L.H FL TK,LOWER
56029-051-SP
$18.18
20
DECAL,R.H FL TK,UPPER
56029-052-SP
$8.82
21
DECAL,R.H FL TK,LOWER
56029-053-SP
$18.18
22
*** N.L.A.*** (Canada)
56029-054-SP
Unavailable
23
*** N.L.A.*** (Canada)
56029-055-SP
Unavailable
24
*** N.L.A.*** (Canada)
56029-056-SP
Unavailable
25
*** N.L.A.*** (Canada)
56029-057-SP
Unavailable
