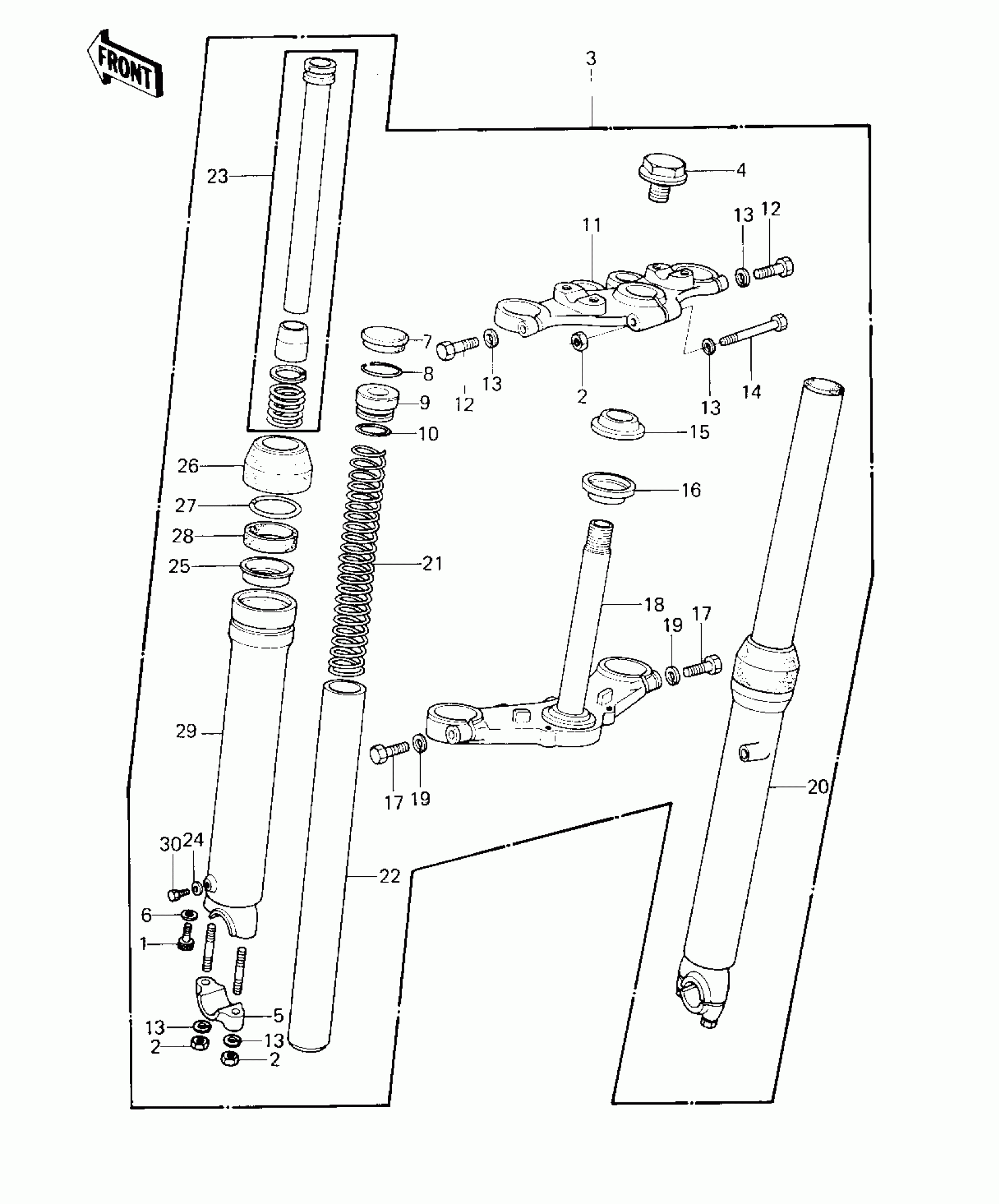

Kawasaki KE125 FRONT FORK ('80-'81 A7/A8) Diagram
#
Description
Price
1
BOLT,FORK CYLINDER
44041-078
$9.89
2
NUT,LOCK,8MM
92015-1124
$5.42
3
FORK-FRONT
44001-1230
$707.19
3
FORK-FRONT
44001-1230
$707.19
4
BOLT,STEERING STEM HE
92001-1741
Unavailable
5
HOLDER,FRONT AXLE
44063-009
$38.37
6
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
7
CAP,RUBBER,FORK TOP
11012-1119
Unavailable
8
RING-SNAP
44044-023
$5.46
9
SEAT-FORK SPRING
44029-022
$11.61
10
RING-O
44046-025
$6.57
11
HEAD,STEERING STEM
44039-1030
$217.18
12
BOLT,8X40
92001-1063
$9.63
13
WASHER SPRING 8MM
461F0800
$0.40
14
BOLT,HEX HEAD,8X55
92001-1064
Unavailable
15
RACE,STEERING STEM BEARING
92047-010
$10.51
16
SEAL,STEERING STEM
44010-027
Unavailable
17
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
18
STEM,STEERING
44037-1042
$139.77
19
WASHER SPRING 10MM
461F1000
$0.67
20
TUBE,RH,FORK OUTER
44006-1045
$186.44
21
SPRING,FORK
44026-1049
$49.70
22
TUBE,FRONT INNER
44013-1033
$422.26
23
CYLINDER-FORK
44022-1037
$66.03
24
GASKET,DRAIN PLUG
44045-047
$9.34
25
SPACER,OUTER TUBE
92026-1073
$10.48
26
DUST SHIELD,FORK
44010-026
Unavailable
27
RING-SNAP,45MM
44044-020
$13.58
28
OIL SEAL,FORK
44009-018
Unavailable
29
TUBE,LH,FORK OUTER
44005-1045
$186.44
30
BOLT HEX HEAD 6X8
110B0608
$0.18
