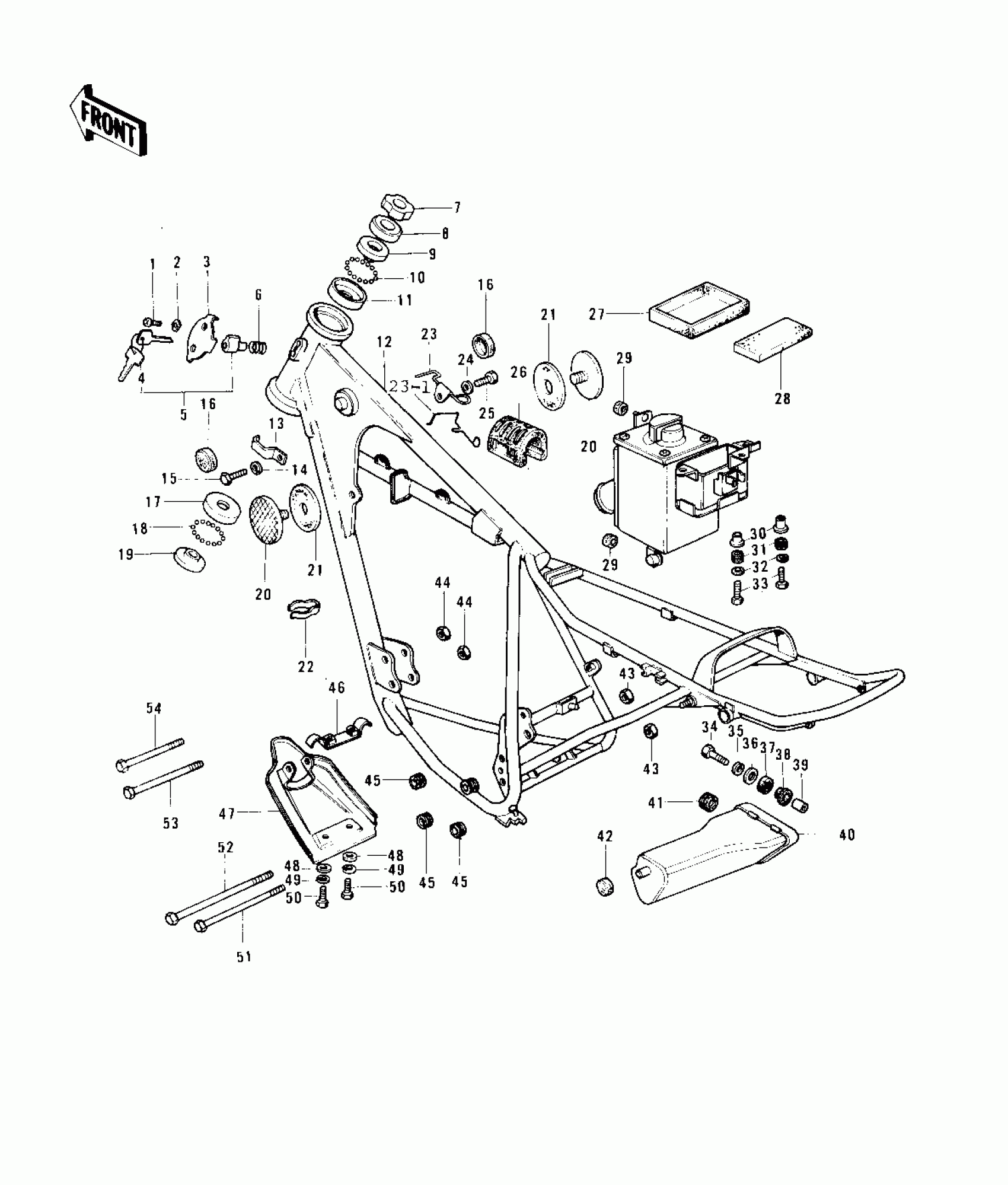

Kawasaki KE125 FRAME/FRAME FITTINGS ('76-'79) Diagram
#
1
SCREW,3.51MM
92008-007
$4.11
2
WASHER,WAVE
92097-003
$4.50
3
CAP,STEERING LOCK
11012-1134
$6.87
4
KEY SET #431
27008-054-31
$21.72
4
KEY SET #432
27008-054-32
$15.65
4
KEY SET #433
27008-054-33
$15.43
4
KEY SET # 434
27008-054-34
Unavailable
4
KEY SET #435
27008-054-35
$21.68
4
KEY SET #436
27008-054-36
Unavailable
4
KEY SET #437
27008-054-37
Unavailable
4
KEY SET #438
27008-054-38
$21.72
4
KEY SET #439
27008-054-39
Unavailable
4
KEY SET #440
27008-054-40
$15.43
5
LOCK-ASSY,STEERING
27016-042
$45.68
6
SPRING,STEERING LOCK
27032-001
$5.25
7
NUT,STEERING LOCK,25MM
92090-022
$21.61
8
CAP,STEERING STEM
46098-012
Unavailable
9
RACE,STEERING STEM BEARING
92047-014
$12.72
10
BALL-STEEL,3/16
600A0600
$1.07
11
RACE,STEERING STEM BEARING
92048-009
$14.10
12
FRAME
32002-074
Unavailable
12
FRAME
32002-1065
Unavailable
13
CLAMP,WIRE HARNESS
92037-150
$6.63
14
WASHER SPRING 6MM
461F0600
$0.69
15
BOLT-UPSET 6X14
112B0614
Unavailable
16
DAMPER,FUEL TANK
92075-101
$6.22
17
RACE,STEERING STEM BEARING,LWR
92048-005
$12.37
18
BALL-STEEL,1/4
600A0800
$0.62
19
RACE,STEERING STEM BEARING
92047-010
$10.51
20
REFLECTOR,REFLEX,REAR
28012-009
$26.16
21
DAMPER,REFLECTOR
92094-011
$4.60
22
CLAMP
92037-093
$11.37
23
CLAMP,CABLE
92037-176
$6.64
23-1
CLAMP,CABLE
92037-176
$6.64
24
WASHER PLAIN 6MM
411B0600
$2.84
25
BOLT,6X10
112G0610
$0.58
25
BOLT-UPSET,6X12
112G0612
$1.45
26
DAMPER,FUEL TANK
92075-284
$19.86
27
DAMPER,BATTERY BOTTOM
32103-023
Unavailable
28
DAMPER,BATTERY
32103-027
$11.91
29
DAMPER RUBBER,CLENER
92075-217
$4.39
30
COLLAR
92027-153
$6.22
31
DAMPER RUBBER
92075-051
$3.92
32
WASHER SPRING 6MM
461F0600
$0.69
33
BOLT-UPSET,6X16
112G0616
$1.10
34
BOLT-UPSET
112G0625
$3.62
35
WASHER SPRING 6MM
461F0600
$0.69
36
WASHER,7X24X1.6
92022-228
$3.92
37
DAMPER,FEMALE
92075-175
$4.39
38
RUBBER,FENDER COVER
92075-174
$4.78
39
COLLAR,6.8X10X12
92027-162
$6.57
40
CASE,TOOL
32098-022
Unavailable
41
DAMPER RUBBER-OIL TNK
92075-150
Unavailable
42
DAMPER RUBBER
92075-107
Unavailable
43
NUT,10MM
92015-1429
$6.88
44
NUT,LOCK,8MM
92015-1124
$5.42
45
GROMMET
92071-056
$4.26
46
BRACKET,ENGINE GUARD
55016-008
Unavailable
47
GUARD,ENGINE
55011-020
Unavailable
48
WASHER,6.5X20X1.6
92022-125
$1.40
49
WASHER SPRING 6MM
461F0600
$0.69
50
BOLT-UPSET,6X16
112G0616
$1.10
51
BOLT,HEX HEAD,10X117
92001-1246
$12.89
51
BOLT,FLANGED,10X115
92001-1603
$10.65
52
BOLT,HEX HEAD,10X130
92001-1249
$7.24
53
UNAVAILABLE IN PRICE BOOK
110B0871
Unavailable
54
BOLT,HEX HEAD,8X65
110B0865
$0.78
