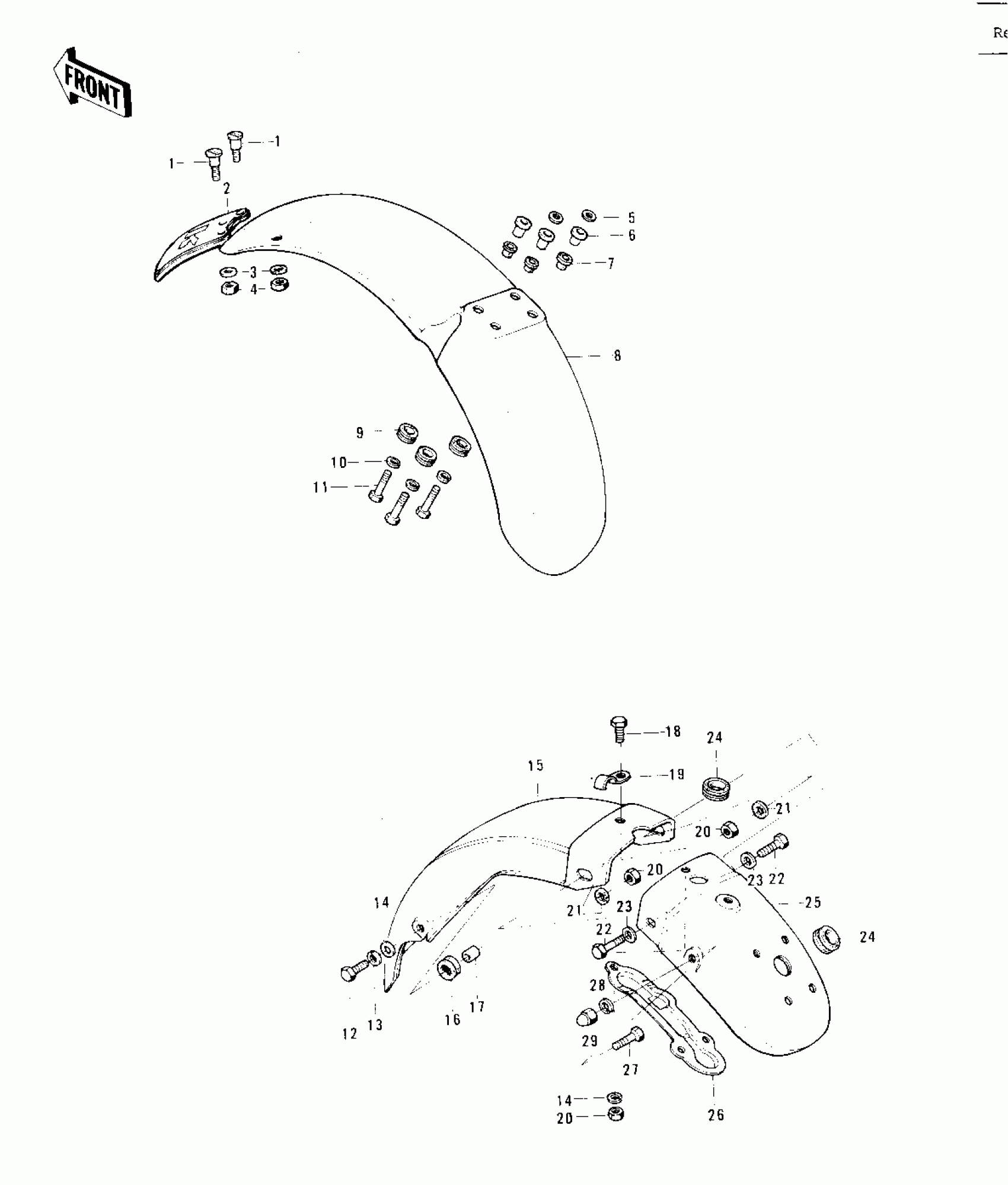

Kawasaki KE125 FENDERS ('76-'79) Diagram
#
Description
Price
1
BOLT,5X12
92001-134
Unavailable
2
FLAP,FRONT FENDER
35019-007
Unavailable
3
WASHER PLAIN 5MM
410B0500
$0.46
4
NUT-HEX
311B0500
$0.47
5
WASHER,7X24X1.6
92022-228
$3.92
6
COLLAR
92027-194
$5.52
7
DAMPER RUBBER
92075-103
$4.39
8
FENDER-FR,SILVER
35004-086-1W
Unavailable
8
FENDER-FR,WHITE
35004-1001-6V
Unavailable
8
FENDER-FR,M.BLUE
35004-1001-6N
$41.35
8
FENDER-FR,F.RED
35004-1001-6L
$65.56
9
DAMPER,FENDER
92075-121
$4.56
10
WASHER SPRING 6MM
461F0600
$0.69
11
BOLT-UPSET
112G0625
$3.62
12
BOLT-UPSET,6X16
112G0616
$1.10
13
WASHER SPRING 6MM
461F0600
$0.69
14
WASHER,6.5X20X1.6
92022-125
$1.40
15
FENDER-RR
35022-100
Unavailable
16
DAMPER RUBBER
92075-105
$4.38
17
COLLAR
92027-103
$3.58
18
BOLT-UPSET 6X14
112B0614
Unavailable
19
CLIP WIRING HARNESS
35024-002
Unavailable
20
NUT,LOCK,6MM
92019-008
$4.26
21
DAMPER RUBBER,FENDER
92075-223
$1.59
22
BOLT-UPSET
112G0618
$1.01
23
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
24
GROMMET,TAIL LAMP WIRE
92071-079
$3.72
25
FENDER-RR,M.SILVER
35022-101-1W
$98.83
25
FENDER-RR,WHITE
35022-101-A7
$103.55
25
FENDER-RR,F.RED
35022-101-B1
$114.82
25
FENDER-RR,M.BLUE
35022-101-B4
$114.82
26
GUSSET,REAR FENDER
35021-005
Unavailable
27
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
28
WASHER SPRING 8MM
461F0800
$0.40
29
NUT FUEL TANK FRONT
92020-007
Unavailable
