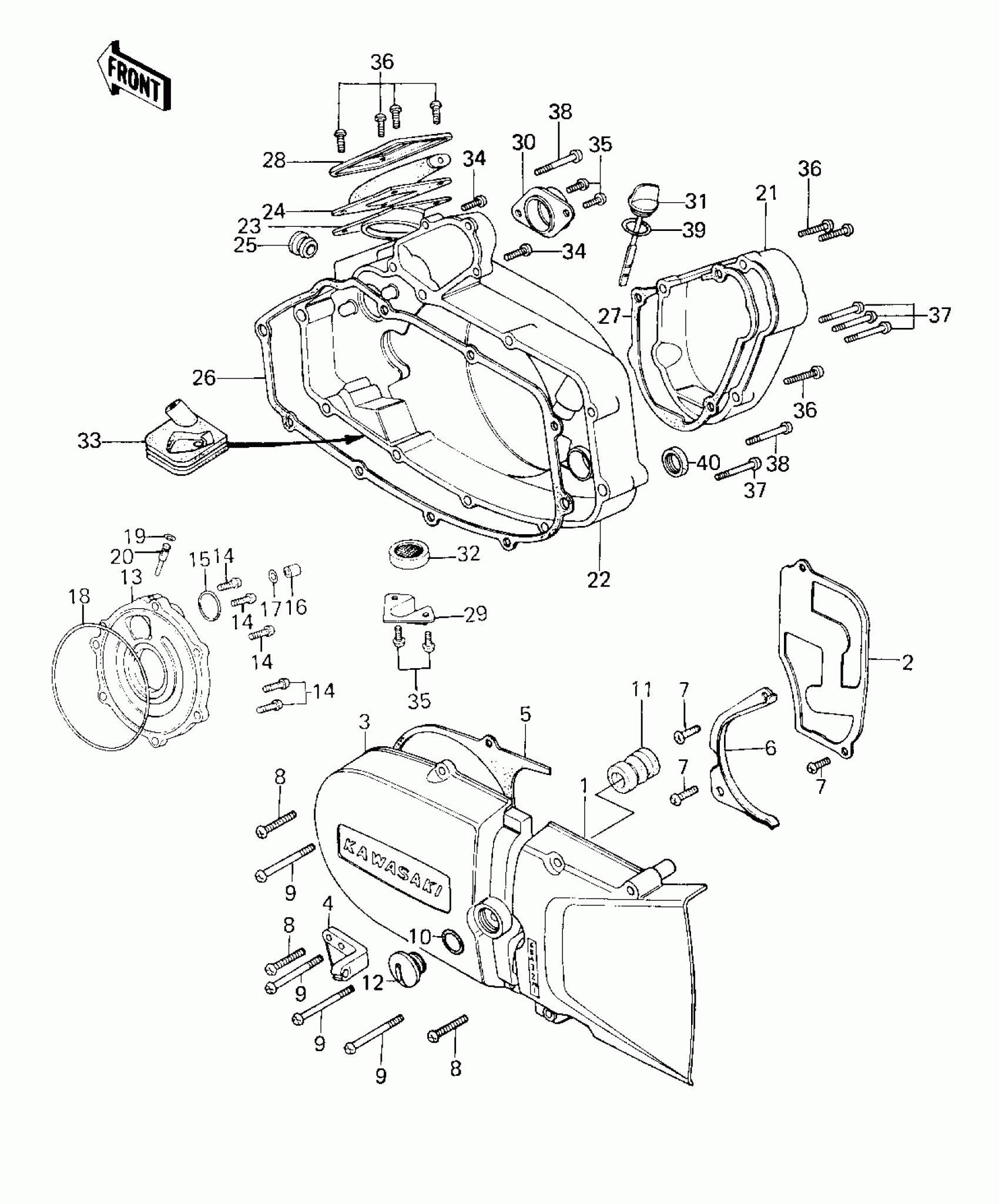

Kawasaki KE125 ENGINE COVERS ('80-81 A7/A8) Diagram
#
1
COVER,CHAIN
14026-1029
Unavailable
2
COVER,OIL PUMP
14030-060
Unavailable
3
COVER,MAGNETO,F.BLACK
14031-1053
Unavailable
4
HOLDER,WIRE GUIDE
14044-012
Unavailable
5
GASKET,L.H ENG COVER
14045-017
Unavailable
6
GUIDE,CHAIN
14077-003
Unavailable
7
SCREW PAN HEAD 6X12
220B0612
Unavailable
8
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
9
SCREW PAN HEAD 6X35
220B0635
Unavailable
10
O RING,16MM
670B2016
Unavailable
11
COLLAR
92027-207
Unavailable
12
PLUG,L.H ENG COVER
92067-017
Unavailable
13
COVER,ROTARY DISC
14019-055
Unavailable
14
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
15
"O" RING,28MM
670B3028
Unavailable
16
PIN,DOWEL,8X16
92042-017
Unavailable
17
RING-O,7.8X3.5
92055-029
Unavailable
18
"O" RING,VALVE COVER
92055-057
Unavailable
19
"O" RING
92055-080
Unavailable
20
NOZZLE
92062-012
Unavailable
21
COVER,CARBURETOR
14030-1013
Unavailable
22
COVER,CLUTCH
14032-1035
Unavailable
23
CAP,CARBURETOR
14038-039
Unavailable
24
CAP,CARBURETOR
14038-040
Unavailable
25
CAP,RUBBER
14039-001
Unavailable
26
GASKET,R.H ENG COVER
14046-029
Unavailable
27
GASKET,CARBURETOR COV
11009-1277
Unavailable
28
HOLDER,CARBRETOR CAP
14065-007
Unavailable
29
COVER,FUEL DRAIN
14076-006
Unavailable
30
HOLDER,CARBURETOR
16065-033
Unavailable
31
PLUG,OIL FILLER
16115-020
Unavailable
32
PLUG,25X12
16116-006
Unavailable
33
GROMMET,OVERFLOW
16136-009
Unavailable
34
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
35
SCREW PAN HEAD 6X12
220B0612
Unavailable
36
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
37
SCREW PAN HEAD 6X30
220B0630
Unavailable
38
SCREW PAN HEAD 6X45
220B0645
Unavailable
39
O RING,20MM
670B2020
Unavailable
40
SEAL-OIL,SB16244
92049-002
Unavailable
