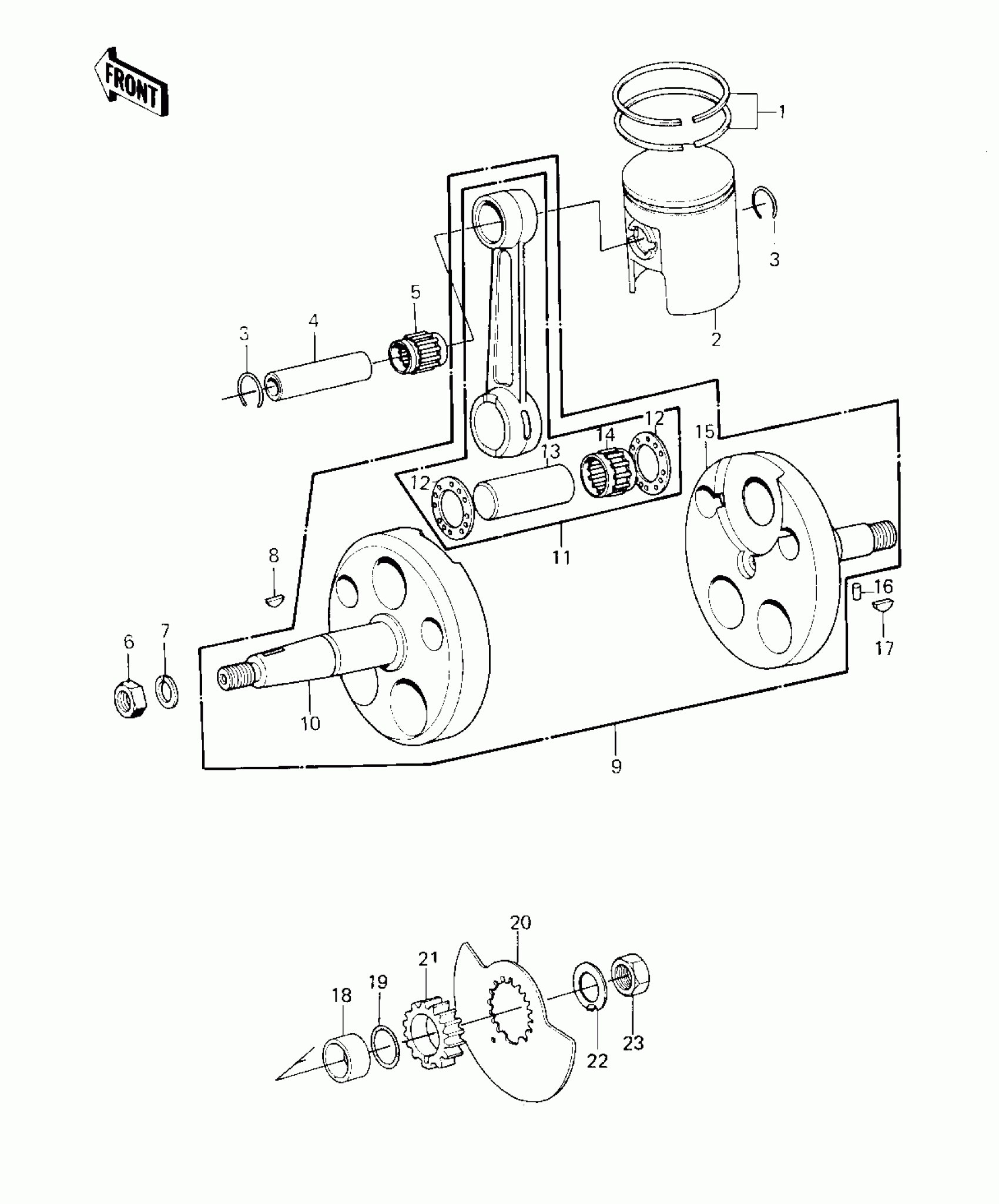

Kawasaki KE125 CRANKSHAFT/PISTON/ROTARY VALVE ('80-'81 Diagram

#

Description

Price

1

RING-SET,PISTON,S.T.D

13008-5010

Unavailable

2

PISTON-ENGINE,STD

13001-1124

Unavailable

3

RING-SNAP,PISTON PIN

92036-003

Unavailable

4

PIN-PISTON

13002-1002

Unavailable

5

BRG,N,UR14/20AP-1

13033-035

Unavailable

6

NUT-HEX-FINE,10MM

314B1000

Unavailable

7

WASHER SPRING 10MM

461F1000

Unavailable

8

KEY-WOODRUFF

510A3200

Unavailable

9

CRANK AND CONROD ASSY

13031-1003

Unavailable

10

CRANKSHAFT,L.H

13037-059

Unavailable

11

CONNECTING ROD SET

13044-5003

Unavailable

12

SHIM,20X34.5X1.0

92025-005

Unavailable

13

CRANK PIN

13035-033

Unavailable

14

BRG,NEEDLE,KT202715EG

13034-1001

Unavailable

15

CRANKSHAFT,R.H.

13037-1084

Unavailable

16

ROLLER,4X10

610A0410

Unavailable

17

KEY,WOODRUFF

92038-003

Unavailable

18

COLLAR,20X25X12.5

92027-1077

Unavailable

19

O RING,16MM

670B2016

Unavailable

20

VALVE,ROTARY DISC

12002-029

Unavailable

21

COLLAR,ROTARY DISC

92027-1272

Unavailable

22

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable

23

NUT,12MM

92015-006

Unavailable
