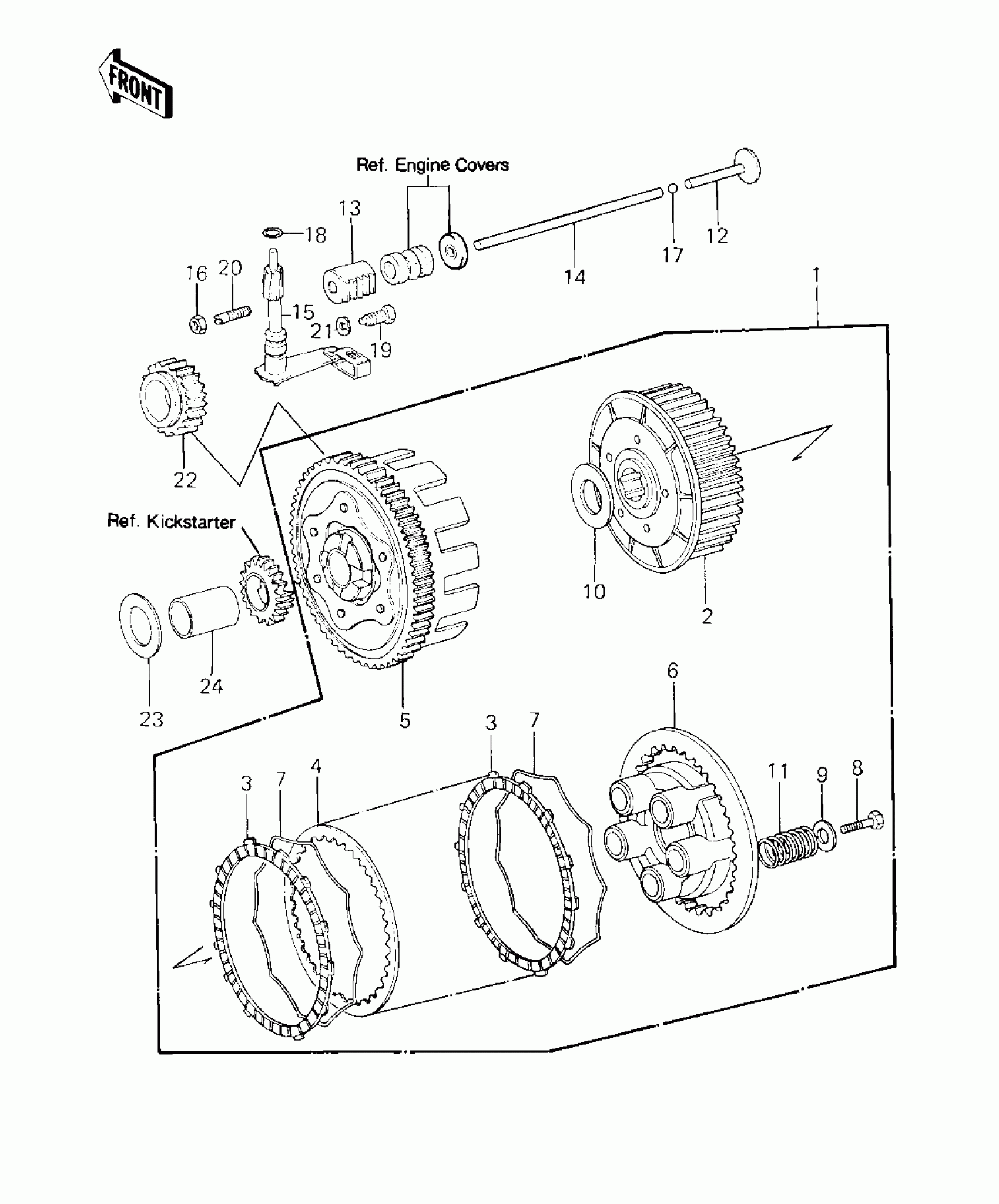

Kawasaki KE125 CLUTCH ('80-'81 A7/A8) Diagram
#
Description
Price
1
CLUTCH-ASSY
13081-1053
Unavailable
2
CLUTCH-ASSY
13081-1053
Unavailable
2
HUB,CLUTCH
13087-038
Unavailable
3
PLATE-FRICTION
13088-1015
Unavailable
4
PLATE CLUTCH STEEL
13089-003
Unavailable
5
HOUSING CLUTCH
13095-1034
Unavailable
5
HOUSING CLUTCH
13095-1034
Unavailable
6
PLATE-CLUTCH SPRING
13187-004
Unavailable
7
RING-CLUTCH STEEL
13229-002
Unavailable
8
BOLT,5X18
92003-078
Unavailable
9
WASHER-PLAIN,5MM
92022-167
Unavailable
10
WASHER,17.3X30X1.4
92022-270
Unavailable
11
SPRING,CLUTCH
92081-123
Unavailable
12
PUSHER-CLTCH SPRG PLT
13116-016
Unavailable
13
ROD,CLTCH RELESE PUSH
13116-026
Unavailable
14
ROD,CLUTCH PUSH,LONG
13116-027
Unavailable
15
SHAFT ASY,CLTCH RELES
13234-003
Unavailable
16
NUT 6MM
311B0600
Unavailable
17
BALL-STEEL,7/32"
600A0700
Unavailable
18
O RING,10MM
670B2010
Unavailable
19
BOLT,CLUTCH RELEASE
92003-130
Unavailable
20
SCREW,SLOTTED,6X26
92014-015
Unavailable
21
WASHER,LOCK
92031-009
Unavailable
22
GEAR,PRIMARY 22T
13097-1040
Unavailable
22
GEAR,PRIMARY 22T
13097-1040
Unavailable
23
WASHER,17.3X30X1.4
92022-270
Unavailable
24
BUSHING,CLUTCH
92028-138
Unavailable
