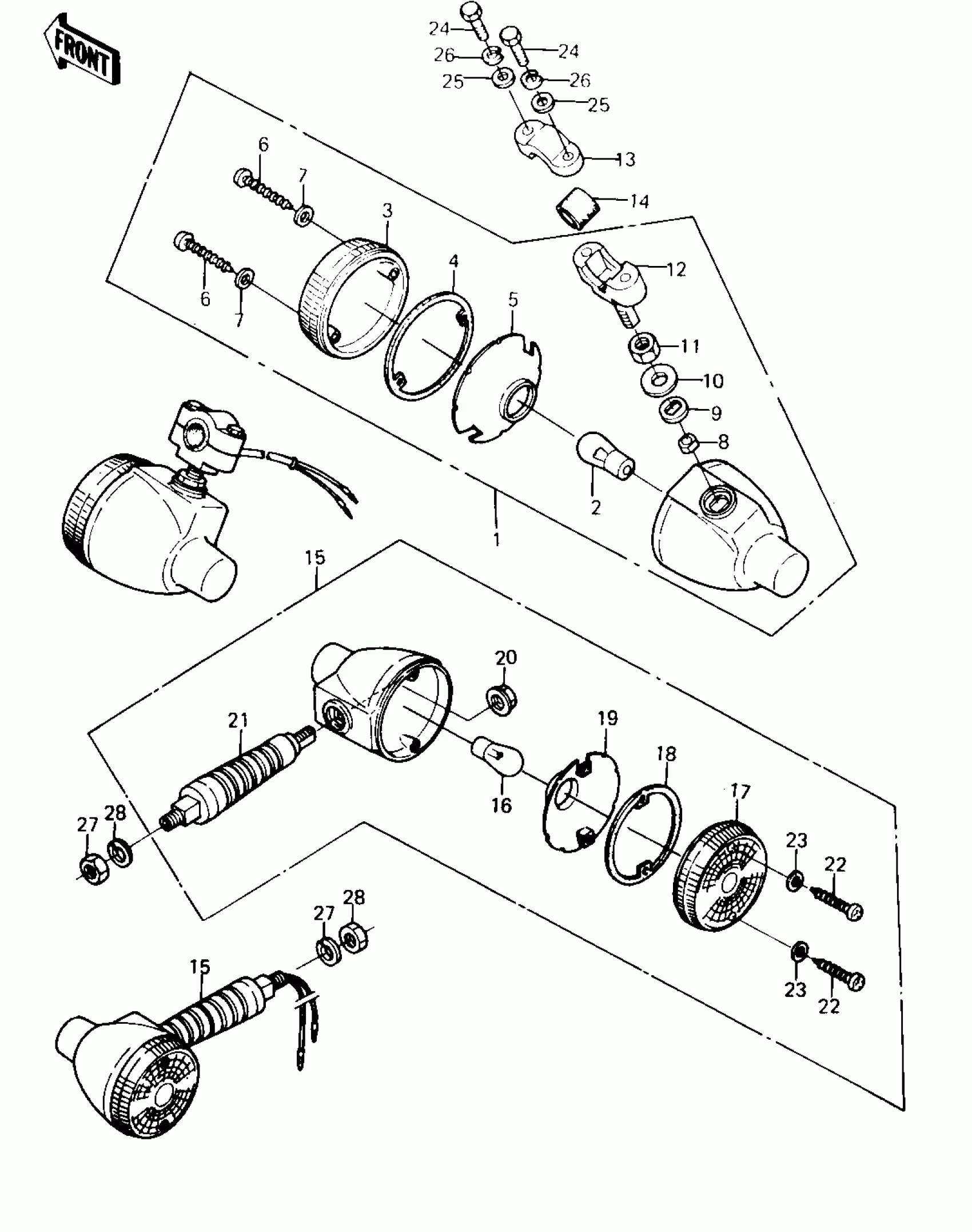

Kawasaki KE100 TURN SIGNALS (KE100-A10) Diagram
#
Description
Price
1
LAMP-ASSY-SIGNAL,FR
23037-1039
$90.08
2
BULB,6V 21CP
92069-056
Unavailable
3
LENS-SIGNAL LAMP
23048-1076
$9.75
4
GASKET,TURN SIGNAL LAMP LENS
11009-1128
$5.54
5
REFLECTOR,SIGNAL LAMP
23035-1003
$14.34
6
SCREW,TAPPING,4X30
92009-1056
$4.38
7
WASHER,PLAIN,4MM
23058-002
$2.49
8
COLLAR,FR SIGNAL LAMP
92027-1182
$4.86
9
GASKET,S LAMP BRACKET
11009-1133
Unavailable
10
WASHER,10.5X24X1.6
92022-1137
$4.38
11
NUT,SGNL LAMP BRACKET
92015-1073
$4.95
12
BRACKET,F SIGNAL LAMP
23051-1028
Unavailable
13
BRACKET-SIGNAL LAMP
23051-1018
Unavailable
14
DAMPER
23066-003
$7.71
15
LAMP-ASSY-SIGNAL,RR
23037-1087
$69.77
16
BULB,6V 21CP
92069-056
Unavailable
17
LENS-SIGNAL LAMP
23048-1076
$9.75
18
GASKET,TURN SIGNAL LAMP LENS
11009-1128
$5.54
19
REFLECTOR,SIGNAL LAMP
23035-1003
$14.34
20
NUT,SIGNAL LAMP
92015-1072
$3.51
21
BRACKET,SIGNAL LAMP
23051-1033
Unavailable
22
SCREW,TAPPING,4X30
92009-1056
$4.38
23
WASHER,PLAIN,4MM
23058-002
$2.49
24
BOLT,HEX HEAD,5X30
110B0530A
$2.98
25
WASHER-PLAIN,5MM
411B0500
$0.46
26
WASHER SPRING 5MM
461F0500
$0.69
27
NUT-HEX-FINE,10MM
315B1000
$0.58
28
WASHER SPRING 10MM
461F1000
$0.67
