Description

Price

1

SHAFT-TRANSMISSION INPUT

13127-1017

Unavailable

2

GEAR,INPUT 2ND&3RD,17T&20T

13129-1138

Unavailable

3

GEAR,INPUT 4TH,22T

13129-1139

$68.03

4

GEAR,INPUT TOP,28T

13129-1146

$68.03

5

GEAR-SPUR,KICKSTARTER PINION

13075-004

$52.38

6

BALL-STEEL,7/32"

600A0700

$1.64

7

GEAR-SPUR,KICKSTARTER.IDLE,30T

13073-004

$74.27

8

WASHER,THRUST

92022-115

$4.39

9

WASHER,18.3X22X0.5

92022-271

$5.52

10

RING-SNAP,16MM

92033-014

$5.17

11

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

11

BOLT,8X16

92001-1368

$4.76

12

SHAFT-TRANSMISSION OUTPUT

13128-021

Unavailable

13

GEAR,OUTPUT LOW,35T

13129-010

$87.77

14

GEAR,OUTPUT 2ND,30T

13129-1642

Unavailable

15

GEAR,OUTPUT 3RD,26T

13129-1148

$74.27

16

GEAR,OUTPUT TOP,26T

13129-1149

$87.77

17

GEAR,OUTPUT 4TH,24T

13129-1708

$92.35

18

SPROCKET-OUTPUT,15T

13144-054

$51.02

18

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

18

ENGINE SPROCKET,13T

13144-053

Unavailable

19

WASHER,THRUST,18.5X23X1.6

92022-146

$8.21

20

WASHER,T=2.3

92022-266

$5.23

21

WASHER,TOOTHED,18.5X23X1.2

92024-030

$6.15

22

COLLAR,ENGINE SPROCKET,L=13.7

92027-1595

$18.83

23

WASHER,CLAW,8X22X1.2

92030-012

$5.23

24

RING-SNAP,16MM

92033-014

$5.17

25

RING-O,17.5X1.5

92055-022

$6.22

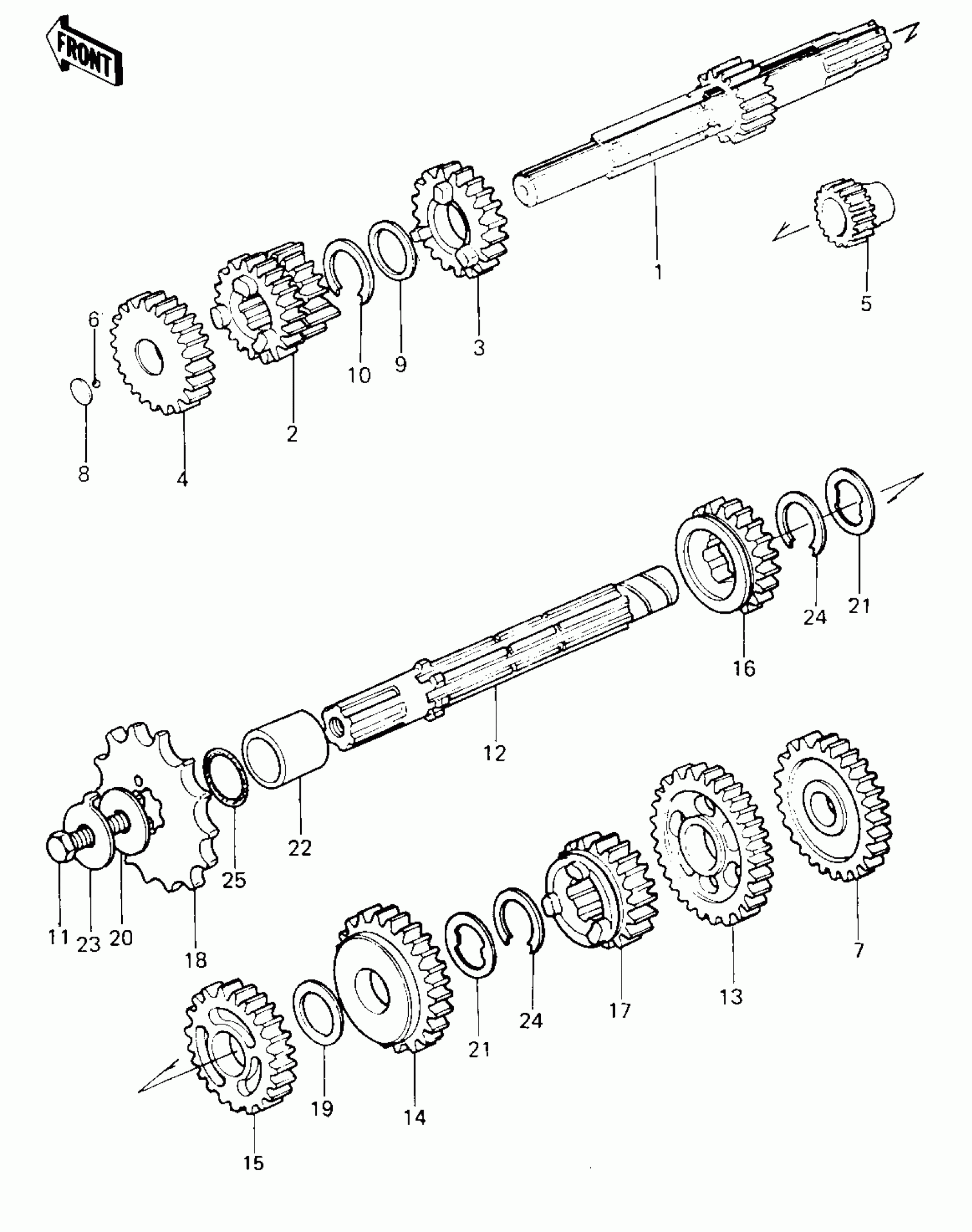

Kawasaki KE100 TRANSMISSION (KE100-A9/A10) Diagram

SHAFT-TRANSMISSION INPUT

GEAR,INPUT 2ND&3RD,17T&20T

GEAR,INPUT 4TH,22T

GEAR,INPUT TOP,28T

GEAR-SPUR,KICKSTARTER PINION

BALL-STEEL,7/32"

GEAR-SPUR,KICKSTARTER.IDLE,30T

WASHER,THRUST

WASHER,18.3X22X0.5

RING-SNAP,16MM

BOLT-SMALL-UPSET,8X16

BOLT,8X16

SHAFT-TRANSMISSION OUTPUT

GEAR,OUTPUT LOW,35T

GEAR,OUTPUT 2ND,30T

GEAR,OUTPUT 3RD,26T

GEAR,OUTPUT TOP,26T

GEAR,OUTPUT 4TH,24T

SPROCKET-OUTPUT,15T

SPROCKET-OUTPUT,14T

ENGINE SPROCKET,13T

WASHER,THRUST,18.5X23X1.6

WASHER,T=2.3

WASHER,TOOTHED,18.5X23X1.2

COLLAR,ENGINE SPROCKET,L=13.7

WASHER,CLAW,8X22X1.2

RING-SNAP,16MM

RING-O,17.5X1.5
