Description

Price

1

LAMP ASSY,TAIL,BLACK

23024-069-21

$136.01

2

SCREW-PAN HEAD,4X35

220E0435A

$8.56

3

LENS-TAIL LAMP

23026-023

$131.51

4

BULB,6V 32/3CP

92069-074

$5.75

5

GASKET-TAIL LAMP LENS

23028-018

Unavailable

6

CASE,TAIL LAMP

23027-030

Unavailable

7

BKT-LICENSE PLT.BLACK

23036-019-21

$90.72

8

DAMPER RUBBER

92075-076

$4.78

9

COLLAR,6.8X10X8.5

92027-129

$5.00

10

WASHER,6.5X20X1.6

92022-125

$1.40

11

BOLT 6X22

112B0622

$3.48

12

GROMMET,10MM

92071-019

$3.89

13

BOLT-UPSET

112G0630

$1.36

14

WASHER,6.5X20X1.6

92022-125

$1.40

15

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

16

NUT 6MM

311B0600

$0.93

17

BRACKET-REFLECTOR

28013-005

$20.33

18

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

19

WASHER SPRING 5MM

461F0500

$0.69

20

NUT-CAP,5MM

322N0500

$2.85

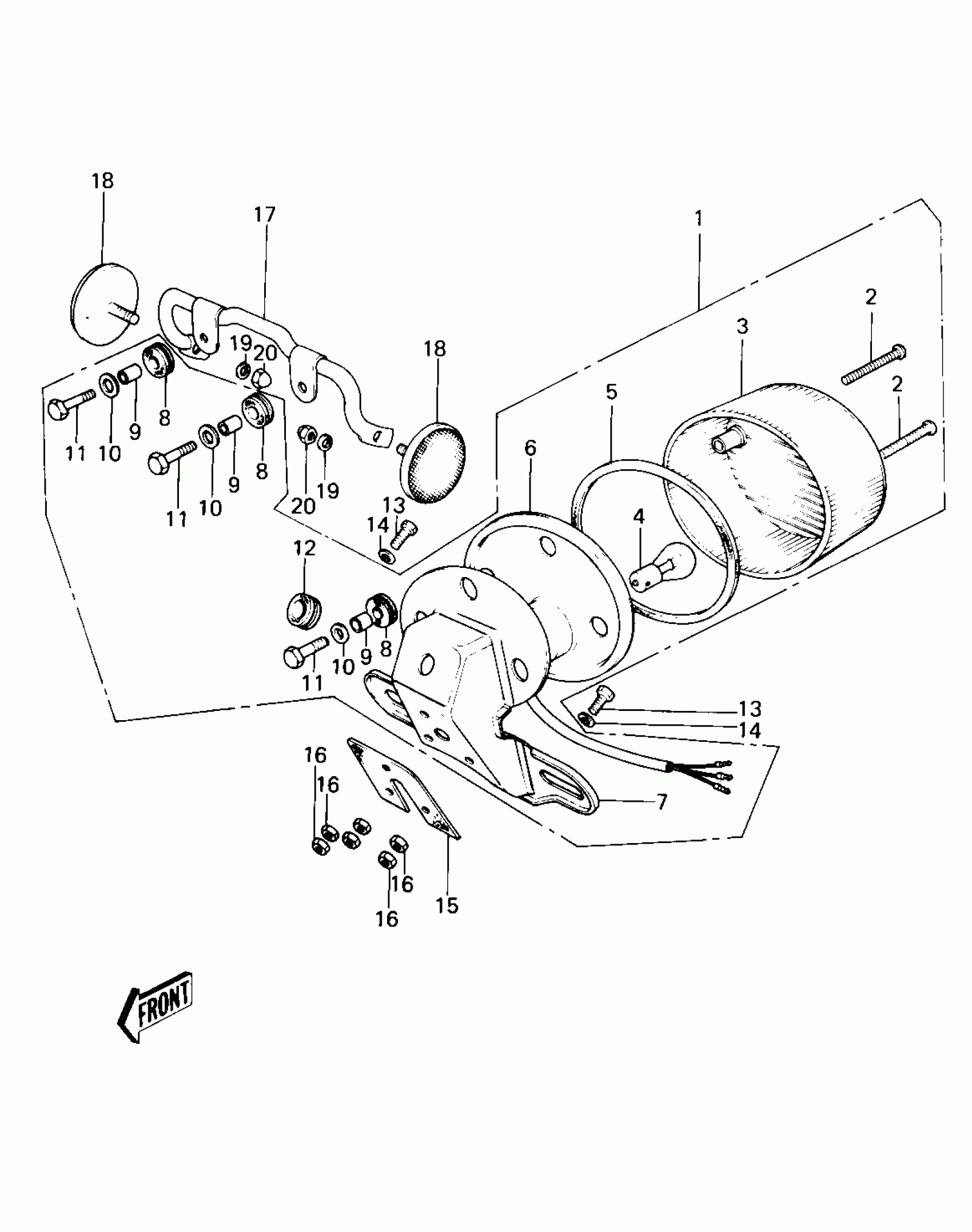

Kawasaki KE100 TAILLIGHT Diagram

LAMP ASSY,TAIL,BLACK

SCREW-PAN HEAD,4X35

LENS-TAIL LAMP

BULB,6V 32/3CP

GASKET-TAIL LAMP LENS

CASE,TAIL LAMP

BKT-LICENSE PLT.BLACK

DAMPER RUBBER

COLLAR,6.8X10X8.5

WASHER,6.5X20X1.6

BOLT 6X22

GROMMET,10MM

BOLT-UPSET

WASHER,6.5X20X1.6

DAMPER-TAIL LAMP SHCK

NUT 6MM

BRACKET-REFLECTOR

REFLECTOR-REFLEX,REAR

WASHER SPRING 5MM

NUT-CAP,5MM
