Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1078

$7.55

23025

LAMP-TAIL

23025-1032

Unavailable

23026

LENS,TAIL LAMP

23026-1003

$56.61

23027

BODY-COMP-TAIL LAMP

23027-1020

$94.43

23036

BRACKET-TAIL LAMP

23036-1010

Unavailable

92001

BOLT

92001-1768

Unavailable

92002

BOLT,6X28

92002-1125

$5.24

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022A

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,6.8X10X14.5

92027-156

$5.00

92027A

COLLAR,6.1X8X15.7

92027-1819

$4.32

92069

BULB,6V 32/3CP

92069-074

$5.75

92075

DAMPER,TAIL LAMP

92075-1004

$4.03

92075A

DAMPER,TAIL LAMP

92075-1005

Unavailable

92075B

DAMPER,TAIL LAMP

92075-1094

Unavailable

92075C

DAMPER

92075-1095

$4.04

92075D

DAMPER,RUBBER

92075-310

$4.67

112

BOLT-UPSET,6X25

112B0625

Unavailable

220

SCREW-PAN-CROS

220B0440

$3.41

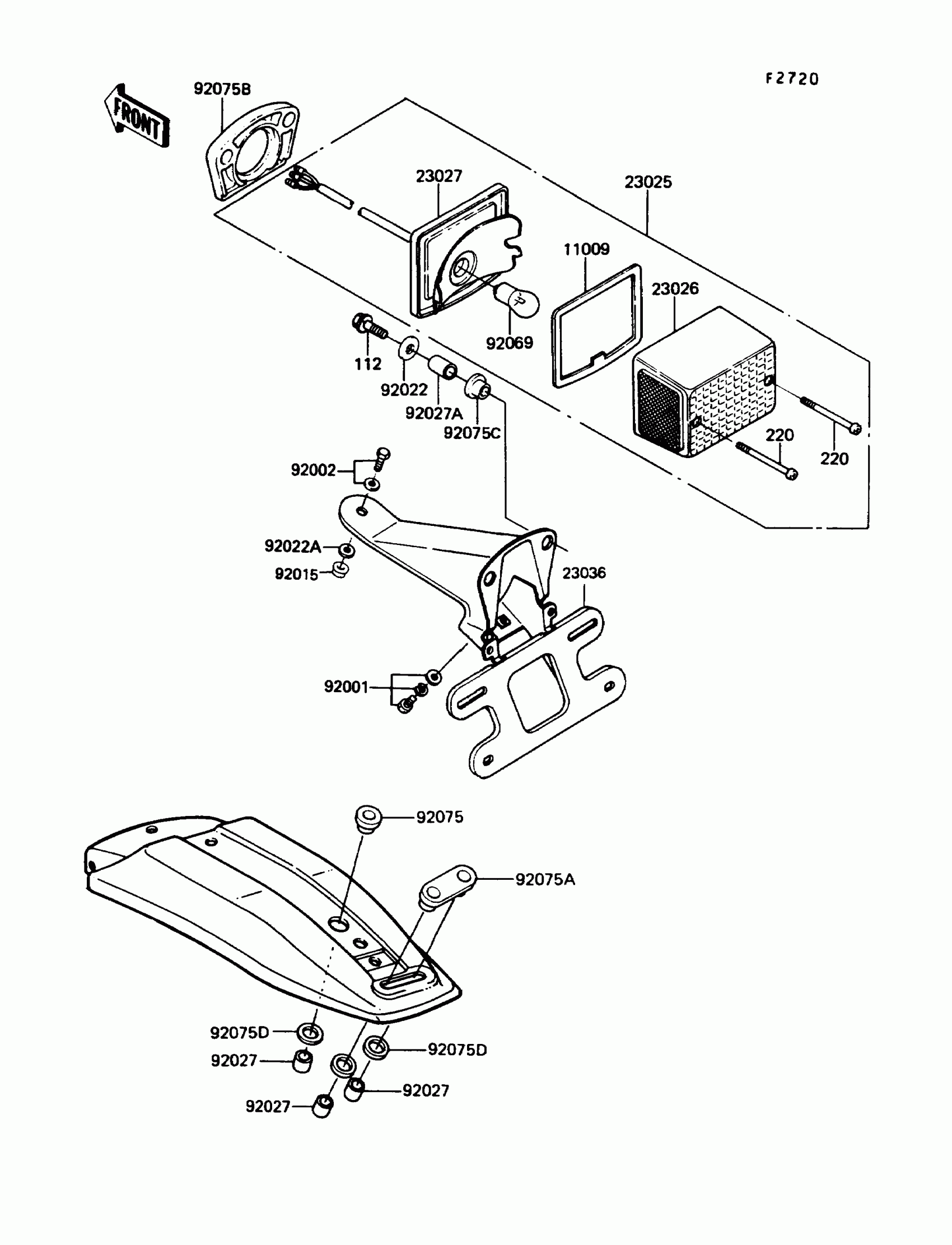

Kawasaki KE100 Tail Lamp Diagram

GASKET,TAIL LAMP LENS

LAMP-TAIL

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

BRACKET-TAIL LAMP

BOLT

BOLT,6X28

NUT,FLANGED,6MM

WASHER,6.5X20X1.6

WASHER,6.5X20X1.6

COLLAR,6.8X10X14.5

COLLAR,6.1X8X15.7

BULB,6V 32/3CP

DAMPER,TAIL LAMP

DAMPER,TAIL LAMP

DAMPER,TAIL LAMP

DAMPER

DAMPER,RUBBER

BOLT-UPSET,6X25

SCREW-PAN-CROS
