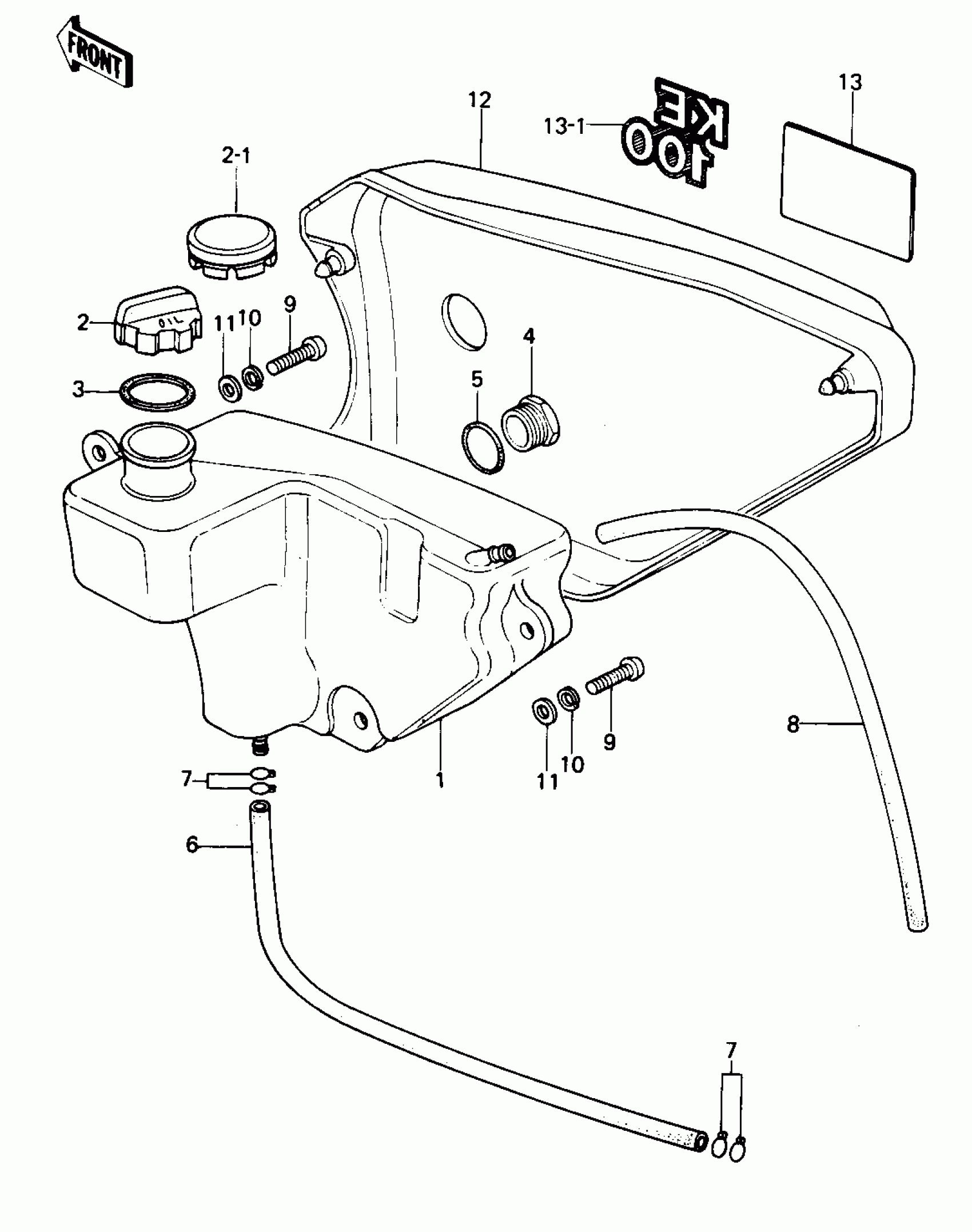

Kawasaki KE100 SIDE COVER/OIL TANK Diagram
#
Description
Price
1
TANK-OIL
52001-029
$67.67
1
TANK-OIL
52001-1003
$67.67
2
CAP-OIL TANK
52003-019
$10.60
2-1
CAP-TANK,OIL
51049-1004
$14.79
3
GASKET-OIL TANK CAP
92065-085
$5.80
4
GAUGE,OIL LEVEL
52015-002
$6.00
5
RING-O,20MM
92055-051
$5.59
6
TUBE,4.5X9X220
92059-073
$38.33
7
CLAMP,TUBE
92037-010
$3.92
8
TUBE-PVC,5X280
700Q05280
Unavailable
9
SCREW-PAN-CROS,6X16
220B0616
$2.84
10
WASHER SPRING 6MM
461F0600
$0.69
11
WASHER,6.5X20X1.6
92022-125
$1.40
12
COVER,RH SIDE,C.BLUE
36007-049-4C
$53.95
12
COVER,RH SIDE,C.COPPR
36007-049-4D
Unavailable
12
COVER,RH SIDE,P.RED
36007-049-4P
Unavailable
12
COVER,RH SIDE,P.GREEN
36007-049-4Q
$51.42
12
COVER,RH SIDE,C.C.BLU
36007-049-4S
$56.36
12
COVER,RH SIDE,S.F.YEL
36007-049-7H
$56.36
12
COVER,L.H SIDE,S.GREN
36001-1065-6P
$61.68
12
COVER,L.H SIDE,S.YELL
36001-1065-6R
$73.12
12
COVER,LH SIDE B GREEN (Canada)
36001-1065-6J
Unavailable
12
COVER,R.H.SIDE,F.RED
36001-1065-6L
$70.45
12
COVER,R.H.SIDE,B.BLUE
36001-1065-6K
$53.93
13
EMBLEM,SIDE COVER
56018-222
Unavailable
13-1
EMBLEM,SIDE COVER
56018-1038
Unavailable
